Microstructure and Hardness Distribution of Ductile Iron by PTA Cr-Ni-Mo-Cu Alloying

Hua Tang Cao; Xuan Pu Dong; Qi Wen Huang; Zhang Pan; Jian Jun Li; Zi Tian Fan

doi:10.4028/www.scientific.net/AMR.852.188

Paper Titles

The Residual Stress after High Frequency Induction Welding with Complex Shapes WC-Co Alloy and Steel
p.168

Characterization of Recycled Cemented Carbide and the Raw Materials
p.173

Interface Microstructure and Properties of 304 Austenite Stainless Steel/Low Carbon Steel Clad Plate by Casting and Hot Rolling Process
p.178

Thermodynamic Optimization Design of Casting Mg-Zn-Cu Alloy
p.183

Microstructure and Hardness Distribution of Ductile Iron by PTA Cr-Ni-Mo-Cu Alloying
p.188

First-Principle Study of Atomic Structures of Fe/TMC (TM=Ti, Zr and Hf) Interface
p.193

First-Principles Study of the Mechanical Properties of ScAl Microalloyed by 4d-Transition Metals
p.198

Investigation into the Post-Treatment Process for Titanium Alloy Space-Curve Meshing-Wheel
p.203

Influence of the Electric Current Pulse with Different Pulse Width on the Eutectoid Microstructure of Hypoeutectic Fe-C Alloys
p.208

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 852Microstructure and Hardness Distribution of...

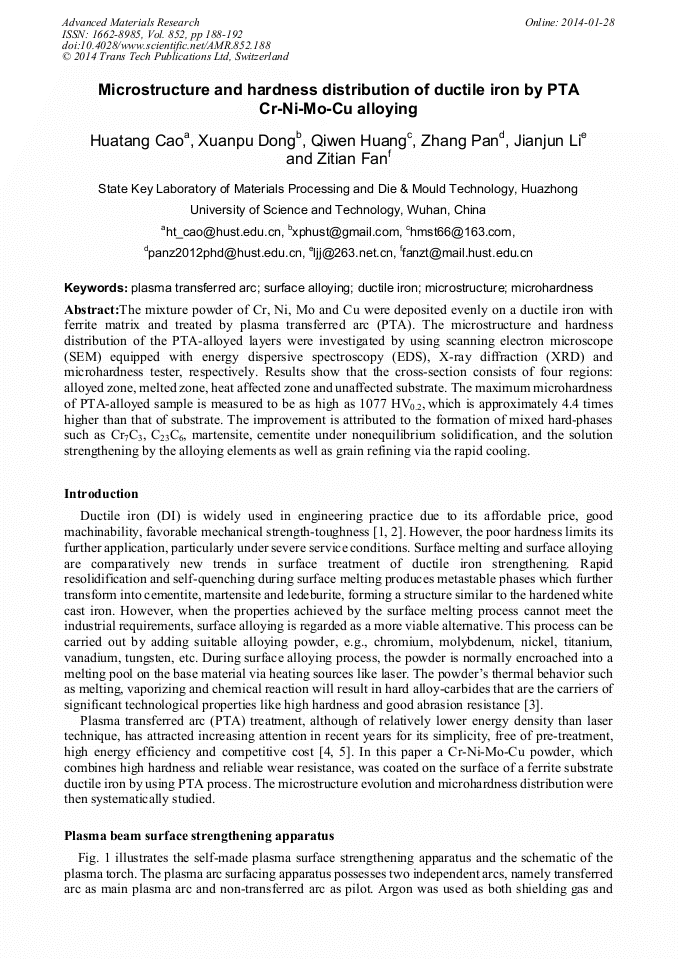

Microstructure and Hardness Distribution of Ductile Iron by PTA Cr-Ni-Mo-Cu Alloying

Abstract:

The mixture powder of Cr, Ni, Mo and Cu were deposited evenly on a ductile iron with ferrite matrix and treated by plasma transferred arc (PTA). The microstructure and hardness distribution of the PTA-alloyed layers were investigated by using scanning electron microscope (SEM) equipped with energy dispersive spectroscopy (EDS), X-ray diffraction (XRD) and microhardness tester, respectively. Results show that the cross-section consists of four regions: alloyed zone, melted zone, heat affected zone and unaffected substrate. The maximum microhardness of PTA-alloyed sample is measured to be as high as 1077 HV_0.2, which is approximately 4.4 times higher than that of substrate. The improvement is attributed to the formation of mixed hard-phases such as Cr₇C₃, C₂₃C₆, martensite, cementite under nonequilibrium solidification, and the solution strengthening by the alloying elements as well as grain refining via the rapid cooling.
