High-Performance Indium Oxide Thin Film Transistor with ITO Source/Drain Electrodes Fabricated by Reactive Sputtering

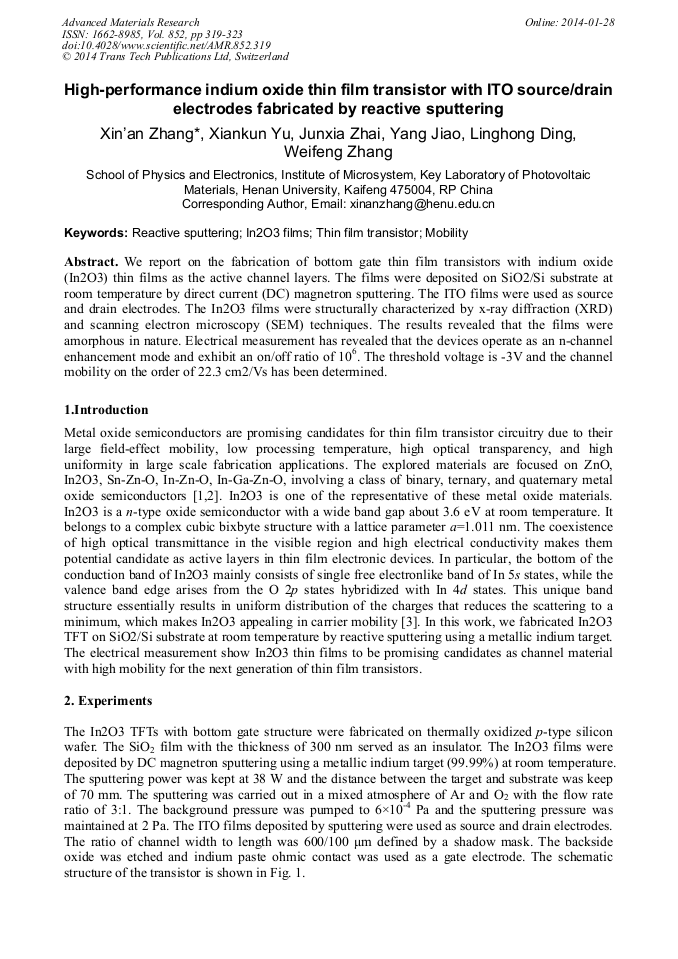

Article Preview

Abstract:

We report on the fabrication of bottom gate thin film transistors with indium oxide (In2O3) thin films as the active channel layers. The films were deposited on SiO2/Si substrate at room temperature by direct current (DC) magnetron sputtering. The ITO films were used as source and drain electrodes. The In2O3 films were structurally characterized by x-ray diffraction (XRD) and scanning electron microscopy (SEM) techniques. The results revealed that the films were amorphous in nature. Electrical measurement has revealed that the devices operate as an n-channel enhancement mode and exhibit an on/off ratio of 106. The threshold voltage is-3V and the channel mobility on the order of 22.3 cm2/Vs has been determined.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

319-323

Citation:

Online since:

January 2014

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] R. L. Hoffman, B. J. Norris, and J. F. Wager, Appl. Phys. Lett. 82, (2003) 733.

Google Scholar

[2] J. Jiang, Q. Wan, J. Sun and A. Lu, Appl. Phys. Lett. 95, (2009) 152144.

Google Scholar

[3] H.Z. Zhang, L.Y. Liang, A.H. Chen, Z.M. Liu, Z. Yu, H.T. Cao and Q. Wan, Appl. Phys. Lett. 97, (2010) 122108.

Google Scholar

[4] S. Hayamaizu, H. Tabata, H. Tanka and T. Kawai, J. Appl. Phys. 80, (1996) 787.

Google Scholar

[5] H. H. Hsieh, and Ch. Ch. Wu, Appl. Phys. Lett. 89, (2006) 041109.

Google Scholar

[6] R. Martins, P. Barquinha, I. Ferreira, J. Appl. Phys., 101, (2007) 044505.

Google Scholar
