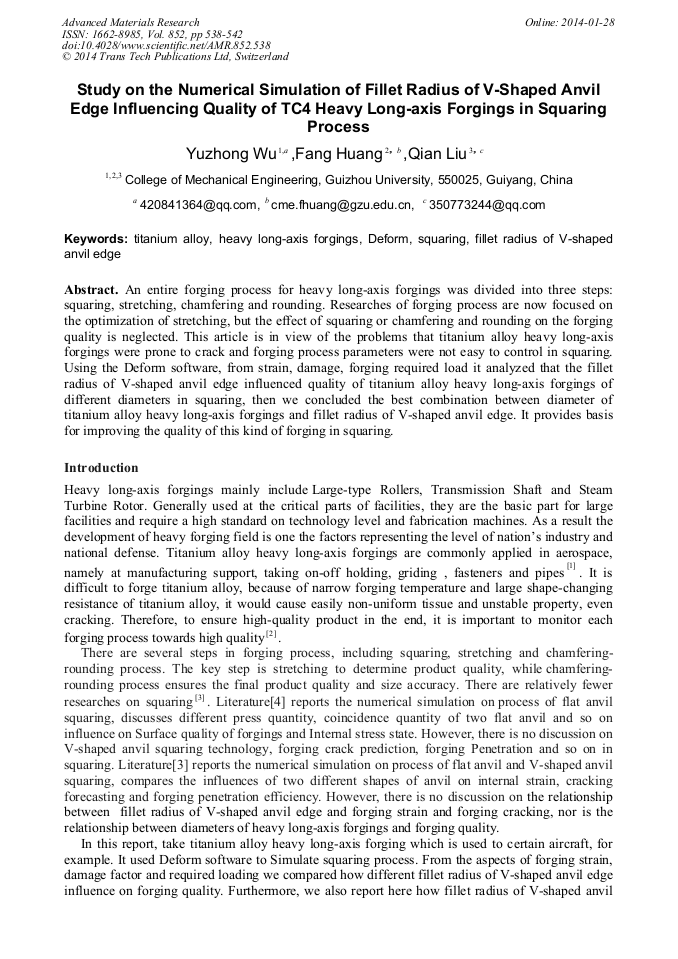

Study on the Numerical Simulation of Fillet Radius of V-Shaped Anvil Edge Influencing Quality of TC4 Heavy Long-Axis Forgings in Squaring Process

Abstract:

An entire forging process for heavy long-axis forgings was divided into three steps：squaring, stretching, chamfering and rounding. Researches of forging process are now focused on the optimization of stretching, but the effect of squaring or chamfering and rounding on the forging quality is neglected. This article is in view of the problems that titanium alloy heavy long-axis forgings were prone to crack and forging process parameters were not easy to control in squaring. Using the Deform software, from strain, damage, forging required load it analyzed that the fillet radius of V-shaped anvil edge influenced quality of titanium alloy heavy long-axis forgings of different diameters in squaring, then we concluded the best combination between diameter of titanium alloy heavy long-axis forgings and fillet radius of V-shaped anvil edge. It provides basis for improving the quality of this kind of forging in squaring.

• Periodical: Advanced Materials Research (Volume 852)
• Pages: 538-542
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.852.538
• Online since: January 2014
• Authors: Yu Zhong Wu, Fang Huang, Qian Liu
• Keywords: DEFORM, Fillet Radius of V-Shaped Anvil Edge, Heavy Long-Axis Forgings, Squaring, Titanium Alloy

References

[1] Jiegang Zhang: Nanjing University of Aeronautics and Astronautics. (2007).

[2] Sihai Xu, Ping Jiang and Zaiwen Qu: Heavy Casting And Forging. 31-32(2007).

[3] Qinxiang Xia, Huixing Shan and Yulin Huo: Die And Mould Industry. 1-5(2010).

[4] Qinxiang Xia, Huixing Shan and Yulin Huo: Forging And Technology Stamping. 17-21(2010).

[5] Qiang Fu: Shanghai Jiao Tong University. (2008).

[6] Zhupai Liu and Jiwu Zhu: Journal of Mechanical Engineering. 83-86(1994).

[7] Cho J R: Journal of Materials processing Technology. 161-165(1998).
