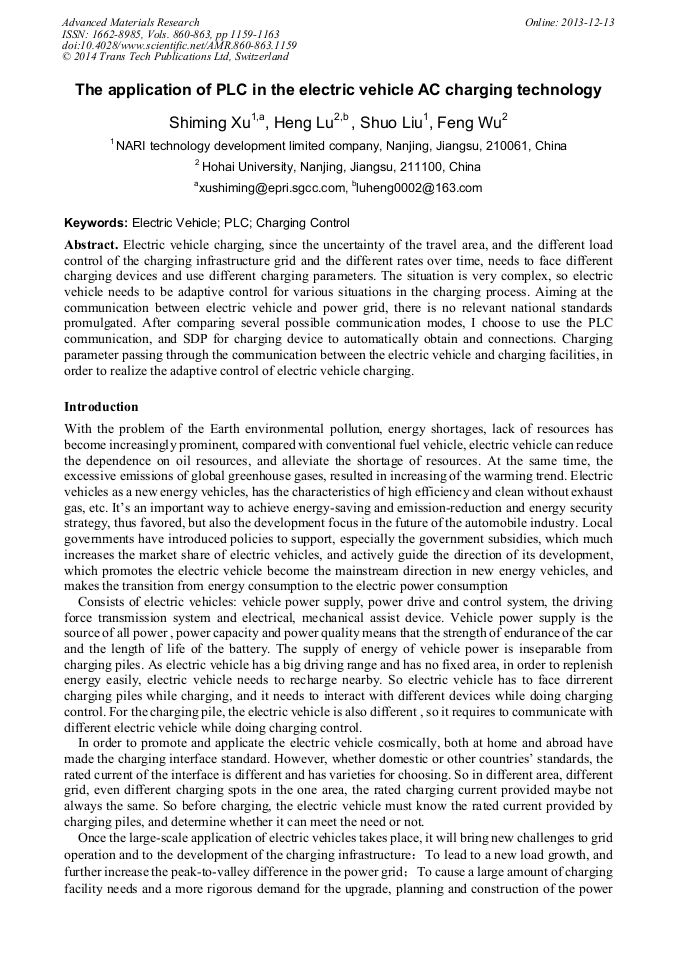

The Application of PLC in the Electric Vehicle AC Charging Technology

Abstract:

Electric vehicle charging, since the uncertainty of the travel area, and the different load control of the charging infrastructure grid and the different rates over time, needs to face different charging devices and use different charging parameters. The situation is very complex, so electric vehicle needs to be adaptive control for various situations in the charging process. Aiming at the communication between electric vehicle and power grid, there is no relevant national standards promulgated. After comparing several possible communication modes, I choose to use the PLC communication, and SDP for charging device to automatically obtain and connections. Charging parameter passing through the communication between the electric vehicle and charging facilities, in order to realize the adaptive control of electric vehicle charging.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 1159-1163
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.1159
• Online since: December 2013
• Authors: Shi Ming Xu, Heng Lu*, Shuo Liu, Feng Wu
• Keywords: Charging Control, Electric Vehicle (EV), PLC

References

[1] 2 GB/T 27930-2011. Communication protocol between non-vehicle conductive charger and battery management system of the electric vehicles, (2012).

[2] IEC62196 Plugs，Socket Outlets, Vehicle Couplers and Vehicle Inlets-Conductive Charging of Electric Vehicles ，(2003).

DOI: 10.3403/pdiects62196

[3] Jia Junguo, Ni Feng. Discussion on Standardization of electric vehicle charging interface. Power system automation, 2011，35(8)：76～80.

[4] Qi Shuqing. Power Line Communication (PLC) technology and applications. Beijing: China Power Press, (2005).

[5] Lv Xiaorong, Geng Qunfeng. Application analysis of broadband PLC communication technology in AC charging of the electric vehicle. Conference China, (2012).

[6] SAE J1772-2010. Electric Vehicle and Plug in Hybrid Electric Vehicle Conductive Charge Coupler[S]. (2010).

DOI: 10.4271/j1772_201602

[7] Gao Ciwei, Zhang Liang. A survey of influence of electrics vehicle charging on power grid[J]. Power System Technology, 2011, 32(2), pp.127-131(in Chinese).

[8] IEC 61851-1: 2010 Electric Vehicle Conductive Charging System- Part 1: General Requirements, (2010).

[9] Qi Jiajin, Chen Xueping, Liu Xiaosheng. Research progress of the low voltage power line carrier communication technology. Power system technology, 2010，34(5)：161～172.

[10] Sekyung Han, Soohee Han, Kaoru Sezaki. Estimation of achievable power capacity from plug-in electric vehicles for V2G frequency regulation case studies for market participation. IEEE Transactions on Smart Grid, 2011， 2(4)：632～641.

DOI: 10.1109/tsg.2011.2160299
