Numerical Simulation of Condenser Combining with Low-Pressure Exhaust Hood and Condenser Throat

Abstract:

In order to obtain the more real condition of the flow field at condenser, the commercial software FLUENT is used to simulate the flow field of the condenser tube bundle area, alone or coupling with the low-pressure exhaust hood and condenser throat. The analysis indicates that the calculation result of combined model is different from the single calculation result of condenser tube bundle area. The flow field of condenser tube bundle area is strongly influenced by low-pressure exhaust hood, the frustums diffuse-angle, the low-pressure heater and the injection of the exhaust steam from the small turbine. The uneven velocity distribution at the outlet of the throat has great influence on the heat exchange of condenser tube. Combined numerical simulation gives more reasonable result.

You might also be interested in these eBooks

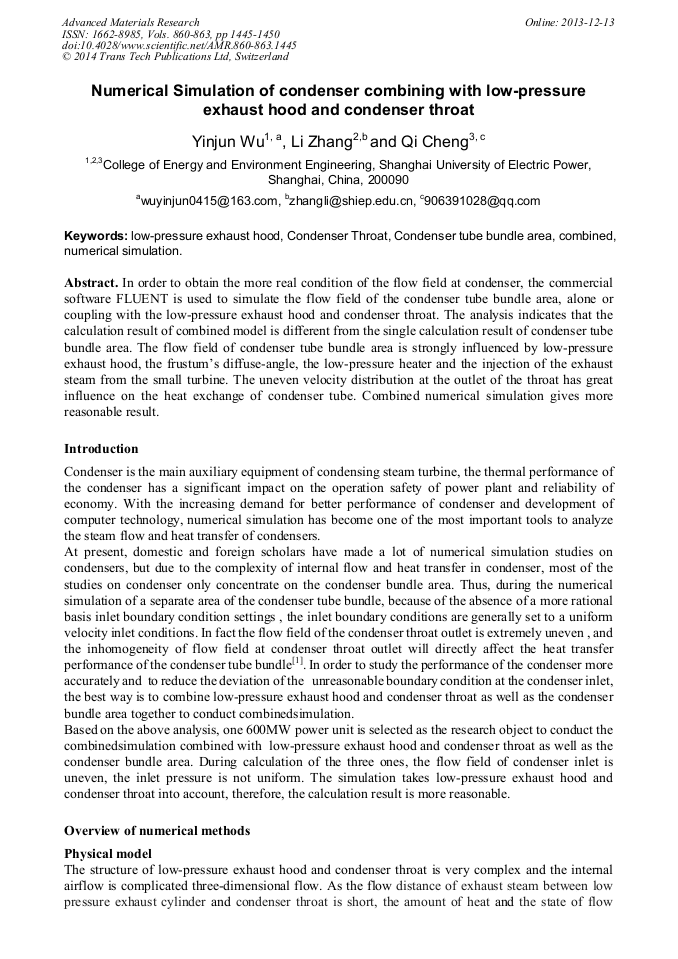

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 860-863)

Pages:

1445-1450

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.860-863.1445

Citation:

Cite this paper

Online since:

December 2013

Authors:

Yin Jun Wu*, Li Zhang, Qi Cheng

Keywords:

Combined, Condenser Throat, Condenser Tube Bundle Area, Low-Pressure Exhaust Hood, Numerical Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Zhuocheng Zhang. Condenser of Large-scale Power Plant. China Mechanical Press. 1993. 32~36, 248~254. (In Chinese).

Google Scholar

[2] Wenjuan Yang. Three-dimensional Numerical Simulation and Analysis of one 300MW unit condenser. Journal of Power Engineering. 2005, 25(2). ( In Chinese).

Google Scholar

[3] Mingyuan Zhang, Sirui Jing, Guojun Li. Advanced Engineering Fluid Mechanics. [M] Press of Xi'an Jiao Tong University. 2006. (In Chinese).

Google Scholar

[4] Lanxin Zhou, Zhumiao Xing, Su-min Chen. Journal of North China Electric Power University 2009, 36(3): 72-75. (In Chinese).

Google Scholar

[5] Guoshan Wang. Numerical simulation and Application of Thermal performance of Condenser of Power Plant. Press of China Electric Power, 2010: 97~100. (In Chinese).

Google Scholar

[6] Kuifang Wan. Numerical and Experimental study on the Flow field of Condenser inlet. [D]. [Master thesis]. Baoding: North China University of Electric Power, 2004. (In Chinese).

Google Scholar
