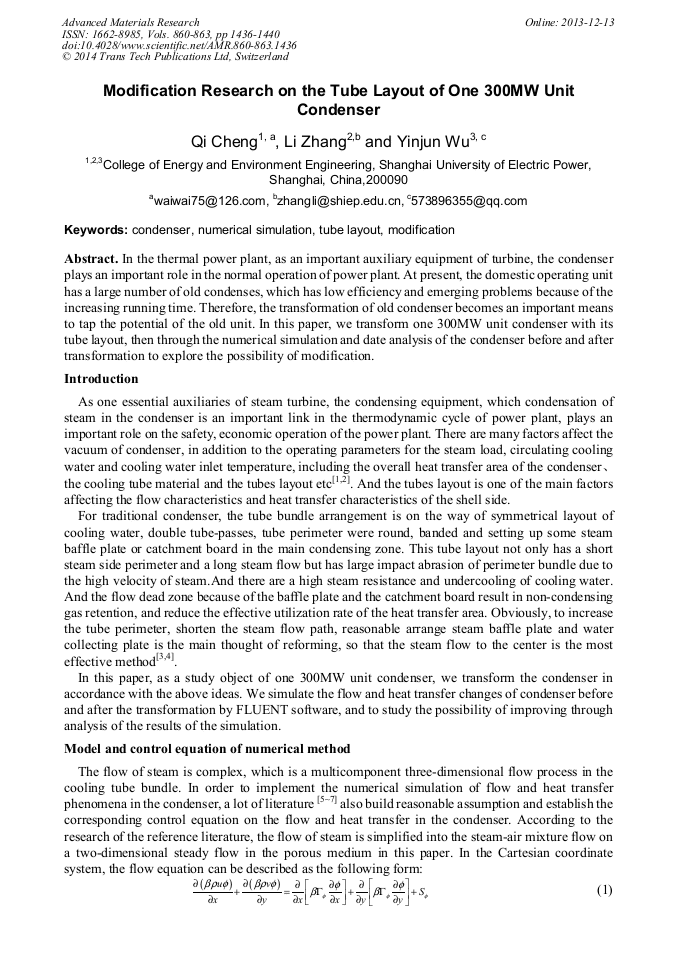

Modification Research on the Tube Layout of One 300MW Unit Condenser

Abstract:

In the thermal power plant, as an important auxiliary equipment of turbine, the condenser plays an important role in the normal operation of power plant. At present, the domestic operating unit has a large number of old condenses, which has low efficiency and emerging problems because of the increasing running time. Therefore, the transformation of old condenser becomes an important means to tap the potential of the old unit. In this paper, we transform one 300MW unit condenser with its tube layout, then through the numerical simulation and date analysis of the condenser before and after transformation to explore the possibility of modification.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 1436-1440
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.1436
• Online since: December 2013
• Authors: Qi Cheng*, Li Zhang, Yin Jun Wu
• Keywords: Condenser, Modification, Numerical Simulation, Tube Layout

References

[1] J. L. Alcock, D.R. Webb, T. W. Botsch, K. Stephan. An experimental investigation of the dynamic behaviour of a shell and tube condenser [J]. International Journal of Heat Mass Transfer. 1997, 40( 17): 4129-4135.

DOI: 10.1016/s0017-9310(97)00018-5

[2] T. W. Botsch, K. Stephan, J. L. Alcock, D. R. Webb. Modeling and simulation of the dynamic behaviour of a shell and tube condenser [J] . International Journal of Heat Mass Transfer. 1997, 40( 17): 4137-4149.

DOI: 10.1016/s0017-9310(97)00019-7

[3] Xuhui Li. The modification research of a domestic 300MW steam turbine condenser[D]. Master degree thesis of Southeast University, 2009 In Chinese.

[4] Guoshan Wang. Thermodynamic performance numerical simulation and its application of Power StationCondenser[M], Beijing: China Electric Power Press, 2009, 58-66 In Chinese.

[5] C. Zhang. Numerical Modeling Using a Quasi-Three-Dimension Procedure for Large Power Plant Condensers [J]. Journal of Heat Transfer, 1994, February, 116: 180-188.

DOI: 10.1115/1.2910854

[6] C. Zhang，ACM. Sousa，JES. Venart. Numerical Simulation of Different Types of Steam Surface Condensers [J]. ASME Journal of Energy Resources Technology, 1991, (113): 63-70.

DOI: 10.1115/1.2905788

[7] Maozheng Yu, Xiuping Yao, Guoshan Wang. The numerical analysis of Large power steam turbine condenser steam flow and heat transfer characteristics. Power Engineering, 1995, 15(6): 42-48 In Chinese.

[8] Siping Wang, Li Zhang, Jian Li. The numerical simulation of the shell side flow and heat transfer for 600MW steam turbine condenser [J]. Advanced Material Research, v614-615, pp.265-271.

DOI: 10.4028/www.scientific.net/amr.614-615.265

[9] Siping Wang, Numerical analysis of effect of fouling on the performance of condenser and steam turbine unit[D]. Master degree thesis of Electric Power University of Shanghai In Chinese.

[10] Dingshan Ma, An Jiang, SuFang Li, etc. The quantitative relationship between the vacuum tightness and leakage air flow of condenser [J]. Thermal Power Generation, 2009, 38(6): 65-67 In Chinese.
