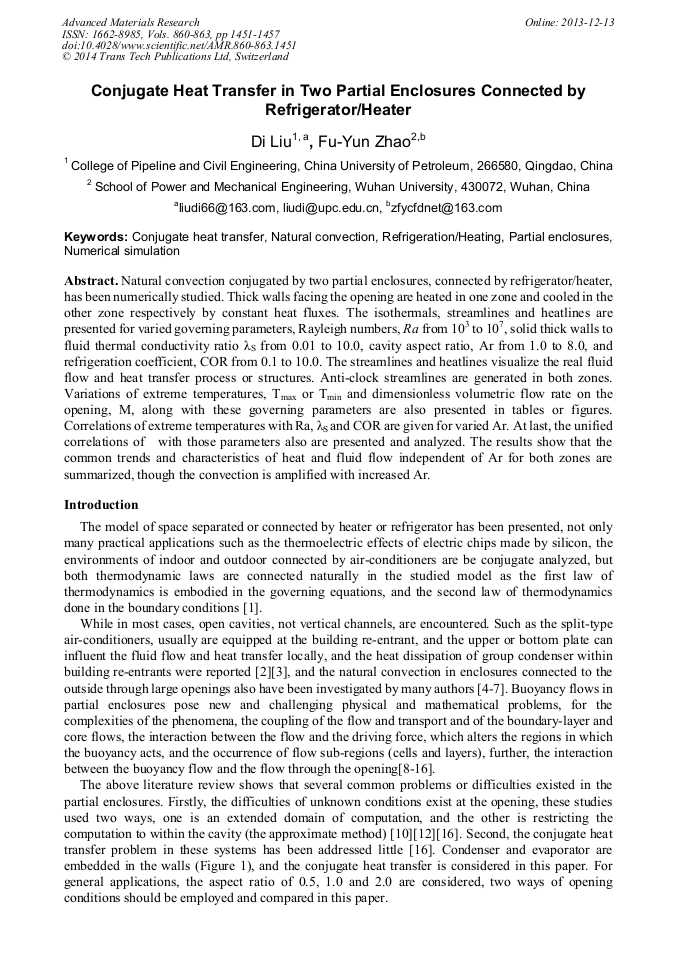

Conjugate Heat Transfer in Two Partial Enclosures Connected by Refrigerator/Heater

Abstract:

Natural convection conjugated by two partial enclosures, connected by refrigerator/heater, has been numerically studied. Thick walls facing the opening are heated in one zone and cooled in the other zone respectively by constant heat fluxes. The isothermals, streamlines and heatlines are presented for varied governing parameters, Rayleigh numbers, Ra from 10³ to 10⁷, solid thick walls to fluid thermal conductivity ratio λ_S from 0.01 to 10.0, cavity aspect ratio, Ar from 1.0 to 8.0, and refrigeration coefficient, COR from 0.1 to 10.0. The streamlines and heatlines visualize the real fluid flow and heat transfer process or structures. Anti-clock streamlines are generated in both zones. Variations of extreme temperatures, T_max or T_min and dimensionless volumetric flow rate on the opening, M, along with these governing parameters are also presented in tables or figures. Correlations of extreme temperatures with Ra, λ_S and COR are given for varied Ar. At last, the unified correlations of with those parameters also are presented and analyzed. The results show that the common trends and characteristics of heat and fluid flow independent of Ar for both zones are summarized, though the convection is amplified with increased Ar.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 1451-1457
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.1451
• Online since: December 2013
• Authors: Di Liu, Fu Yun Zhao*
• Keywords: Conjugate Heat Transfer, Natural Convection, Numerical Simulation, Partial Enclosures, Refrigeration/Heating

References

[1] B. Milorad, Y. Francis, L. Mark, Influence of heat rejected by air conditioners to flow inside a recessed space with one plate, ASHRAE Transactions, Vol. 108 (2002), pp.330-337.

[2] T. T. Chow, Z. Lin, Q. W. Wang, J. W. Z. Lu, Studying thermal performance of split air-conditioners at building re-entrant via computer simulation, in: Proceedings of the ROOMVENT 2002, Copenhagen, Denmark, (2002).

[3] N. C. Markatos, M. R. Malin, Mathematical modeling of buoyancy-induced smoke flow in enclosures, Int. J. Heat Mass Transfer Vol. 25 (1982), pp.63-75.

DOI: 10.1016/0017-9310(82)90235-6

[4] C. P. Mao, A. C. Fernandez-Pello, J. A. C. Humphrey, An investigation of steady wall-ceiling and partial enclosure fires, ASME Journal of Heat Transfer Vol. 106 (1984), pp.221-228.

DOI: 10.1115/1.3246639

[5] A. Schaelin, J. V. D. Maas, A. Moser, Simulation of airflow through large openings in buildings, ASHRAE Transactions Vol. 98 (1992), pp.319-328.

[6] Y. Jiang, Q. Chen, Buoyancy-driven single-sided natural ventilation in buildings with large openings, Int. J. Heat Mass Transfer Vol. 46 (2003), pp.973-988.

DOI: 10.1016/s0017-9310(02)00373-3

[7] S. Ostrach, Natural convection in enclosures, ASME Journal of Heat Transfer Vol. 110 (1988), pp.1175-1190.

DOI: 10.1115/1.3250619

[8] F. P. Incropera, Convection heat transfer in electronic equipment cooling, ASME Journal of Heat Transfer Vol. 110 (1988), pp.1097-1111.

DOI: 10.1115/1.3250613

[9] H. Skok, S. Ramadhyani, R. J. Schoenhals, Natural convection in a side-facing open cavity, Int. J. Heat and Fluid Flow Vol. 12 (1991), pp.36-45.

DOI: 10.1016/0142-727x(91)90006-h

[10] Y. L. Chan, C. L. Tien, Laminar natural convection in shallow open cavities, ASME Journal of Heat Transfer Vol. 108 (1986), pp.305-309.

DOI: 10.1115/1.3246920

[11] Y. L. Chan, C. L. Tien, A numerical study of two-dimensional laminar natural convection in shallow open cavities, Int. J. Heat Mass Transfer Vol. 28 (1983), pp.603-612.

DOI: 10.1016/0017-9310(85)90182-6

[12] F. Penot, Numerical calculation of two-dimensional natural convection in isothermal open cavities, Numer. Heat Transfer Vol. 5 (1982), pp.421-437.

DOI: 10.1080/10407788208913457

[13] P. Le Quere, J. A. C. Humphrey, F. S. Sherman, Numerical calculation of thermally driven two-dimensional unsteady laminar flow in cavities of rectangular cross section, Numer. Heat Transfer Vol. 4 (1981), pp.249-283.

DOI: 10.1080/01495728108961792

[14] J. A. C. Humphery, W. M. To, Numerical simulation of buoyant turbulent flow -Ⅱ. Free and mixed convection in a heated cavity, Int. J. Heat Mass Transfer Vol. 29 (1986), pp.593-610.

DOI: 10.1016/0017-9310(86)90092-x

[15] O. Polat, E. Bilgen, Conjugate heat transfer in inclined open shallow cavities, Int. J. Heat Mass Transfer Vol. 46 (2003), pp.1563-1573.

DOI: 10.1016/s0017-9310(02)00427-1

[16] S. Kimura, A. Bejan, The Heatline, visualization of convective heat transfer, ASME Journal of Heat Transfer Vol. 105 (1983), pp.916-919.

DOI: 10.1115/1.3245684

[17] S. V. Patankar, Numerical Heat Transfer and Fluid Flow, Hemisphere, Washington D.C., (1980).

[18] J. H. Ferziger, M. Peric, Computational Methods for Fluid Dynamics, Springer-Verlag, (2002).

[19] V. A. F. Costa, Unification of the streamline, heatline and massline methods for the visualization of two-dimensional transport phenomena, Int. J. Heat Mass Transfer 42(1999) 27-33.

DOI: 10.1016/s0017-9310(98)00138-0

[20] F.Y. Zhao, G.F. Tang, D. Liu, Conjugate natural convection in enclosures with external and internal heat sources, Int. J. Eng. Sci. Vol. 44 (2006), p.148–165.

DOI: 10.1016/j.ijengsci.2005.10.006

[21] D. Liu, F.Y. Zhao, G.F. Tang, Conjugate heat transfer in an enclosure with a centered conducting body imposed sinusoidal temperature profiles on one side, Numer. Heat Transfer, Part A Vol. 53 (2008), pp.204-223.

DOI: 10.1080/10407780701454030

[22] F.Y. Zhao, D. Liu, G.F. Tang, Conjugate heat transfer in square enclosures, Heat Mass Transfer Vol. 43 (2007), pp.907-922.

DOI: 10.1007/s00231-006-0136-4

[23] F.Y. Zhao, D. Liu, G.F. Tang, Application issues of the streamline, heatline and massline for conjugate heat and mass transfer, Int. J. Heat Mass Transfer Vol. 50 (2007), pp.320-334.

DOI: 10.1016/j.ijheatmasstransfer.2006.06.026

[24] D. Liu, F.Y. Zhao, G.F. Tang, Thermosolutal convection in a saturated porous enclosure with concentrated energy and solute sources, Energy Conversion Management Vol. 49 (2008), pp.16-31.

DOI: 10.1016/j.enconman.2007.06.003
