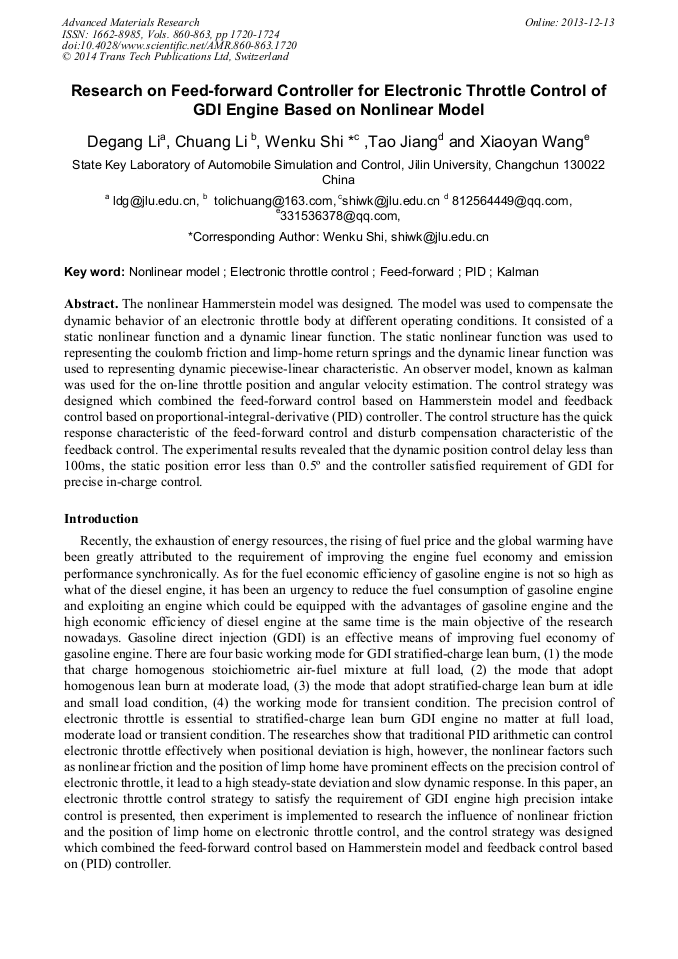

Research on Feed-Forward Controller for Electronic Throttle Control of GDI Engine Based on Nonlinear Model

Abstract:

The nonlinear Hammerstein model was designed. The model was used to compensate the dynamic behavior of an electronic throttle body at different operating conditions. It consisted of a static nonlinear function and a dynamic linear function. The static nonlinear function was used to representing the coulomb friction and limp-home return springs and the dynamic linear function was used to representing dynamic piecewise-linear characteristic. An observer model, known as kalman was used for the on-line throttle position and angular velocity estimation. The control strategy was designed which combined the feed-forward control based on Hammerstein model and feedback control based on proportional-integral-derivative (PID) controller. The control structure has the quick response characteristic of the feed-forward control and disturb compensation characteristic of the feedback control. The experimental results revealed that the dynamic position control delay less than 100ms, the static position error less than 0.5o and the controller satisfied requirement of GDI for precise in-charge control.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 1720-1724
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.1720
• Online since: December 2013
• Authors: De Gang Li, Chuang Li, Wen Ku Shi*, Tao Jiang, Xiao Yan Wang
• Keywords: Electronic Throttle Control, Feed-Forward, Kalman, Nonlinear Model, PID

References

[1] Michael Grady. GASOLINE DIRECT INJECTION. Motor Age, 2006, 125(6).

[2] Carlos Canudas de Witty, Ilya Kolmanovsky, Jing Sun. Adaptive Pulse Control of Electronic Throttle. Proceedings of the American Control Conference, Arlington, VA, June 25-27, (2001).

[3] Liang Shao, George Saikalis, D. J. McCune and Jeroen De Ridder. An Electronic Throttle Simulation Model with Automatic Parameter Tuning. SAE Paper 2005-01-1441.

DOI: 10.4271/2005-01-1441

[4] Salem Al-Assadi, Jens Breitinger and Nathan Murphy. Model-Based Friction and Limp Home Compensation In Electronic Throttle Control. SAE Paper 2006-01-0857.

DOI: 10.4271/2006-01-0857

[5] Salem Al-Assadi, Jens Breitinger and Michael Traver. Electronic Throttle Simulation Using Nonlinear Hammerstein Model. SAE Paper 2006-01-0112.

DOI: 10.4271/2006-01-0112
