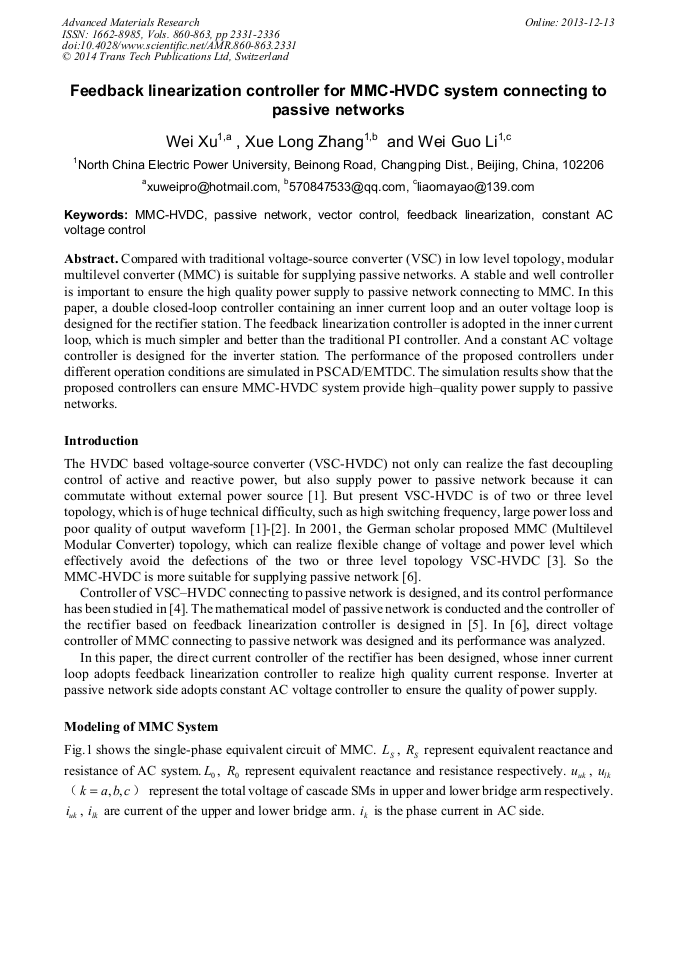

Feedback Linearization Controller for MMC-HVDC System Connecting to Passive Networks

Abstract:

Compared with traditional voltage-source converter (VSC) in low level topology, modular multilevel converter (MMC) is suitable for supplying passive networks. A stable and well controller is important to ensure the high quality power supply to passive network connecting to MMC. In this paper, a double closed-loop controller containing an inner current loop and an outer voltage loop is designed for the rectifier station. The feedback linearization controller is adopted in the inner current loop, which is much simpler and better than the traditional PI controller. And a constant AC voltage controller is designed for the inverter station. The performance of the proposed controllers under different operation conditions are simulated in PSCAD/EMTDC. The simulation results show that the proposed controllers can ensure MMC-HVDC system provide highquality power supply to passive networks.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 2331-2336
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.2331
• Online since: December 2013
• Authors: Wei Xu*, Xue Long Zhang, Wei Guo Li
• Keywords: Constant AC Voltage Control, Feedback Linearization, MMC-HVDC, Passive Network, Vector Control (VC)

References

[1] ABB. It's time to connect-technical description of HVDC light technology [R]. Latvia, Sweden: ABB Power Technology, (2005).

[2] Guangfu Tang. HVDC based on VSC [M]. Beijing: China Electric Power Press, 2010(in Chinese).

[3] R Marquardt, A Lesnicar. A new modular voltage source inverter topology"[C], EPE, 03, Toulouse, France, (2003).

[4] Guibin Zhang, Zheng Xu, Hongtao Liu, Supply passive networks with VSC-HVDC, in Proc. 2001 IEEE Power Engineering Society Summer Meeting, pp.332-336.

DOI: 10.1109/pess.2001.970037

[5] Haifeng Liang, Gengyin Li, Guangkai Li, et al. Simulation study of VSC-HVDC system connecting to passive network[J]. Power System Technology, 2005, 29(8): 47-51(in Chinese).

DOI: 10.1109/icpst.2004.1460252

[6] Minyuan Guan, Zheng Xu. Direct voltage control of MMC-HVDC supplying passive network[J]. Power System Technology, 2012, 32(12): 1-5(in Chinese).

[7] Minyuan Guan, Zheng Xu, Hairong Chen. Control and modulation strategies for modular multilevel converter based HVDC system[C]/IEEE IECON. Melbourne, Australia: [s. n. ], 2011: 849-854.

DOI: 10.1109/iecon.2011.6119421

[8] Minyuan Guan, Zheng Xu. Modeling and control of a modular multilevel converter-based HVDC system under unbalanced grid conditions [J]. IEEE Transactions on Power Electronics, 2012, 27(12): 4858-4867.

DOI: 10.1109/tpel.2012.2192752
