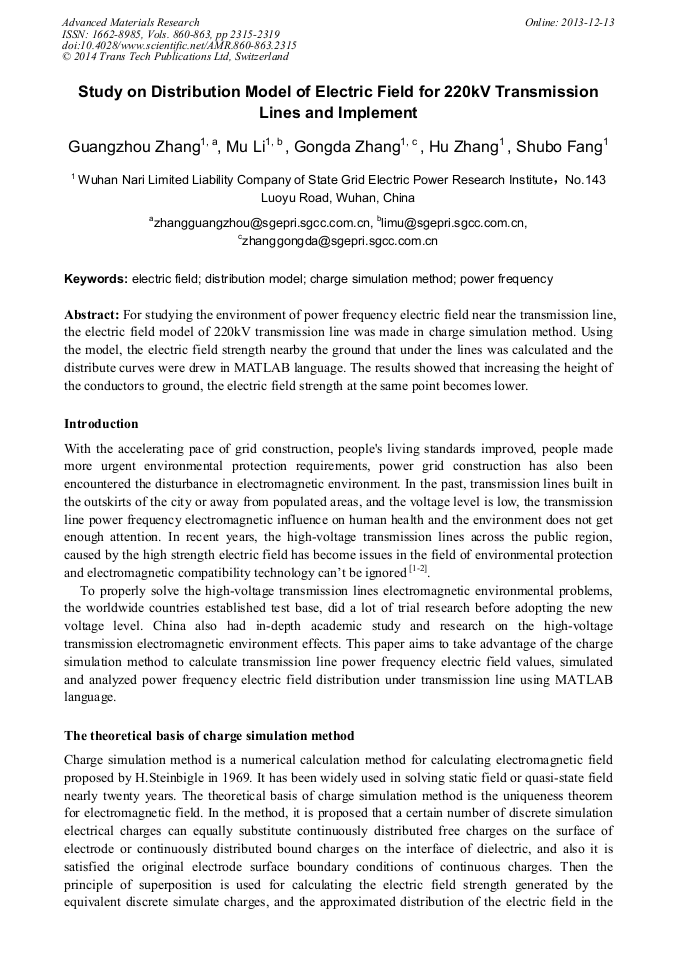

Study on Distribution Model of Electric Field for 220 kV Transmission Lines and Implement

Abstract:

For studying the environment of power frequency electric field near the transmission line, the electric field model of 220kV transmission line was made in charge simulation method. Using the model, the electric field strength nearby the ground that under the lines was calculated and the distribute curves were drew in MATLAB language. The results showed that increasing the height of the conductors to ground, the electric field strength at the same point becomes lower.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 2315-2319
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.2315
• Online since: December 2013
• Authors: Guang Zhou Zhang, Mu Li, Gong Da Zhang, Hu Zhang, Shu Bo Fang
• Keywords: Charge Simulation Method, Distribution Model, Electric Field, Power Frequency

References

[1] Zhenya Liu: Ultra-high Voltage Grid (China Economic Publishing House, Beijing 2006).

[2] Xiong Wu: Telecommunications for Electric Power System. Vol. 27 (2006), pp.1-5.

[3] Ming Wei and Shanghe Liu: Journal of Ordnance Engineering College. Vol. 9 (1998), p.7.

[4] Lin Liu: Study on Simulation of Electromagnetic Field Caused by Super High Voltage Transmission Lines, Chongqing University (2002).

[5] Jian Ning: Electric Power Environmental Protection. Vol. 23 (2007), pp.31-32.

[6] Huichun Xie and Jiangong Zhang: Power System Technology. Vol. 32 (2008), pp.34-37.
