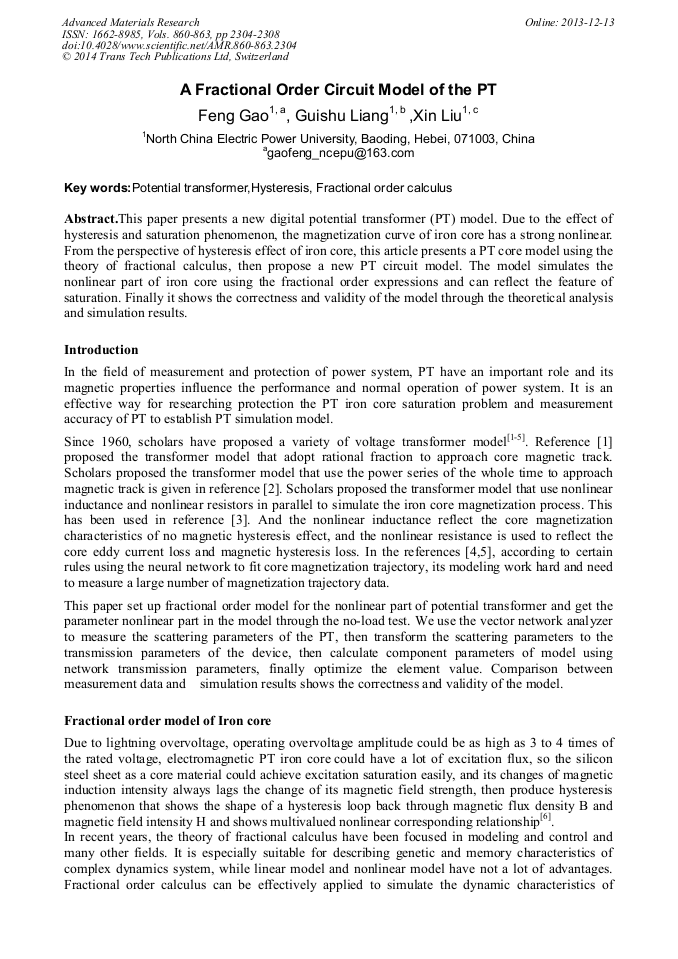

A Fractional Order Circuit Model of the PT

Abstract:

This paper presents a new digital potential transformer (PT) model. Due to the effect of hysteresis and saturation phenomenon, the magnetization curve of iron core has a strong nonlinear. From the perspective of hysteresis effect of iron core, this article presents a PT core model using the theory of fractional calculus, then propose a new PT circuit model. The model simulates the nonlinear part of iron core using the fractional order expressions and can reflect the feature of saturation. Finally it shows the correctness and validity of the model through the theoretical analysis and simulation results.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 2304-2308
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.2304
• Online since: December 2013
• Authors: Feng Gao*, Gui Shu Liang, Xin Liu
• Keywords: Fractional Order Calculus, Hysteresis, Potential Transformer

References

[1] Widger C.F.T. Representation of magnetization curves over extensive range by rational fraction approximations[J], Proc. IEEE, 116, No. 1, Jan. 1969: 156-160.

DOI: 10.1049/piee.1969.0032

[2] Lucas, J.R. Representation of magnetization curves over a wide region using a non-integer power series[J], IEEE, Vol. 25, No. 4, 1988, Manchester U.P., UK: 902-909.

[3] J.R. Lucas, P.G. McLaren, and R.P. Jayasinghe. Improved simulation models for current and voltage transformers in relay studies[J], IEEE Trans. on Power Delivery, 1992, 7(1): 152-159.

DOI: 10.1109/61.108902

[4] Baodong Yu, Lizi Zhang, Yihan Yang, Hanqing Li, Dianying Li. The Transient Magnetizing Model of Core and the Error Computation for CT[J]. Transactions of China Electrotechnical Society. 1998(06). In Chinese.

[5] Lizi Zhang, Jinhui Wu, Baodong Yu, Yihan Yang. Imitation of the hysteresis loops of power current transformer cores[J]. Automation of Electric Power Systems. 1998(03). In Chinese.

[6] Quanrong Ruan, Liang Wang, Wei Shi. Nonlinear transformer model considering losses[J]. Journal of xi'an jiaotong university. 2006(10). In Chinese.

[7] Xiaoqin Zhou, Zhiwei Zhu, Wencai Wang, Qiang Liu. A fractional order model for the hysteresis non-linearity of a piezoelectric actuated fast tool servo[J]. Nanotechnology and precision engineering. 2012(7). In Chinese.

[8] Kennedy, J. and Eberhart, R. C. Particle swarm optimization. Proc. IEEE Int'l Conf. on Neural Networks, IV, 1942-1948. Piscataway, NJ: IEEE Service Center.

[9] Ying Shang. Electromagnetic transient algorithms and nonlinear model[D]. Shandong University. 2009. In Chinese.

[10] Podlubny I. Fractional differential equations[M]. San Diego: Academic Press, (1999).
