Construction for True Three-Dimensional Imaging Display System and Analysis Based on State-Space Model

Abstract:

This paper presents a projection based on the true three-dimensional imaging display system. We analyzed true three-dimensional image display system imaging space construction, and proposed a new light emitting structure method of volume pixels (voxel), and also discussed feasibility employing local state-space model - Givone-Roessor model to compute the voxel variables. The mechanical structure is simple and the cost is inexpensive; the field angle is so larger that can display almost half a sphere except the zenith point; and the voxels constructor is easy to implement by micro controller due to the small amount of GR model calculation.

You might also be interested in these eBooks

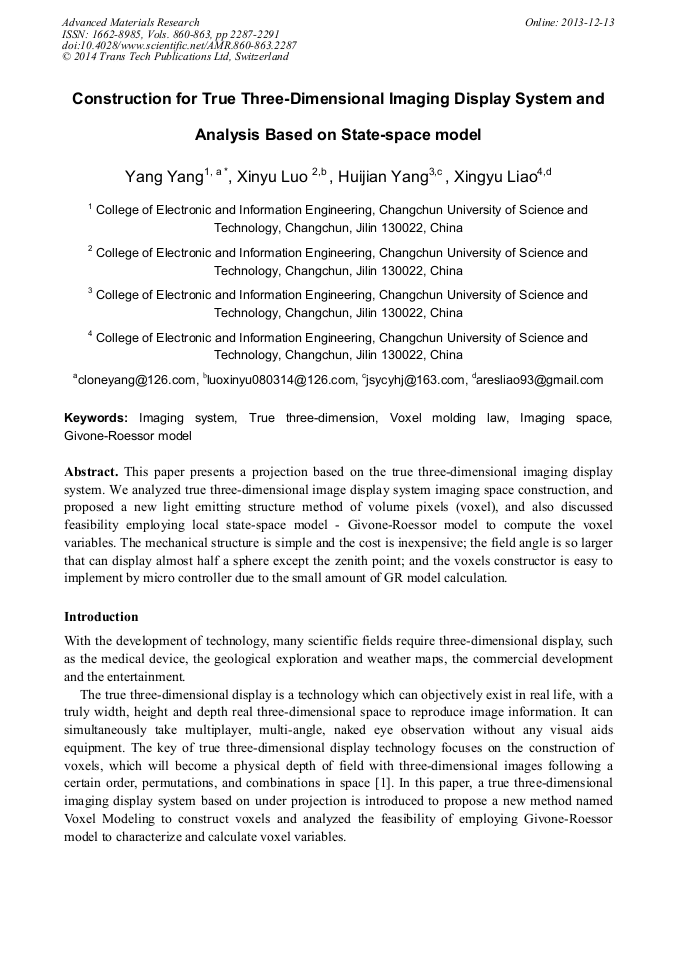

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 860-863)

Pages:

2287-2291

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.860-863.2287

Citation:

Cite this paper

Online since:

December 2013

Authors:

Yang Yang, Xin Yu Luo, Hui Jian Yang, Xing Yu Liao

Keywords:

Givone-Roessor Model, Imaging Space, Imaging System, True Three-Dimension, Voxel Molding Law

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Taiping Jiang, Chunlin Shen. Analysis and Realization of the Volume Viewing in the True 3D Volumetric Display System [J]. Shanghai: Avionics Technology, 2007(03): Vol. 38 No. 3.

Google Scholar

[2] Gang Han, Zheng Geng. DMD True 3D Display System and 3D Display Engine Design [J]. Changchun: Chinese Journal of Liquid Crystals and Displays, 2010(01): Vol125, No. 1.

Google Scholar

[3] Li Li. Research and Implementation on Key Technologies of Volumetric Display System [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, (2008).

Google Scholar

[4] Jianfei Ding, Yongjin Liu. A Survey On Three-Dimension Display Technologies [J]. Beijing: Journal of System Simulation. 2008: Vol. 20 Suppl.

Google Scholar

[5] A. Sullivan. Depth cube solid-state 3D volumetric display. Proceedings of SPIE the International Society for Optical Engineering . (2004).

Google Scholar

[6] Jones Andrew, McDowall Ian, Yamada Hideshi, et al. Rendering for an interactive 360° light filed display[C]. ACM Transactions on Graphics, (2007).

DOI: 10.1145/1276377.1276427

Google Scholar

[7] Geng Jason. Volumetric 3D display for radiation therapy planning[J]. Journal of Display Technology . (2008).

Google Scholar

[8] D. Givone and R. Roesser, Multidimensional Linear Iterative Circuits- General Properties, IEEE Transactions on Computers, vol. C-21, no. 10, pp.1067-1073, October (1972).

DOI: 10.1109/t-c.1972.223453

Google Scholar
