Sensitivity Analysis of the Networks with Fractional Order Reactance

Abstract:

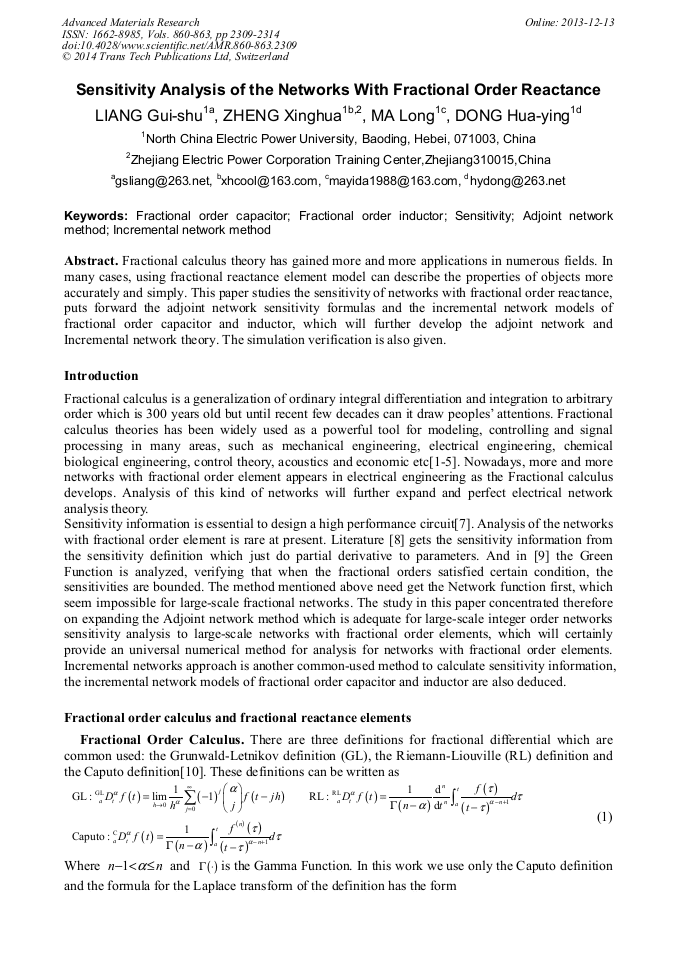

Fractional calculus theory has gained more and more applications in numerous fields. In many cases, using fractional reactance element model can describe the properties of objects more accurately and simply. This paper studies the sensitivity of networks with fractional order reactance, puts forward the adjoint network sensitivity formulas and the incremental network models of fractional order capacitor and inductor, which will further develop the adjoint network and Incremental network theory. The simulation verification is also given.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 2309-2314
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.2309
• Online since: December 2013
• Authors: Gui Shu Liang, Xing Hua Zheng, Long Ma, Hua Ying Dong
• Keywords: Adjoint Network Method, Fractional Order Capacitor, Fractional Order Inductor, Incremental Network Method, Sensitivity
