Effect of the Precipitated Second Phase during Aging on the Damping Capacity Degradation Behavior of M2052 Alloy

Ying Zhang; Ning Li; Jia Zhen Yan; Jin Wu Xie

doi:10.4028/www.scientific.net/AMR.873.36

Paper Titles

Research on High Strength Hypoeutectic Al-Si Alloy
p.10

The Preparation and Properties Study of the Zirconia Dispersion-Strengthened Platinum Materials
p.19

Morphology and Magnetic Properties of NiCuZn Ferrite Synthesized by Solid-Molten Salt Method
p.24

Structure and Mechanical Properties of Impregnated Diamond Cutting Tools Using Cu-Based Metal Matrix
p.30

Effect of the Precipitated Second Phase during Aging on the Damping Capacity Degradation Behavior of M2052 Alloy
p.36

Microstructure and Texture Evolution Law of Ti-IF Steel for Extra Deep Drawing during Batch Annealing Process
p.42

Experimental Study on the Twin Roll Strip Casting and Warm Rolling Fe-6.5 wt. %Si Steel Sheet
p.48

Classification of High Quality Carbon Steel Based on BP Neural Network
p.54

Study on Positron Annihilation Lifetime of Amorphous Alloy Fe_73.5Cu₁Nb₃Si_13.5B₉ by Magnetic Pulse Treated
p.60

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 873Effect of the Precipitated Second Phase during...

Effect of the Precipitated Second Phase during Aging on the Damping Capacity Degradation Behavior of M2052 Alloy

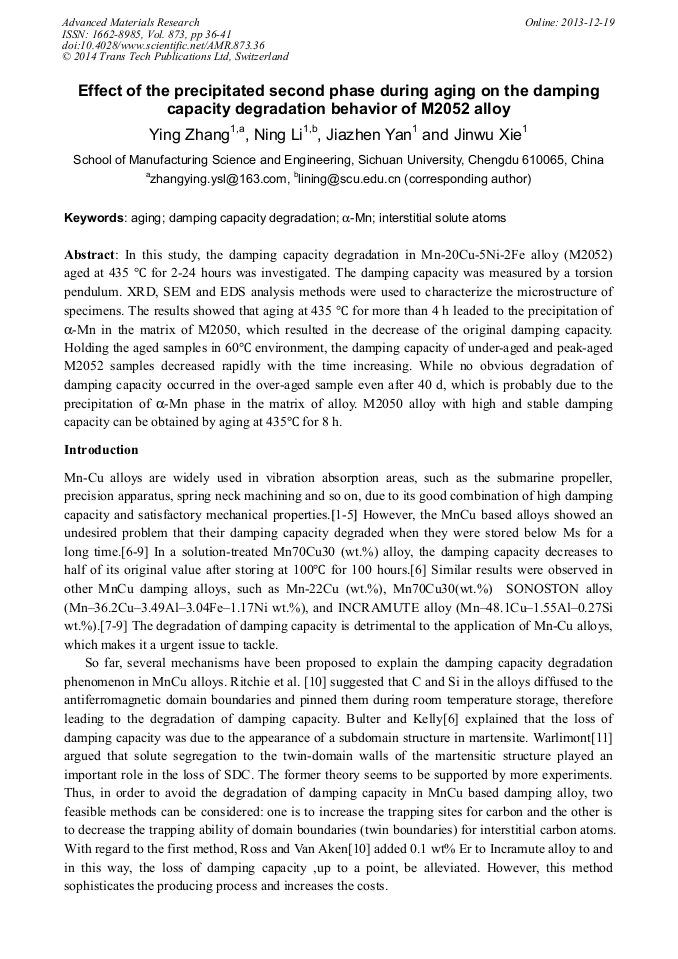

Abstract:

In this study, the damping capacity degradation in Mn-20Cu-5Ni-2Fe alloy (M2052) aged at 435 °C for 2-24 hours was investigated. The damping capacity was measured by a torsion pendulum. XRD, SEM and EDS analysis methods were used to characterize the microstructure of specimens. The results showed that aging at 435 °C for more than 4 h leaded to the precipitation of α-Mn in the matrix of M2050, which resulted in the decrease of the original damping capacity. Holding the aged samples in 60°C environment, the damping capacity of under-aged and peak-aged M2052 samples decreased rapidly with the time increasing. While no obvious degradation of damping capacity occurred in the over-aged sample even after 40 d, which is probably due to the precipitation of α-Mn phase in the matrix of alloy. M2050 alloy with high and stable damping capacity can be obtained by aging at 435°C for 8 h.
