Experimental Study on the Twin Roll Strip Casting and Warm Rolling Fe-6.5 wt. %Si Steel Sheet

Feng Quan Zhang; Zhen Yu Liu; Zhong Han Luo; Guang Ming Cao

doi:10.4028/www.scientific.net/AMR.873.48

Paper Titles

Morphology and Magnetic Properties of NiCuZn Ferrite Synthesized by Solid-Molten Salt Method
p.24

Structure and Mechanical Properties of Impregnated Diamond Cutting Tools Using Cu-Based Metal Matrix
p.30

Effect of the Precipitated Second Phase during Aging on the Damping Capacity Degradation Behavior of M2052 Alloy
p.36

Microstructure and Texture Evolution Law of Ti-IF Steel for Extra Deep Drawing during Batch Annealing Process
p.42

Experimental Study on the Twin Roll Strip Casting and Warm Rolling Fe-6.5 wt. %Si Steel Sheet
p.48

Classification of High Quality Carbon Steel Based on BP Neural Network
p.54

Study on Positron Annihilation Lifetime of Amorphous Alloy Fe_73.5Cu₁Nb₃Si_13.5B₉ by Magnetic Pulse Treated
p.60

Ferromagnetic Characteristics of Bulk Fe₆₃Co₇Nb₄Zr₆B₁₉Si₁ Metallic Glass
p.63

Effect of Microstructure of Mo-Cu Alloy on the Thermal Expansion Coefficient
p.67

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 873Experimental Study on the Twin Roll Strip Casting...

Experimental Study on the Twin Roll Strip Casting and Warm Rolling Fe-6.5 wt. %Si Steel Sheet

Abstract:

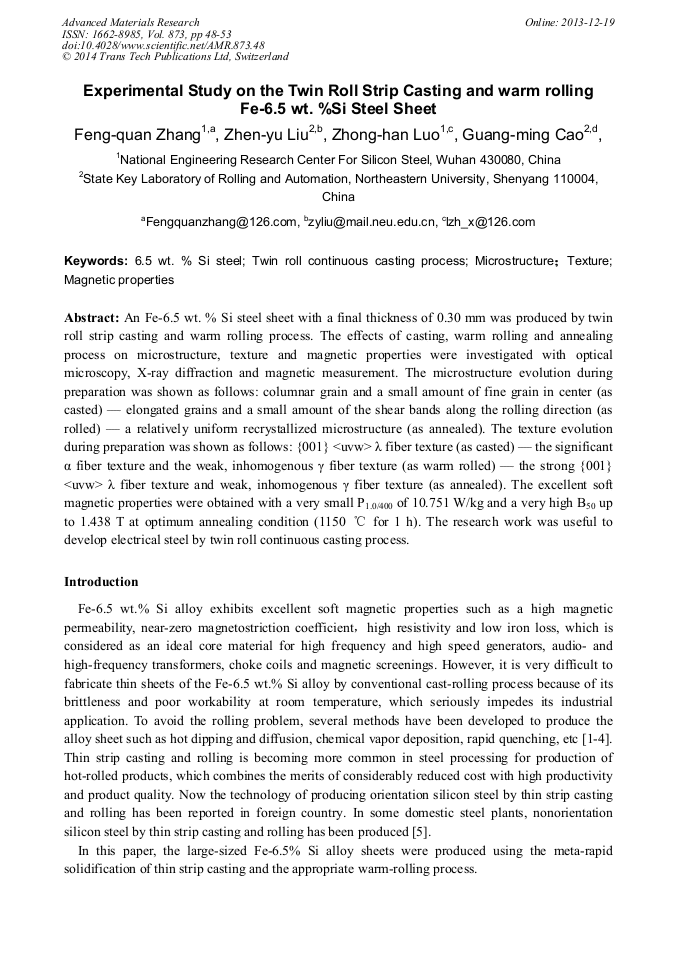

An Fe-6.5 wt. % Si steel sheet with a final thickness of 0.30 mm was produced by twin roll strip casting and warm rolling process. The effects of casting, warm rolling and annealing process on microstructure, texture and magnetic properties were investigated with optical microscopy, X-ray diffraction and magnetic measurement. The microstructure evolution during preparation was shown as follows: columnar grain and a small amount of fine grain in center (as casted) elongated grains and a small amount of the shear bands along the rolling direction (as rolled) a relatively uniform recrystallized microstructure (as annealed). The texture evolution during preparation was shown as follows: {001} λ fiber texture (as casted) the significant α fiber texture and the weak, inhomogenous γ fiber texture (as warm rolled) the strong {001} λ fiber texture and weak, inhomogenous γ fiber texture (as annealed). The excellent soft magnetic properties were obtained with a very small P_1.0/400 of 10.751 W/kg and a very high B₅₀ up to 1.438 T at optimum annealing condition (1150 °C for 1 h). The research work was useful to develop electrical steel by twin roll continuous casting process.
