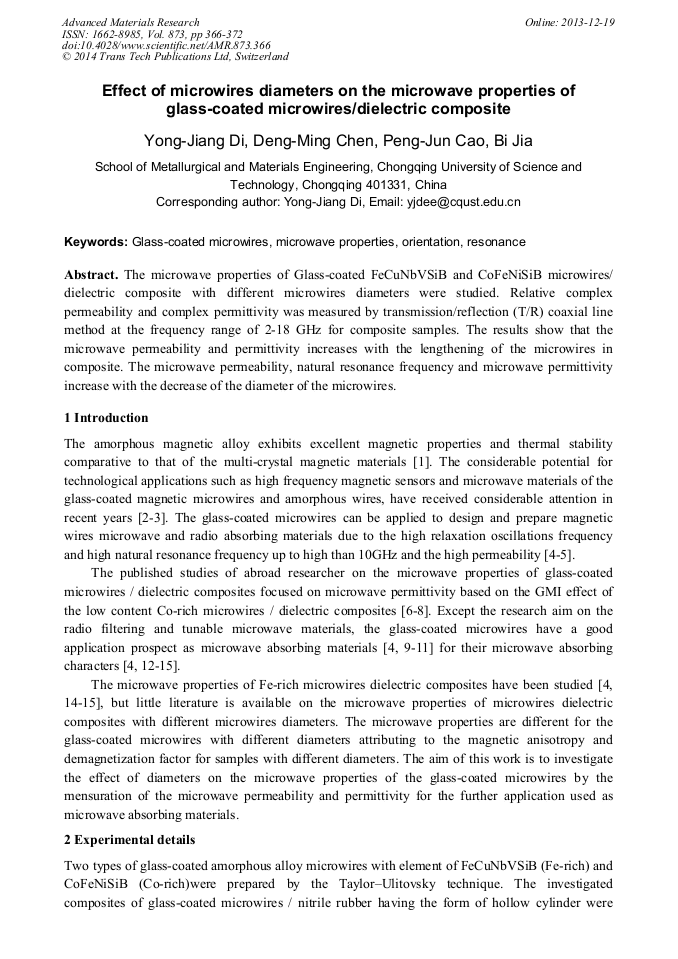

Effect of Microwires Diameters on the Microwave Properties of Glass-Coated Microwires/Dielectric Composite

Abstract:

The microwave properties of Glass-coated FeCuNbVSiB and CoFeNiSiB microwires/dielectric composite with different microwires diameters were studied. Relative complex permeability and complex permittivity was measured by transmission/reflection (T/R) coaxial line method at the frequency range of 2-18 GHz for composite samples. The results show that the microwave permeability and permittivity increases with the lengthening of the microwires in composite. The microwave permeability, natural resonance frequency and microwave permittivity increase with the decrease of the diameter of the microwires.

• Periodical: Advanced Materials Research (Volume 873)
• Pages: 366-372
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.873.366
• Online since: December 2013
• Authors: Yong Jiang Di*, Deng Ming Chen, Peng Jun Cao, Bi Jia
• Keywords: Glass-Coated Microwires, Microwave Properties, Orientation, Resonance

References

[1] Liu J S, Sun J F, Xing D W, Xue X. Comparative study on microstructure and magnetic properties of amorphous wires with different diameters [J]. Materials Technology: Advanced Performance Materials, 2012, 27(1): 142-144.

DOI: 10.1179/175355511x13240279341047

[2] WANG C, ZHANG Z, XIE J. Influence of annealing on the magnetic and mechanical properties of glass-coated Fe69Co10Si8B13 microwires [J]. Journal of Functional Materials and Devices, 2010, 16(1): 22-28.

[3] Qin F and Peng H X. Ferromagnetic Microwires Enabled Multifunctional Composite Materials [J]. Progress in Materials Science, 2013, 58(2): 183-259.

DOI: 10.1016/j.pmatsci.2012.06.001

[4] Han M G, Ou Y, Liang D F, and Deng L J. Annealing effects on the microwave permittivity and permeability properties of Fe79Si16B5 microwires and their microwave absorption performances [J]. Chinese Physics B, 2009, 18(3): 1261-1265.

DOI: 10.1088/1674-1056/18/3/070

[5] MarínP, Cortina D, Hernando A. High-frequency behavior of amorphous microwires and its applications [J]. Journal of Magnetism and Magnetic Materials, 2005, 290: 1597-1600.

DOI: 10.1016/j.jmmm.2004.11.255

[6] Acher O, Adenot A L, Deprot S. Parallel permeability of ferromagnetic wires up to GHz frequencies [J]. Journal of Magnetism and Magnetic Materials, 2002, 249(1-2): 264-268.

DOI: 10.1016/s0304-8853(02)00541-3

[7] Deprot S, Adenot A L, Bertin F, et al. High frequency losses of ferromagnetic wires near the gyromagneticresonance [J]. IEEE Transactions on Magnetics, 2001, 37(4): 2404-2406.

DOI: 10.1109/20.951186

[8] Deprot S, Adenot A L, Bertin F, et al. Frequency response engineering of CoFeNiBSi microwires in the gigahertz range [J]. Journal of Magnetism and Magnetic Materials, 2002, 242: 247-250.

DOI: 10.1016/s0304-8853(01)01245-8

[9] Makhnovskiy D P, Panina L V. Field dependent permittivity of composite materials containing ferromagnetic wires [J]. Journal of Applied Physics, 2003, 93(7): 4120-4129.

DOI: 10.1063/1.1557780

[10] Reynet O, Adenot A L, Deprot S, et al. Effect of the magnetic properties of the inclusions on the high-frequency dielectric response of diluted composites [J]. Physical Review B, 2002, 66(9): 94412.

DOI: 10.1103/physrevb.66.094412

[11] Lagarkov A N, Sarychev A K. Electromagnetic properties of composites containing elongated conducting inclusions [J]. Physical Review B, 1996, 53(10): 6318-6336.

DOI: 10.1103/physrevb.53.6318

[12] Liu L, Matitsine S M, Gan Y B, et al. Effective permittivity of planar composites with randomly or periodically distributed conducting fibers [J]. Journal of Applied Physics, 2005, 98: 063512.

DOI: 10.1063/1.2035895

[13] Baranov S A. Magnetic properties of an amorphous microconductor in the microwave range [J]. Technical Physics, 1998, 43(1): 122-123.

DOI: 10.1134/1.1258952

[14] Starostenko S N, Rozanov K N, Osipov A V. Microwave properties of composites with glass coated amorphous magnetic microwires [J]. Journal of Magnetism and Magnetic Materials, 2006, 298(1): 56-64.

DOI: 10.1016/j.jmmm.2005.03.004

[15] DENG L, JIANG J, DI Y, HE H. Microstruture and microwave absorbing ability of Fe2based glass-coated microwires [J]. Fuctional Materials, 2007, 38(7): 1179-1181.

[16] Makhnovskiy D P, Panina L V, Mapps D J. Field-dependent surface impedance tensor in amorphous wires with two types of magnetic anisotropy: Helical and circumferential [J]. Physical Review B, 2001, 63(14): 144424.

DOI: 10.1103/physrevb.63.144424
