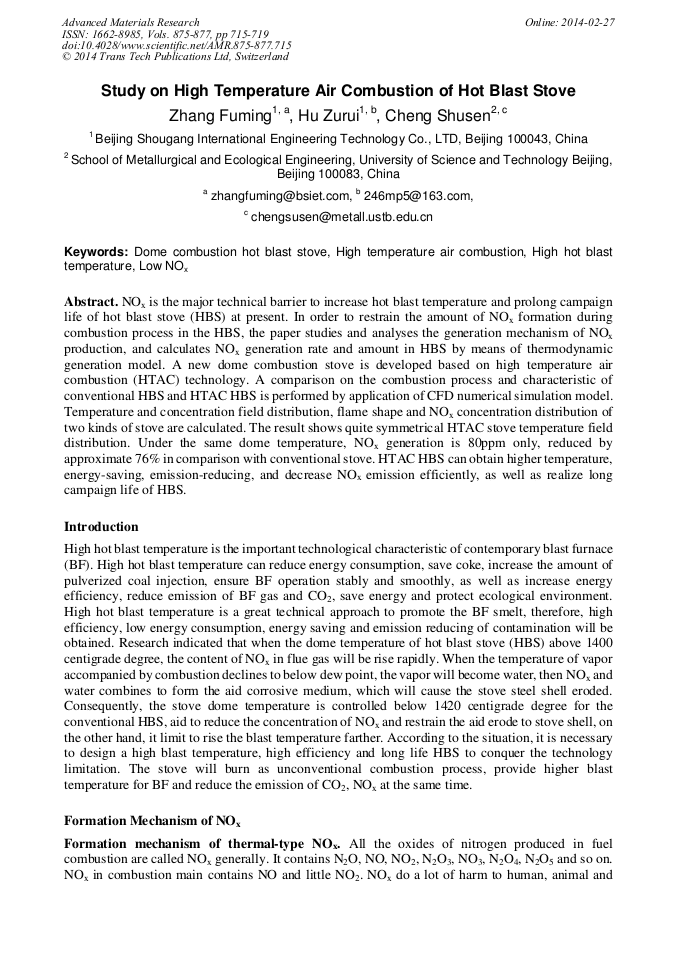

Study on High Temperature Air Combustion of Hot Blast Stove

Abstract:

NO_x is the major technical barrier to increase hot blast temperature and prolong campaign life of hot blast stove (HBS) at present. In order to restrain the amount of NO_x formation during combustion process in the HBS, the paper studies and analyses the generation mechanism of NO_x production, and calculates NO_x generation rate and amount in HBS by means of thermodynamic generation model. A new dome combustion stove is developed based on high temperature air combustion (HTAC) technology. A comparison on the combustion process and characteristic of conventional HBS and HTAC HBS is performed by application of CFD numerical simulation model. Temperature and concentration field distribution, flame shape and NO_x concentration distribution of two kinds of stove are calculated. The result shows quite symmetrical HTAC stove temperature field distribution. Under the same dome temperature, NO_x generation is 80ppm only, reduced by approximate 76% in comparison with conventional stove. HTAC HBS can obtain higher temperature, energy-saving, emission-reducing, and decrease NO_x emission efficiently, as well as realize long campaign life of HBS.

• Periodical: Advanced Materials Research (Volumes 875-877)
• Pages: 715-719
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.875-877.715
• Online since: February 2014
• Authors: Fu Ming Zhang, Zu Rui Hu, Shu Sen Cheng
• Keywords: Dome Combustion Hot Blast Stove, High Hot Blast Temperature, High-Temperature Air Combustion (HTAC), Low NO_x

References

[1] ZHANG Fuming: Technology Progress of Large Dome Combustion hot stove in China, Ironmaking, Vol. 21 (2002), n. 5, pp.5-10.

[2] ZHANG Xiaohui, SUN Rui, SUN Shaozeng: Effects of Stereo-staged Combustion Technique on NOx Emission Characteristics, Chinese Journal of Mechanical Engineering, Vol. 45 (2009), n. 2, pp.199-205.

DOI: 10.3901/jme.2009.02.199

[3] XIE Chongming: NOx Formation Mechanism in the Process of Combustion and its Control Technology, Guangzhou Chemical Industry, Vol. 37 (2009), n. 3, pp.161-164.

[4] XIA Xiaoxia, WANG Zhiqi, XU Shunsheng: Numerical simulation on influence factors of NOx emissions for pulverized coal boiler, Journal of Central South University (Science and Technology), Vol. 41 (2010), n. 5, p.2046-(2052).

[5] Howse J. W., Hansen G. A., Cagliostro D. J.: Solving a Thermal Regenerator Model Using Implicit, Newton–Krylov Methods, Numerical Heat Transfer in Press, New York, (2000).

DOI: 10.1080/10407780050134956

[6] SOBISIAK A: Performance Characteristic of the Novel Low-NOx CGRI Burner for Use with High Air Preheat, Combustion and Flame, Vol. 115 (1998), pp.93-125.

DOI: 10.1016/s0010-2180(97)00366-0

[7] FLAMME M: Low NOx Combustion Technologies for High Temperature Applications, Energy Conversion and Management, Vol. 42 (2001), p.1919-(1935).

DOI: 10.1016/s0196-8904(01)00051-6

[8] HONGSHENG G: Numerical Study of NOx Emission in High Temperature Air Combustion, JSME International Journal Series B, Vol. 41 (1998), n. 2, pp.134-221.

[9] CHOI G, KATSUKI M: Advanced Low NOx Combustion Using Highly Preheated Air, Energy Conversion and Management, Vol. 42 (2001), pp.639-652.

DOI: 10.1016/s0196-8904(00)00074-1

[10] ZHANG Fuming, CHENG Shusen, HU Zurui: High Temperature Dome Combustion Hot Stove, Chinese Patent: ZL201020102450. 9, 2010-11-17.

[11] ZHANG Fuming: Transfer Theory and Design Research on Long Campaign Life and High Efficiency in Hot Blast Stove, Beijing: University of Science and Technology Beijing, pp.141-156, (2010).
