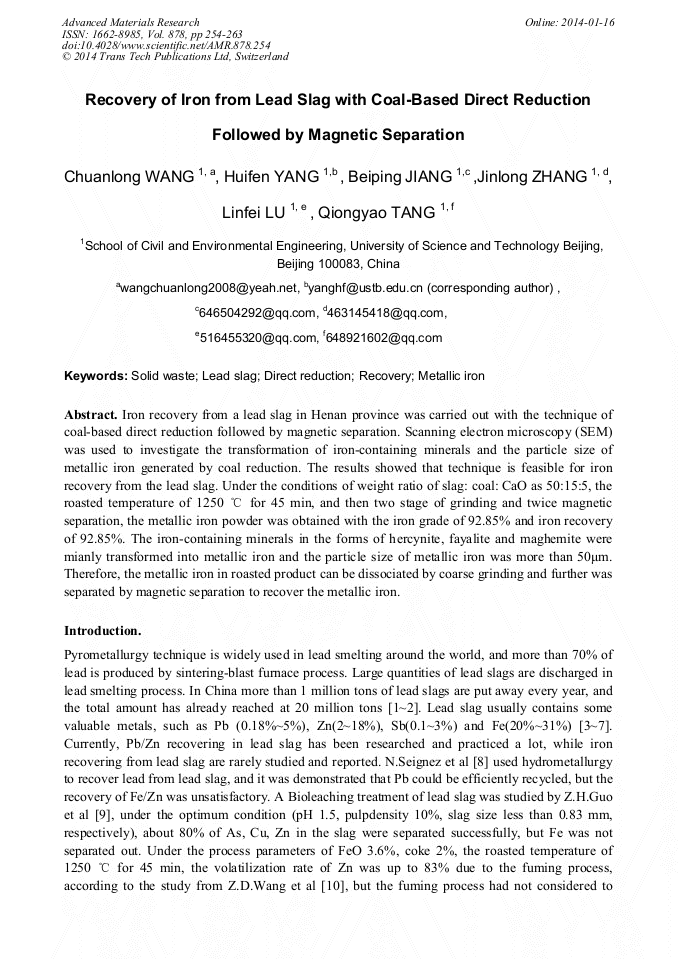

Recovery of Iron from Lead Slag with Coal-Based Direct Reduction Followed by Magnetic Separation

Abstract:

Iron recovery from a lead slag in Henan province was carried out with the technique of coal-based direct reduction followed by magnetic separation. Scanning electron microscopy (SEM) was used to investigate the transformation of iron-containing minerals and the particle size of metallic iron generated by coal reduction. The results showed that technique is feasible for iron recovery from the lead slag. Under the conditions of weight ratio of slag: coal: CaO as 50:15:5, the roasted temperature of 1250 °C for 45 min, and then two stage of grinding and twice magnetic separation, the metallic iron powder was obtained with the iron grade of 92.85% and iron recovery of 92.85%. The iron-containing minerals in the forms of hercynite, fayalite and maghemite were mianly transformed into metallic iron and the particle size of metallic iron was more than 50μm. Therefore, the metallic iron in roasted product can be dissociated by coarse grinding and further was separated by magnetic separation to recover the metallic iron.

• Periodical: Advanced Materials Research (Volume 878)
• Pages: 254-263
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.878.254
• Online since: January 2014
• Authors: Chuan Long Wang, Hui Fen Yang, Bei Ping Jiang, Jin Long Zhang, Lin Fei Lu, Qiong Yao Tang
• Keywords: Direct Reduction, Lead Slag, Metallic Iron, Recovery, Solid Waste

References

[1] K. M . Li, Y.R. Gui, S.J. Wang, J.S. He, Status of lead pyrometallurgy and comprehensive utilization of its waste slag, J. China Nonferrous Metallurgy. 04 (2012) 70– 73.

[2] X.X. Jang, Comprehensive recovery of precious associated metal, J. China Metal Market. 45 (2010) 17-19.

[3] S.L. Lu, J.H. Su, The application of top blowing fuming method in recyling indium, J. Gold Science and Technology. 04 (2010) 71-74.

[4] H.Y. Liu, W. Wang, H. Yao, The characterization of the Yuguang lead smelting blast furnace slag, J. Science & Technology Information(academic edition). 30 (2008) 324-326.

[5] J.M. Ran, W.G. Shi, Y.Q. Zheng, J.H. Yi, C. Wei, Practice of recovering valuable metals from water-granulated slag in lead and antimony metallurgical process, J. Nonferrous Metals. 05 (2008) 10-12.

[6] Y.T. Ma, F.Z. Wang, Study on comprehensive utilization of lead-silver residue, J. China Nonferrous Metallurgy. 03 (2008) 44-49.

[7] M. Reuter, Y. Xiao, Boin U, Recycling and environmental issues of metallurgical slags and salt fluxes, VII Interna-tional Conference on Molten Slags Fluxes and Salts. The South African Institute of Mining and Metallurgy. (2004) 349–35.

DOI: 10.1007/978-3-319-48769-4_80

[8] N. Seignez, A. Gauthier, D. Bulteel, D. Damidot, J.L. Potdevin, Leaching of lead metallurgical slags and pollutant mobility far from equilibrium conditions, J. Applied Geochemistry. 23 (2008) 3699-3711.

DOI: 10.1016/j.apgeochem.2008.09.009

[9] Z.H. Guo, L. Zhang, Y. Cheng, X.Y. Xiao, PAN Feng-kai, JIANG Kai-qi, Effects of pH pulp density and particle size on solubilization of metals from a Pb/Zn smelting slag using indigenous moderate thermophilic bacteria, J. Hydrometallurgy. 104 (2010).

DOI: 10.1016/j.hydromet.2010.04.006

[10] Z.D. Wang, T. Lei, Z. Shi, J.X. Ke, Experimentation on treatment of slag from lead smelting furnace by fuming process, J. Yunnan Metallurgy. 01 (2007) 45-47.

[11] Q.X. He, Y.L. Qin, On zinc and indium recycle from blast furnace slag by fuming process,J. Jiangxi Nonferrous Metals. 02 (2008) 29-32.

[12] W.W. Wu, S.B. Lai, S. Liao, A thermodynamic analysis of enriching indium and other valuable metals from pyrometallurgical slag via reduction-volatilization,J. Nonferrous Meatals. 60 (2008) 67-70.

[13] Q. Tu, Q. Huang, J. Tao, Approaches to China's leading role in pricing iron ore, J. Resources ＆ Industries. 02 (2011) 53-56.

[14] X.M. Qin, Y.Z. Xiao, T.C. Sun, M. Jiang, C.Y. Xu, Z. Wang, Experiments on the coal based direct reduction magnetic separation of a refractory iron ore, J. Metal Mine. 06 (2010) 73-76.

[15] H.F. Yang, L.L. Jing, C.G. Dang, Iron recovery from copper-slag with lignite-based direct reduction followed by magnetic separation, J. The Chinese Journal of Nonferrous Metals. 21 (2011) 1165-1170.

[16] J.W. Park, J.C. Ahn, H. Song, K. Park, H. Shin, J.S. Ahn, Reduction characteristics of oily hot rolling mill sludge by direct reduced iron method, J. Resources Conservation and Recycling. 34 (2002) 129-140.

DOI: 10.1016/s0921-3449(01)00098-2

[17] Z.C. Huang, L.B. Cai, Y.B. Zhang, Y.B. Yang, T. Jiang, Study on the Sponge Iron Preparation by Direct Reduction of High Iron Red Mud by Bayer Process, J. Metal Mine. 03 (2009) 173-177.

[18] G.S. Liu, V. Strezov, J.A. Lucas, J. Louis, Wibberley, Thermal investigations of direct iron ore reduction with coal, J. Thermochimica Acta. 410 (2004) 133-140.

DOI: 10.1016/s0040-6031(03)00398-8

[19] F.L. Han, Reduced iron power from mill scale, J. Powder Metallurgy Technology. 19 (2001) 33-44.

[20] Y.F. Lu, Metallurgical principles, Metallurgical Industry Press, Beijing, (2009).

[21] Y.L. Li, T.C. Sun, A.H. Zou, C.Y. Xu, Effect of coal levels during direct reduction roasting of high phosphorus oolitic hematite ore in a tunnel kiln, J. International Journal of Mining Science and Technology. 22 (2012) 323-328.

DOI: 10.1016/j.ijmst.2012.04.007

[22] H.F. Yang, L.L. Jing, B.G. Zhang, Recovery of iron from vanadium tailings with coal-based direct reduction followed by magnetic separation, J. Journal of Hazardous Materials. 185 (2011) 1405-1411.

DOI: 10.1016/j.jhazmat.2010.10.062
