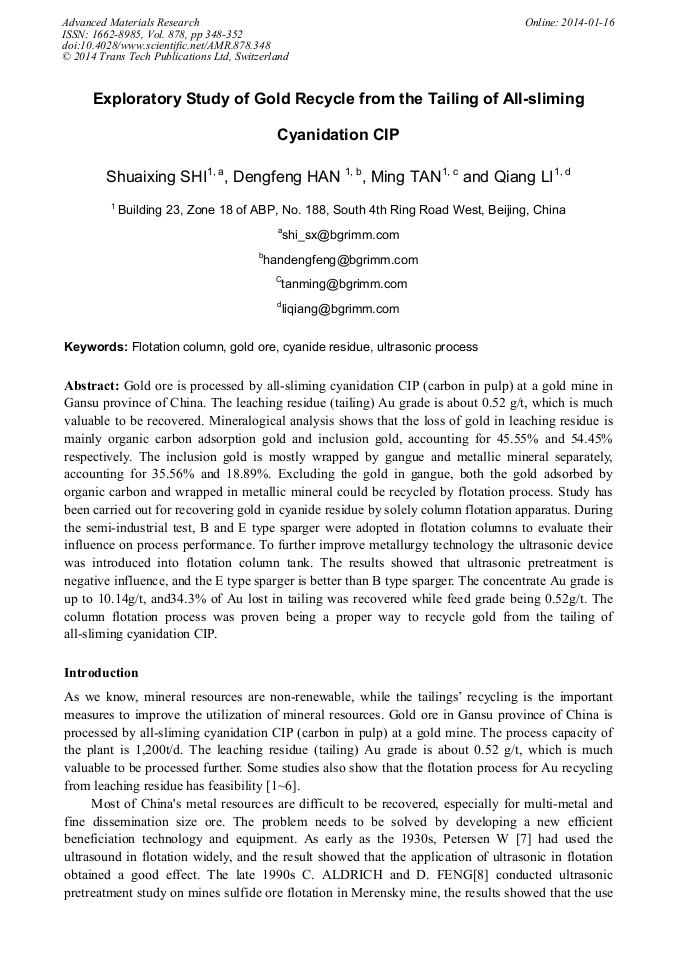

Exploratory Study of Gold Recycle from the Tailing of All-Sliming Cyanidation CIP

Abstract:

Gold ore is processed by all-sliming cyanidation CIP (carbon in pulp) at a gold mine in Gansu province of China. The leaching residue (tailing) Au grade is about 0.52 g/t, which is much valuable to be recovered. Mineralogical analysis shows that the loss of gold in leaching residue is mainly organic carbon adsorption gold and inclusion gold, accounting for 45.55% and 54.45% respectively. The inclusion gold is mostly wrapped by gangue and metallic mineral separately, accounting for 35.56% and 18.89%. Excluding the gold in gangue, both the gold adsorbed by organic carbon and wrapped in metallic mineral could be recycled by flotation process. Study has been carried out for recovering gold in cyanide residue by solely column flotation apparatus. During the semi-industrial test, B and E type sparger were adopted in flotation columns to evaluate their influence on process performance. To further improve metallurgy technology the ultrasonic device was introduced into flotation column tank. The results showed that ultrasonic pretreatment is negative influence, and the E type sparger is better than B type sparger. The concentrate Au grade is up to 10.14g/t, and34.3% of Au lost in tailing was recovered while feed grade being 0.52g/t. The column flotation process was proven being a proper way to recycle gold from the tailing of all-sliming cyanidation CIP.

• Periodical: Advanced Materials Research (Volume 878)
• Pages: 348-352
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.878.348
• Online since: January 2014
• Authors: Shuai Xing Shi, Deng Feng Han, Ming Tan, Qiang Li
• Keywords: Cyanide Residue, Flotation Column, Gold Ore, Ultrasonic Process

References

[1] ZHOU Dong-qin. The Experiment Study on Recovering Gold by Flotation from a Cyanide Tailing, J. NON—FERROUS MINING AND METALLURGY. 2( 2009)15~17.

[2] Shi Tongji. Research and Practice of Comprehensive Recovery of Valuable Metals From Cyanidation Tailing Slags, J. METAL MINE. 5(2002)39~41.

[3] LI Li-jun. Experimental Research on Flotation for a Low Grade Gold Ore, J. Metal Materials and Metallurgy Engineering. 3(2013)12~15.

[4] Pan Bin. Experimental Study on Improving the Flotation Recovery Rate in a Gold Mine, J. Hunan Nonferrous Metals. 3(2013)44~48.

[5] Wang Anli. Process study on the recovery of gold and iron from flotation tailings in a gold mine of Henan Province, J. GOLD. 12(2012)24~26.

[6] Du feifei. Flotation Test Research of a Gold Mine, J. Modern Mining. 1(2012)30~33.

[7] C • lotte Motherwell. Enhancement of flotation by Ultrasonic, J. Foreign metal beneficiation. 10(2002)21~25.

[8] C. ALDRICH and D. FENG. Effect of ultrasonic preconditioning of pulp on the flotation of sulphide ores, J. Minerals Engineering. 12(1999)706.

DOI: 10.1016/s0892-6875(99)00053-9

[9] M • Mishra. Ultrasonic pretreatment to improve arsenopyrite flotation, J. Foreign metal beneficiation. 6(2004)35~38.

[10] C • I • Qieerlihe. Ultrasound, magnetic and electric fields on the impact of gold flotation, J. Foreign metal beneficiation. 1(2004)4~7.

[11] Shi Jiyou. Test report of leaching in SUBEI gold mine,R. ChangChun: Changchun institute of Gold. (2008)46~50.

[12] PAN Xin，HAN Dengfeng，SHI Shuaixing，etc. Study of Column Flotation Applied for Refractory Molybdenum Tailings Pretreated by Ultrasound, J. Nonferrous metal (benefication). 4(2012)59~63.
