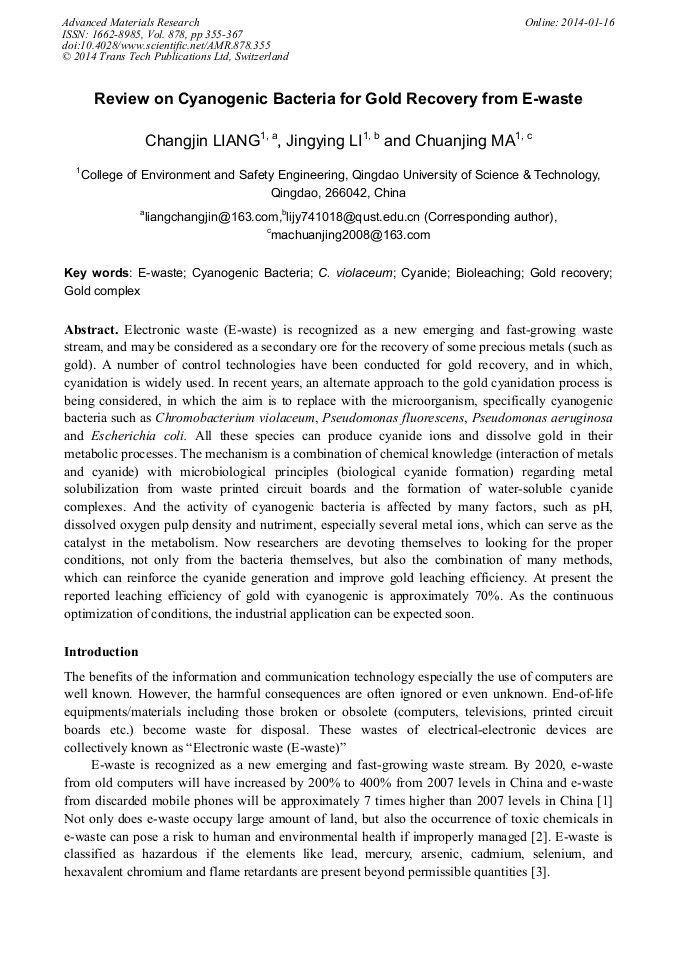

Review on Cyanogenic Bacteria for Gold Recovery from E-Waste

Abstract:

Electronic waste (E-waste) is recognized as a new emerging and fast-growing waste stream, and may be considered as a secondary ore for the recovery of some precious metals (such as gold). A number of control technologies have been conducted for gold recovery, and in which, cyanidation is widely used. In recent years, an alternate approach to the gold cyanidation process is being considered, in which the aim is to replace with the microorganism, specifically cyanogenic bacteria such as Chromobacterium violaceum, Pseudomonas fluorescens, Pseudomonas aeruginosa and Escherichia coli. All these species can produce cyanide ions and dissolve gold in their metabolic processes. The mechanism is a combination of chemical knowledge (interaction of metals and cyanide) with microbiological principles (biological cyanide formation) regarding metal solubilization from waste printed circuit boards and the formation of water-soluble cyanide complexes. And the activity of cyanogenic bacteria is affected by many factors, such as pH, dissolved oxygen pulp density and nutriment, especially several metal ions, which can serve as the catalyst in the metabolism. Now researchers are devoting themselves to looking for the proper conditions, not only from the bacteria themselves, but also the combination of many methods, which can reinforce the cyanide generation and improve gold leaching efficiency. At present the reported leaching efficiency of gold with cyanogenic is approximately 70%. As the continuous optimization of conditions, the industrial application can be expected soon.

• Periodical: Advanced Materials Research (Volume 878)
• Pages: 355-367
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.878.355
• Online since: January 2014
• Authors: Chang Jin Liang, Jing Ying Li, Chuan Jing Ma
• Keywords: Bioleaching, C. violaceum, Cyanide, Cyanogenic Bacteria, E-Waste, Gold Complex, Gold Recovery

References

[1] United Nations Environment Programme, 2012. Urgent need to prepare developing countries for surges in e-waste. http: /www. unep. org/Documents. Multilingual/Default. asp?DocumentID=612&ArticleID=6471. Accessed 15 March (2012).

[2] T.G. Townsend, Environmental issues and management strategies for waste electronic and electrical equipment, Journal of Air & Waste Management Association. 61 (2011) 587-610.

DOI: 10.3155/1047-3289.61.6.587

[3] D. Pant, D. Joshi, M.K. Upreti, R.K. Kotnala, Chemical and biological extraction of metals present in E waste: A hybrid technology, Waste Management. 32 (2012) 979-990.

DOI: 10.1016/j.wasman.2011.12.002

[4] C. Davis, S. Heart, Electronic waste: the local government perspective in Queensland, Australian Resources Conservation Recycling. 52(8-9) (2008) 1031-1039.

DOI: 10.1016/j.resconrec.2008.04.001

[5] S. Syed, Recovery of gold from secondary sources-A review, Hydrometallurgy. 115-116 (2012) 30-51.

DOI: 10.1016/j.hydromet.2011.12.012

[6] Tsydenova, M. Bengtsson, Chemical hazards associated with treatment of waste electrical and electronic equipment, Waste Management. 31 (2011) 45-58.

DOI: 10.1016/j.wasman.2010.08.014

[7] J. Cui, L. Zhang, Metallurgical recovery of metals from electronic waste: a review, Journal of Hazardous Materials. 158 (2008) 228-256.

DOI: 10.1016/j.jhazmat.2008.02.001

[8] J.K. Pradhan, S. Kumar, Metals bioleaching from electronic waste by Chromobacterium violaceum and Pseudomonads sp, Waste Management & Research. 30(11) (2012) 1151-1159.

DOI: 10.1177/0734242x12437565

[9] S. Ilyas, M.A. Anwar, S.B. Niazi, M.A. Ghauri, Bioleaching of metals from electronic scrap by moderately thermophilic acidophilic bacteria, Hydrometallurgy. 88 (2007) 180-188.

DOI: 10.1016/j.hydromet.2007.04.007

[10] M. Barclay, V.A. Tett, C.J. Knowles, Metabolism and enzymology of cyanide/metallocyanide biodegradation by Fusarium solani under neutral and acidic conditions, Enzyme and Microbial Technology. 23 (1998) 321-330.

DOI: 10.1016/s0141-0229(98)00055-6

[11] M.A. Faramarzi, M. Stagars, E. Pensini, W. Krebs, H. Brandl, Metal solubilization from metal-containing solid materials by cyanogenic Chromobacterium violaceum, Journal of Biotechnology. 113 (2004) 321-326.

DOI: 10.1016/j.jbiotec.2004.03.031

[12] T.I. Mudder, M.M. Botz, Cyanide and society: a critical review, The European Journal of Mineral Processing and Environmental Protection. 4(1) (2004) 62-74.

[13] M.D. Urán, A.F. Aljoni-Alario, N.D. Urán, Chromobacterium violaceum and its important metabolites-review, Folia Microbiol. 55 (6) (2010) 535-547.

DOI: 10.1007/s12223-010-0088-4

[14] C. Blumer, D. Haas, Mechanism, regulation, and ecological role of bacterial cyanide biosynthesis, Arch Microbiol. 173 (2000) 170–177.

DOI: 10.1007/s002039900127

[15] C.J. Knowles, A.W. Bunch, Microbial cyanide metabolism, Adv. Microb. Physiol. 27 (1986) 73-111.

[16] M.A. Faramarzi, H. Brandl, Formation of water-soluble metal cyanide complexes from solid minerals by Pseudomonas plecoglossicida, FEMS Microbiol. Lett. 259 (2006) 47-52.

DOI: 10.1111/j.1574-6968.2006.00245.x

[17] D.E. Barnes, P.J. Wright, S.M. Graham, E.A. Jones-Watson, Techniques for the determination of cyanide in a process environment: a review, Geostand Newslett. 24 (2000) 183-195.

DOI: 10.1111/j.1751-908x.2000.tb00770.x

[18] T.B. Creczynski-Pasa, R.V. Antônio, Energetic metabolism of Chromobacterium violaceum, Genetics and Molecular Research. 26(3) (2004) 162-166.

[19] D.T. Chi, J.C. Lee, B.D. Pandey, J. Jeong, K. Yoo, T.H. Huynh, Bacterial cyanide generation in the presence of metal ions (Na+, Mg2+, Fe2+, Pb2+) and gold bioleaching from waste PCBs, Journal of Chemical Engineering of Japan. 44(10) (2011).

DOI: 10.1252/jcej.10we232

[20] Y. Kita, H. Nishikawa, T. Takemoto, Effects of cyanide and dissolved oxygen concentrationon biological Au recovery, Journal of Biotechnology. 124 (2006) 545-551.

DOI: 10.1016/j.jbiotec.2006.01.038

[21] H. Brandl, S. Lehmann, M.A. Faramarzi, D. Martinelli, Biomobilization of silver, gold, and platinum from solid waste materials by HCN-forming microorganisms, Hydrometallurgy. 94 (2008) 14-17.

DOI: 10.1016/j.hydromet.2008.05.016

[22] D.T. Chi, J.C. Lee, B.D. Pandey, K. Yoo, J. Jeong, Bioleaching of gold and copper from waste mobile phone PCBs by using a cyanogenic bacterium, Minerals Engineering. 24 (2011) 1219-1222.

DOI: 10.1016/j.mineng.2011.05.009

[23] Y. Kita, H. Nishikawa, M. Ike, T. Takemoto, Low environmentally impact recovery of gold using cyanide producing bacteria, Environmentally Conscious Design and Inverse Manufacturing. (2005) 935-938.

DOI: 10.1109/ecodim.2005.1619383

[24] Y. Kita, H. Nishikawa, M. Ike, T. Takemoto, Enhancement of Au dissolution by microorganisms using an accelerating cathode reaction, Metallurgical And Materials Transactions B-Process Metallurgy and Materials Processing Science. 40(1) (2008).

DOI: 10.1007/s11663-008-9177-z

[25] E.N. Lawson, M. Barkhuizen, D.W. Dew, Gold Solubilisation by the cyanide producing bacteria Chromobacterium violaceum, Proc. of Int. biohydro-metallurgy Symp., biohydrometallurgy and the environment towards the mining of 21st century, Process Metallurgy. 9, Part 1, Madrid, Spain, 1999, pp.239-246.

DOI: 10.1016/s1572-4409(99)80023-6

[26] V. A. Pham, Y.P. Ting, Gold bioleaching of electronic waste by cyanogenic bacteria and its enhancement with bio-oxidation, Advanced Materials Research. 71-73 (2009) 661-664.

DOI: 10.4028/www.scientific.net/amr.71-73.661

[27] M.A. Faramarzi, H. Brandl, Mobilization of copper and nickel from coins by HCN-forming Pseudomonas plecoglossicida and Chromobacterium violaceum, Journal of Biotechnology. 136 (2008) S703.

DOI: 10.1016/j.jbiotec.2008.07.1632

[28] J. Baxter, S.P. Cummings, The impact of bioaugmentation on metal cyanide degradation and soil bacteria community structure, Biodegradation. 17 (2006) 207–217.

DOI: 10.1007/s10532-005-4219-6

[29] S.C. Campbell, G.J. Olson, T.R. Clark, G. McFeters, Biogenic production of cyanide and its application to gold recovery. Journal of Industrial Microbiology & Biotechnology. 26 (2001)134-139.

DOI: 10.1038/sj.jim.7000104

[30] R. Cipollone, P. Ascenzi, P. Tomao, F. Imperi, P. Visca, Enzymatic detoxification of cyanide: clues from Pseudomonas aeruginosa rhodanese, J Mol Microbiol Biotechnol. 15 (2008)199-211.

DOI: 10.1159/000121331

[31] T. Rudrappa, R.E. Splaine, M.L. Biedrzycki, H.P. Bais, Cyanogenic Pseudomonads influence multitrophic interactions in the rhizosphere, PLoS ONE. 3(4) (2008) 1-11.

DOI: 10.1371/journal.pone.0002073

[32] R. Harris, C.J. Knowles, Isolation and growth of a Pseudomonas species that utilises cyanide as a source of nitrogen, J. Gen. Microbiol. 129 (1983) 1005-1011.

DOI: 10.1099/00221287-129-4-1005

[33] D.A. Kunz, O. Nagappan, J. Silva-Avalos, G.T. deLong, Utilization of cyanide as a nitrogenous substrate by Pseudomonas fluorescens NCIMB 11764: Evidence for multiple pathways of metabolic conversion, Appl. Environ. Microbiol. 58 (1992).

DOI: 10.1128/aem.58.6.2022-2029.1992

[34] W. Lenney, F.J. Gilchrist, Pseudomonas aeruginosa and cyanide production, Eur Respir J. 37 (2011) 482-483.

DOI: 10.1183/09031936.00122810

[35] M.J. Logsdon, K. Hagelstein, T.I. Mudder, The Management of Cyanide in Gold Extraction. ICME Publications, Canada, Ottawa, (1999).

[36] S. Foucher, F. Battaglia-Brunet, Hugues, Evolution of the bacterial population during the batch bioleaching of a cobaltiferous pyriteina suspended-solids bubble column and comparison with a mechanically agitated reactor, Hydrometallurgy. 71 (1-2) (2003).

DOI: 10.1016/s0304-386x(03)00142-7

[37] P. A. Castri, Hydrogen cyanide, a secondary metabolite of Pseudomonas aeruginosa, Can. J. Microbiol. 21 (1975) 613-618.

DOI: 10.1139/m75-088

[38] R.A. Askeland, S.M. Morrison, Cyanide production by Pseudomonas fluorescens and Pseudomonas aeruginosa, Appl Environ Microbiol. 45 (1983) 1802-1807.

DOI: 10.1128/aem.45.6.1802-1807.1983

[39] C. Blumer, D. Hass, Mechanism, regulation, and ecological role of bacterial cyanide biosynthesis, Archives of Microbiology. 173 (2000) 170–177.

DOI: 10.1007/s002039900127

[40] H. Brandl, R. Bosshard, M. Wegmann, Computer-munching microbes: metal leaching from electronic scrap by bacteria and fungi, Hydrometallurgy. 59 (2001): 319-326.

DOI: 10.1016/s0304-386x(00)00188-2

[41] C.M. Zammit, N. Cook, J Brugger, C.L. Ciobanu, F. Reith, The future of biotechnology for gold exploration and processing, Minerals Engineering. 32 (2012) 45–53.

DOI: 10.1016/j.mineng.2012.03.016

[42] J.G. Yang, Y.T. Wu, J. Li, Recovery of ultrafine copper particles from metal components of waste printed circuit boards, Hydrometallurgy. 121-124 (2012) 1-6.

DOI: 10.1016/j.hydromet.2012.04.015
