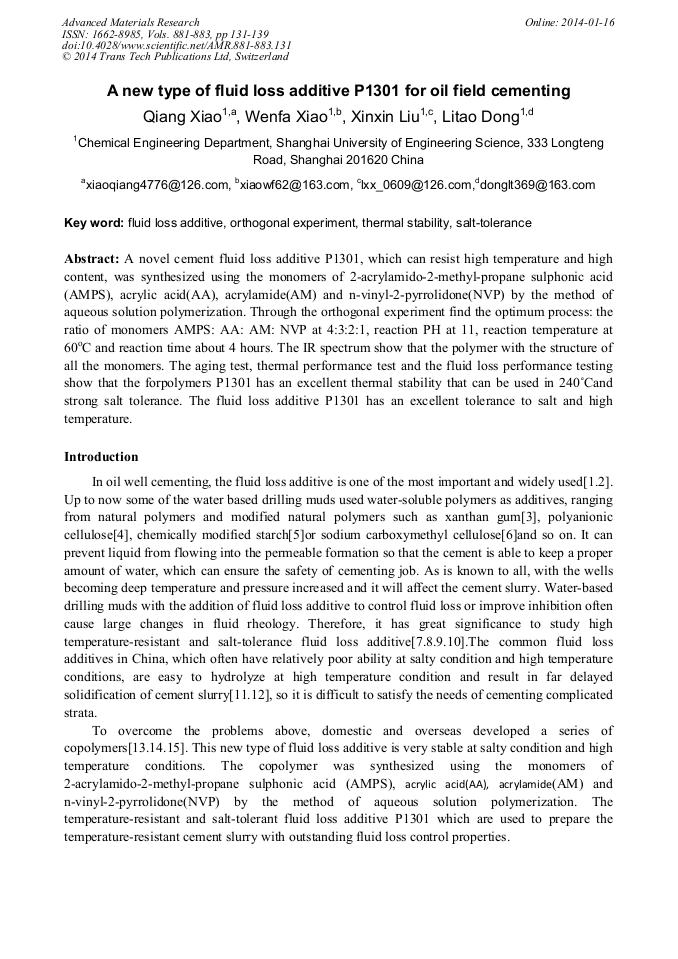

A New Type of Fluid Loss Additive P1301 for Oil Field Cementing

Abstract:

A novel cement fluid loss additive P1301, which can resist high temperature and high salt content, was synthesized using the monomers of 2-acrylamido-2-methyl-propane sulphonic acid (AMPS), acrylic acid (AA), acrylamide (AM) and n-vinyl-2-pyrrolidone (NVP) by the method of aqueous solution polymerization. Through the orthogonal experiment find the optimum process: the ratio of monomers AMPS: AA: AM: NVP at 4:3:2:1, reaction PH at 11, reaction temperature at 60°C and reaction time about 4 hours. The IR spectrum show that the polymer with the structure of all the monomers. The aging test, thermal performance test and the fluid loss performance testing show that the forpolymers P1301 has an excellent thermal stability that can be used in 240°Cand strong salt tolerance. The fluid loss additive P1301 has an excellent tolerance to salt and high temperature.

• Periodical: Advanced Materials Research (Volumes 881-883)
• Pages: 131-139
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.881-883.131
• Online since: January 2014
• Authors: Qiang Xiao*, Wen Fa Xiao, Xin Xin Liu, Li Tao Dong
• Keywords: Fluid Loss Additive, Orthogonal Experiment, Salt-Tolerance, Thermal Stability

References

[1] Arvind D. Patel. Water-based drilling fluids with high temperature fluid loss control additive[P]. US: 5789349, 1998-8- 4.

[2] George W. Bettge, Billy G. Chesser, Charles Perricone. Drilling fluid systems with improved fluid loss properties[P]. US: 7439209, 2008-10-21.

[3] Ochoa, G.F., et al., 2000. Xanthan gum: production, recovery, and properties. Biotechnol. Adv. 18 (7), 549–579.

[4] Roure, I., et al., 1996. Viscometric behavior of dilute polyelectrolytes. Role of electrostatic interactions. Berichte der Bunsengesellschaft für physikalische Chemie 100 (6), 703–706.

DOI: 10.1002/bbpc.19961000604

[5] M. Amanullah and L. Yu, J. Petrol. Sci. Eng., 48, 199(2005).

[6] Kok, M.V., Iscan, G., 2009. Effect of carboxy methyl cellulose and determination of pore throat criteria for water-based drilling fluids. Energy Sources Part A: Recovery Utilization Environ. Eff. 31 (5), 396–405.

DOI: 10.1080/15567030801907254

[7] Kelessidis V C, Tsamantaki C, Michalakis A, et al. Greek lignites as additives for controlling filtration properties of water- bentonite suspensions at high temperatures[J]. The Science and Technology of Fuel and Energy, 2007, 86(7/8): 1112-1121.

DOI: 10.1016/j.fuel.2006.10.009

[8] Nelson, E. B. Guillot, D. Well Cementing. Schlumberger Dowell: Sugar Land, TX, (2006).

[9] Yang Zhiguang, Cui Haiqing, Xiao Zhixing. The study for the strength changing of well cement in the deep and high temperature oil well[J]. Acta Petrolei Sinica, 2008, 29(3): 435-437.

[10] Fink, J. K. Oil Field Chemicals. Gulf Professional Publishing: Burlington, MA, (2003).

[11] Qin Weitang, Zhang Hongjun, Zheng Chengsheng, et al. The summary of well cement fluid loss additive in and out of China[J]. Drilling Fluid & Completion Fluid, 2005, 22(2): 54-58.

[12] Tan Chunqin, Xu Jiang, Sun Wenjun, et al. JSS300: A high temperature and salt resistant fluid loss agent for deep well cement slurry[J]. Petroleum Drilling Techniques, 2009, 37(4): 50-53.

[13] Jintang Guo, Haichuan Lu, Shuoqiong Liu, Jianzhou Jin, Yongjin Yu. The Novel Fluid Loss Additive HTF-200C for Oil Field Cementing[J]. Petrol. Explor. Develop. 2012, 39(3): 385–390.

DOI: 10.1016/s1876-3804(12)60055-x

[14] Oyewole Taye Salami, Johann Plank. Synthesis, Effectiveness, and Working Mechanism of Humic Acid-{sodium 2-acrylamido-2-methylpropane sulfonate-co-N, N-dimethyl acrylamide-co-acrylic acid}Graft Copolymer as High-Temperature Fluid Loss Additive in Oil Well Cementing[J]. Journal of Applied Polymer Science, Vol. 126, 1449–1460 (2012).

DOI: 10.1002/app.36725

[15] Y-M. Wu, B-Q. Zhang,T. Wu, C-G. Zhang. Properties of the forpolymer of N-vinylpyrrolidone with itaconic acid, acrylamide and 2-acrylamido-2methyl-1-propane sulfonic acid as a fluid-loss reducer for drilling fluid at high temperatures[J]. Colliod Polym Sci 279: 836-842(2001).

DOI: 10.1007/s003960100494

[16] American Petroleum Institute. Recommended Practice for Testing Well Cements, 22nd ed.; American Petroleum Institute: Washington, DC, 1997; API Specification 10B.

[17] Tao Wan, Jie Yao, Sun Zishun, Wang Li, Wang Juan. Solution and drilling fluid properties of water soluble AM–AA–SSS copolymers by inverse microemulsion[J]. Journal of Petroleum Science and Engineering, 78 , 2011), 334–337.

DOI: 10.1016/j.petrol.2011.06.027

[18] Bo Peng, Shangping Peng, Bo Long, Yongjing Miao, Wen-Yu Guo. Properties of High-Temperature-Resistant Drilling FluidsIncorporating Acrylamide /(AcrylicAcid) /(2-Acrylamido-2-Methyl-1-Propane Sulfonic Acid) Terpolymer and Aluminum Citrate as Filtration Control Agents[J]. JOURNAL OF VINYL & ADDITIVE TECHNOLOGY-(2010).

DOI: 10.1002/vnl.20199

[19] Johann Plank, Nils Recalde Lummer, Fatima Dugonjic'-Bilic. Competitive Adsorption Between an AMPSVR-Based Fluid Loss Polymer and Welan Gum Biopolymer in Oil Well Cement[J]. Journal of Applied Polymer Science DOI 10. 1002/app.

DOI: 10.1002/app.31865

[20] Johann Plank, Andreas Brandl, Nils Recalde Lummer. Effect of Different Anchor Groups on Adsorption Behavior and Effectiveness of Poly(N, N-dimethylacrylamide-co-Ca 2-acrylamido-2- methylpropanesulfonate) as Cement Fluid Loss Additive in Presence of Acetone–Formaldehyde–Sulfite Dispersant[J]. Journal of Applied Polymer Science, Vol. 106, 3889–3894 (2007).

DOI: 10.1002/app.26897
