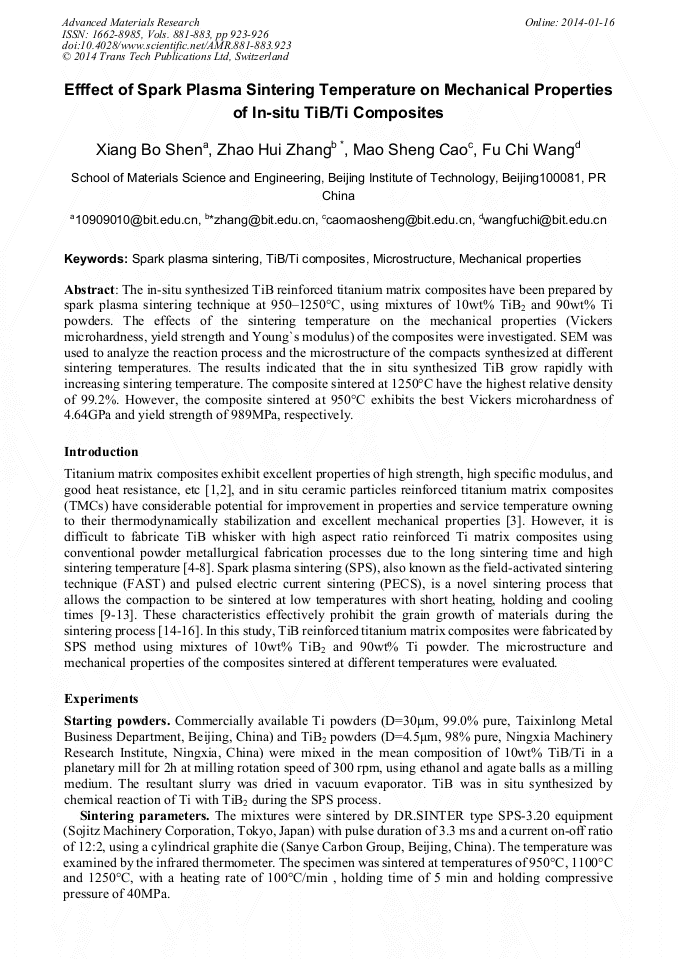

Efffect of Spark Plasma Sintering Temperature on Mechanical Properties of In Situ TiB/Ti Composites

Abstract:

The in-situ synthesized TiB reinforced titanium matrix composites have been prepared by spark plasma sintering technique at 950–1250°C, using mixtures of 10wt% TiB2 and 90wt% Ti powders. The effects of the sintering temperature on the mechanical properties (Vickers microhardness, yield strength and Young`s modulus) of the composites were investigated. SEM was used to analyze the reaction process and the microstructure of the compacts synthesized at different sintering temperatures. The results indicated that the in situ synthesized TiB grow rapidly with increasing sintering temperature. The composite sintered at 1250°C have the highest relative density of 99.2%. However, the composite sintered at 950°C exhibits the best Vickers microhardness of 4.64GPa and yield strength of 989MPa, respectively.

• Periodical: Advanced Materials Research (Volumes 881-883)
• Pages: 923-926
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.881-883.923
• Online since: January 2014
• Authors: Xiang Bo Shen, Zhao Hui Zhang*, Mao Sheng Cao, Fu Chi Wang
• Keywords: Mechanical Property, Microstructure, Spark Plasma Sintering (SPS), TiB-Ti Composites

References

[1] W.O. Soboyejo, R.J. Lederich and S.M.L. Sastry: Acta mater, Vol. 42 (1994) No. 8, p.2579.

[2] F.C. Ma, P. Liu, W. Li, X.K. Liu, X. H Chen and D. Zhang: Materials Transactions, Vol. 55 (2010) No. 7, p.1277.

[3] S.C. Tjong and Z.Y. Ma: Mater. Sci. Eng., R, Vol. 29 (2000) No. 3-4, p.49.

[4] S. Gorsse, J.P. Chaminade and Y.L. Petitcorps: Appl. Sci. Manuf., Vol. 29 (1998) No. 9-10, p.1229.

[5] S. Tamirisakandala, D.B. Miracle, R. Srinivasan and J.S. Gunasekera: Adv. Mater. Proc, Vol. 162 (2006), p.41.

[6] C.J. Boehlert,S. Tamirisakandala W.A. Curtin and D.B. Miracle: Scripta Mater, Vol. 61 (20009) No. 3, p.245.

[8] S. Gorsse and D.B. Miracle: Acta Mater, Vol. 51 (2003) No. 9, p.2427.

[9] W.L. Bradbury and E.A. Olevsky: Scripta Mater, Vol. 63 (2010) No. 1, p.77.

[10] M. Belmonte, M.I. Osendi and P. Miranzo: Scripta Mater, Vol. 65 (2011) No. 3, p.273.

[11] E. Khaleghi, Y.S. Lin, M.A. Meyers and E.A. Olevskya: Scripta Mater, Vol. 63 (2010) No. 6, p.577.

[12] L. Ramond, G. Bernard-Granger, A. Addad and C. Guizard: Acta Mater, Vol. 58 (2010) No. 15, p.5120.

DOI: 10.1016/j.actamat.2010.05.047

[13] J.G. Santanach, A. Weibel, C. Estourne`s, Q. Yang, Ch. Laurent and A. Peigney: Acta Mater, Vol. 59 (2011) No. 4, p.1400.

[14] Z.H. Zhang, L. Qi, X.B. Shen, F.C. Wang and S.K. Lee: Mater. Sci. Eng., A, Vol. 573 (2013), p.12.

[15] T. Hungria, H. Amorin, M. Alguero and A. Castro: Scripta Mater, Vol. 64 (2011) No. 1, p.97.

[16] Y. Long, H.Y. Zhang, T. Wang, X.L. Huang, Y.Y. Li, J.S. Wu and H.B. Chen: Mater. Sci. Eng., A, Vol. 585 (2013) , p.408.

[17] K. Rajan, V.S. Sarma, T.R.G. Kutty and B.S. Murty: Mater. Sci. Eng., A, Vol. 558 (2012), p.492.
