For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Dynamics of Phase Transformation in Cu-Cr-Zr Alloy
p.333
Effects of Structures of Zinc/Substrate Interface on Coating Adhesion of Hot-Dip Galvanized DP Steels
p.338
Cube Texture Formation of Cu-33at.%Ni Alloy Substrates and CeO2 Buffer Layer for YBCO Coated Conductors
p.345
Research on the Microstructure and Properties of Hypereutectic Al-Si Alloy for Semi-Solid Forming during Heat Treatment
p.349
Corrosion Behavior of Incoloy 800 in Molten Nitrate Salt
p.357
Effect of Ti on the Structure and Properties of Cu-15Ni-10Mn Alloy As-Cast Smelted at Atmosphere
p.362
Influence of Etchants on Phase Morphology of Casting Ni-Based Superalloy
p.366
The Measured Change in d-Electron of Ni in Ni-7.2at%Ti Alloy Studied by Electron Energy Loss Spectroscopy
p.370
Effect of Homogenization Annealing on Microstructure and Property of Cu-7.5Ni-5Sn Alloy
p.374

Corrosion Behavior of Incoloy 800 in Molten Nitrate Salt

Article Preview

Abstract:

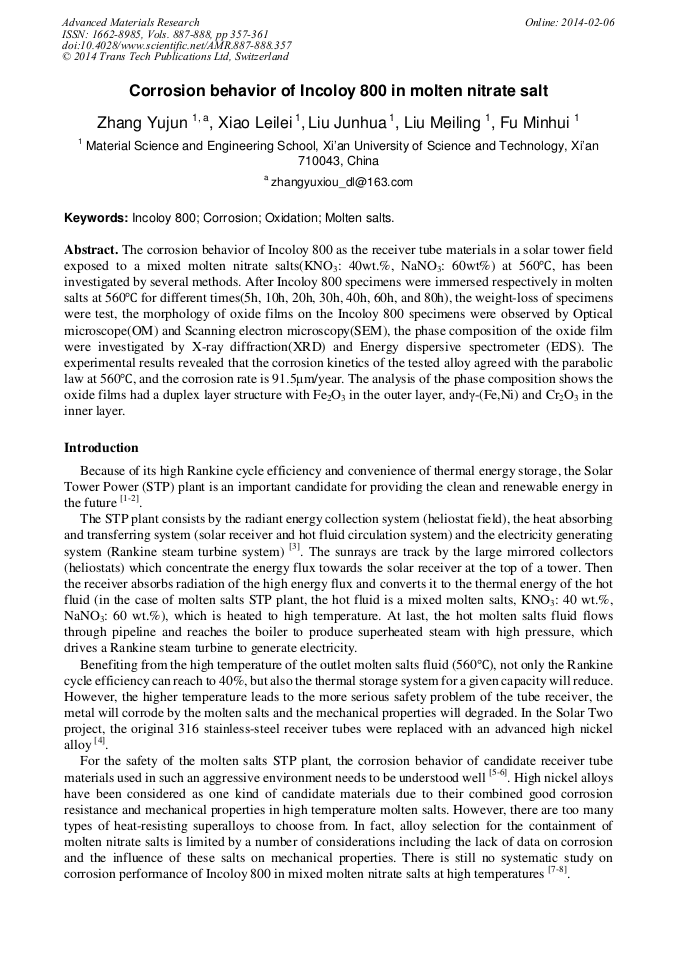

The corrosion behavior of Incoloy 800 as the receiver tube materials in a solar tower field exposed to a mixed molten nitrate salts (KNO3: 40wt.%, NaNO3: 60wt%) at 560°C, has been investigated by several methods. After Incoloy 800 specimens were immersed respectively in molten salts at 560°C for different times (5h, 10h, 20h, 30h, 40h, 60h, and 80h), the weight-loss of specimens were test, the morphology of oxide films on the Incoloy 800 specimens were observed by Optical microscope (OM) and Scanning electron microscopy (SEM), the phase composition of the oxide film were investigated by X-ray diffraction (XRD) and Energy dispersive spectrometer (EDS). The experimental results revealed that the corrosion kinetics of the tested alloy agreed with the parabolic law at 560°C, and the corrosion rate is 91.5μm/year. The analysis of the phase composition shows the oxide films had a duplex layer structure with Fe2O3 in the outer layer, andγ-(Fe,Ni) and Cr2O3 in the inner layer.

You might also be interested in these eBooks
Advances in Materials and Materials Processing IV View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 887-888)

Pages:

357-361

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.887-888.357

Citation:

Cite this paper

Online since:

February 2014

Authors:

Yu Jun Zhang*, Lei Lei Xiao, Jun Hua Liu, Mei Ling Liu, Min Hui Fu

Keywords:

Corrosion, Incoloy 800, Molten Salts, Oxidation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] J. Lata, S. Alcalde, D. Fernández and X. Lekube: The 16th SolarPACES Conference, Perpignan, (2010).

Google Scholar

[2] V.S. Reddy, S.C. Kaushik, K.R. Ranjan, S.K. Tyagi: Renewable and Sustainable Energy Reviews, Vol. 27 (2013), p.258.

Google Scholar

[3] M.L. Yang, X.X. Yang, S.S. Zhang: Journal of Shaanxi University of Science & Technology, Vol. 26 (2008), p.21.

Google Scholar

[4] Z. Yang, S.V. Garimella: Applied Energy, Vol. 103 (2013), p.256.

Google Scholar

[5] S. Kuravi, J. Trahan, D.Y. Goswami, M. M Rahman, E.K. Stefanakos: Progress in Energy and Combustion Science, Vol. 39 (2013), p.285.

DOI: 10.1016/j.pecs.2013.02.001

Google Scholar

[6] T. Tzvetkoff, P. Gencheva: Materials Chemistry and Physics, Vol. 83 (2003), p.897.

Google Scholar

[7] E.M. Zahrani, A.M. Alfantazi: Corrosion Science, Vol. 65 (2012), p.340.

Google Scholar

[8] E. Asselin a, A. Alfantazi a, S. Rogak: Corrosion Science, Vol. 52 (2010), p.118.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
