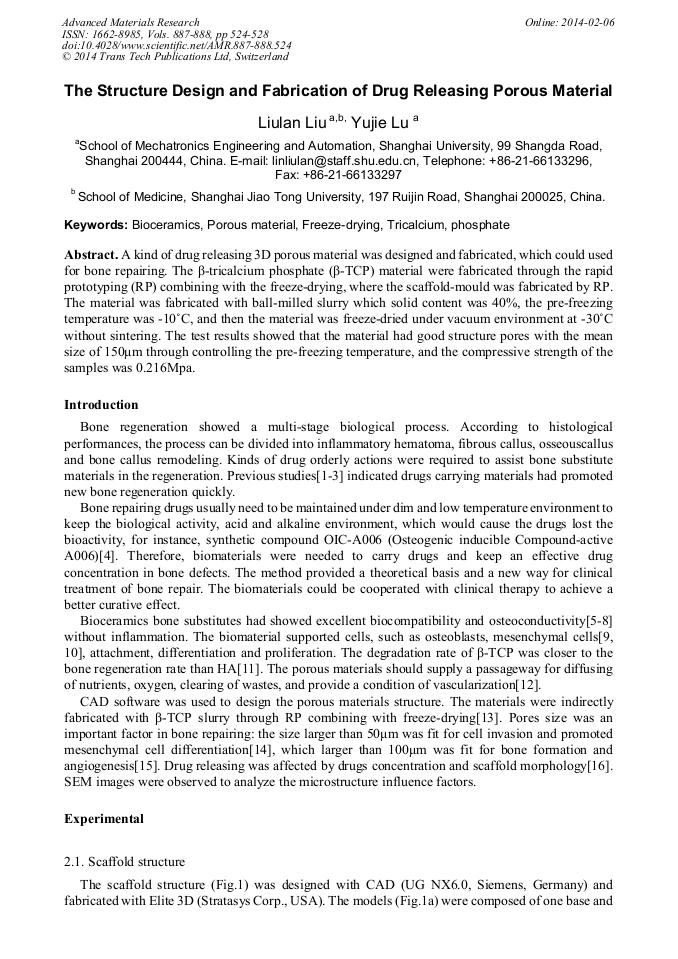

The Structure Design and Fabrication of Drug Releasing Porous Material

Abstract:

A kind of drug releasing 3D porous material was designed and fabricated, which could used for bone repairing. The β-tricalcium phosphate (β-TCP) material were fabricated through the rapid prototyping (RP) combining with the freeze-drying, where the scaffold-mould was fabricated by RP. The material was fabricated with ball-milled slurry which solid content was 40%, the pre-freezing temperature was-10°C, and then the material was freeze-dried under vacuum environment at-30°C without sintering. The test results showed that the material had good structure pores with the mean size of 150μm through controlling the pre-freezing temperature, and the compressive strength of the samples was 0.216Mpa.

• Periodical: Advanced Materials Research (Volumes 887-888)
• Pages: 524-528
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.887-888.524
• Online since: February 2014
• Authors: Liu Lan Lin*, Yu Jie Lu
• Keywords: Bioceramic, Freeze-Drying, Phosphate, Porous Material, Tricalcium

References

[1] Ikeda, Y., Tajima, S., Yoshida, S., Yamano, N., Kihira, Y., Ishizawa, K., Aihara, K. -i., Tomita, S., Tsuchiya, K. and Tamaki, T. Deferoxamine promotes angiogenesis via the activation of vascular endothelial cell function. Atherosclerosis, 2011, 215(2), 339-347.

DOI: 10.1016/j.atherosclerosis.2011.01.009

[2] Li, Z., Lu, W., Deng, L., Chiu, P., Fang, D., Lam, R., Leong, J. and Luk, K. The morphology and lattice structure of bone crystal after strontium treatment in goats. Journal of Bone and Mineral Metabolism, 2010, 28(1), 25-34.

DOI: 10.1007/s00774-009-0109-z

[3] Mouriño, V. and Boccaccini, A.R. Bone tissue engineering therapeutics: controlled drug delivery in three-dimensional scaffolds. Journal of The Royal Society Interface, 2010, 7(43), 209-227.

DOI: 10.1098/rsif.2009.0379

[4] Cai, M., Liu, X., Shao, J., Qi, J., Wang, J., Zhu, Y., Zhou, Q., Wang, J., Zhao, Q. and Li, G. OIC-A006 promotes osteogenesis in vitro and in vivo. Die Pharmazie-An International Journal of Pharmaceutical Sciences, 2008, 63(10), 751-756.

[5] Kinoshita, Y., Matsuo, M., Todoki, K., Ozono, S., Fukuoka, S., Tsuzuki, H., Nakamura, M., Tomihata, K., Shimamoto, T. and Ikada, Y. Alveolar bone regeneration using absorbable poly(L-lactide-co-epsilon-caprolactone)/beta-tricalcium phosphate membrane and gelatin sponge incorporating basic fibroblast growth factor. Int J Oral Maxillofac Surg, 2008, 37(3), 275-281.

DOI: 10.1016/j.ijom.2007.11.010

[6] Ginebra, M.P., Traykova, T. and Planell, J.A. Calcium phosphate cements as bone drug delivery systems: a review. J Control Release, 2006, 113(2), 102-110.

DOI: 10.1016/j.jconrel.2006.04.007

[7] Henkel, K.O., Gerber, T., Lenz, S., Gundlach, K.K. and Bienengraber, V. Macroscopical, histological, and morphometric studies of porous bone-replacement materials in minipigs 8 months after implantation. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 2006, 102(5), 606-613.

DOI: 10.1016/j.tripleo.2005.10.034

[8] Cao, H. and Kuboyama, N. A biodegradable porous composite scaffold of PGA/beta-TCP for bone tissue engineering. Bone, 2010, 46(2), 386-395.

DOI: 10.1016/j.bone.2009.09.031

[9] Wu, X., Liu, Y., Li, X., Wen, P., Zhang, Y., Long, Y., Wang, X., Guo, Y., Xing, F. and Gao, J. Preparation of aligned porous gelatin scaffolds by unidirectional freeze-drying method. Acta Biomater, 2010, 6(3), 1167-1177.

DOI: 10.1016/j.actbio.2009.08.041

[10] Gerber, T., Holzhüter, G., Knoblich, B., Dörfling, P., Bienengräber, V. and Henkel, K.O. Development of bioactive sol-gel material template for in vitro and in vivo synthesis of bone material. Journal of Sol-Gel Science and Technology, 2000, 19(1), 441-445.

DOI: 10.1023/a:1008799513932

[11] Wiltfang, J., Merten, H.A., Schlegel, K.A., Schultze-Mosgau, S., Kloss, F.R., Rupprecht, S. and Kessler, P. Degradation characteristics of α and β tri-calcium-phosphate (TCP) in minipigs. Journal of Biomedical Materials Research, 2002, 63(2), 115-121.

DOI: 10.1002/jbm.10084

[12] Wang, J., Valmikinathan, C.M., Liu, W., Laurencin, C.T. and Yu, X. Spiral-structured, nanofibrous, 3D scaffolds for bone tissue engineering. J Biomed Mater Res A, 2010, 93(2), 753-762.

DOI: 10.1002/jbm.a.32591

[13] Ambre, A.H., Katti, K.S. and Katti, D.R. Nanoclay Based Composite Scaffolds for Bone Tissue Engineering Applications. Journal of Nanotechnology in Engineering and Medicine, 2010, 1(3), 031013.

DOI: 10.1115/1.4002149

[14] Karageorgiou, V. and Kaplan, D. Porosity of 3D biomaterial scaffolds and osteogenesis. Biomaterials, 2005, 26(27), 5474-5491.

DOI: 10.1016/j.biomaterials.2005.02.002

[15] Santos, M.I. and Reis, R.L. Vascularization in bone tissue engineering: physiology, current strategies, major hurdles and future challenges. Macromol Biosci, 2010, 10(1), 12-27.

DOI: 10.1002/mabi.200900107

[16] Davis, H.E. and Leach, J.K. Designing bioactive delivery systems for tissue regeneration. Ann Biomed Eng, 2011, 39(1), 1-13.

DOI: 10.1007/s10439-010-0135-y
