Cyclic Deformation of a Modern TiAl Alloy at High Temperatures

Article Preview

Abstract:

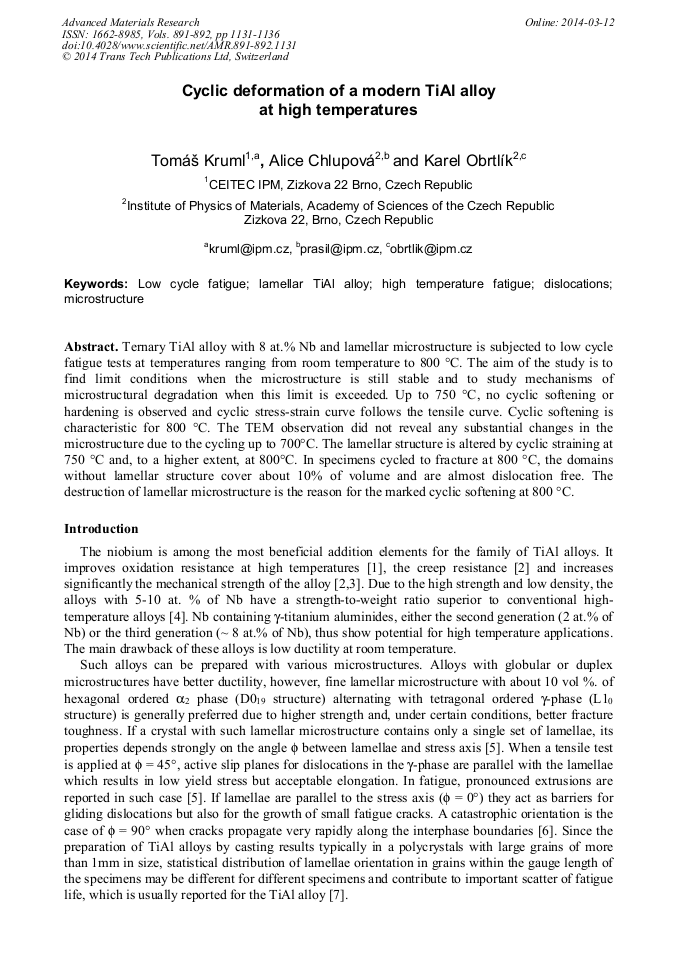

Ternary TiAl alloy with 8 at.% Nb and lamellar microstructure is subjected to low cycle fatigue tests at temperatures ranging from room temperature to 800 °C. The aim of the study is to find limit conditions when the microstructure is still stable and to study mechanisms of microstructural degradation when this limit is exceeded. Up to 750 °C, no cyclic softening or hardening is observed and cyclic stress-strain curve follows the tensile curve. Cyclic softening is characteristic for 800 °C. The TEM observation did not reveal any substantial changes in the microstructure due to the cycling up to 700°C. The lamellar structure is altered by cyclic straining at 750 °C and, to a higher extent, at 800°C. In specimens cycled to fracture at 800 °C, the domains without lamellar structure cover about 10% of volume and are almost dislocation free. The destruction of lamellar microstructure is the reason for the marked cyclic softening at 800 °C.

You might also be interested in these eBooks

Info:

Periodical:

Advanced Materials Research (Volumes 891-892)

Pages:

1131-1136

Citation:

Online since:

March 2014

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] M. Yoshihara, K. Miura, Effects of Nb addition on oxidation behavior of TiAl, Intermetallics 3 (1995) 357–63.

DOI: 10.1016/0966-9795(95)94254-c

Google Scholar

[2] F. Appel, J. Paul, M. Oehring, H. Clemens, F. Fischer, Physical metallurgy of high Nb-containing TiAl alloys, Z. Met. 7 (2004) 585–591.

DOI: 10.1515/ijmr-2004-0113

Google Scholar

[3] G. Chen, W. Zhang, Y. Wang, J. Wang, Z. Sun, Ti-Al-Nb intermetallic alloys based on the ternary intermetallic compound, in: Struct. Intermet., TMS, Warrendale, 1993, p.319–324.

Google Scholar

[4] M. Roth, H. Biermann, Thermo-mechanical fatigue behaviour of a modern γ-TiAl alloy, Int. J. Fatigue 30 (2008) 352–356.

DOI: 10.1016/j.ijfatigue.2007.01.049

Google Scholar

[5] H. Yasuda, T. Nakano, Y. Umakoshi, Cyclic Deformation-Behavior of Ti-Al Alloys Containing Oriented Lamellae, Philos. Mag. -Phys. Condens. Matter Struct. Defects Mech. Prop. 71 (1995) 127–138.

DOI: 10.1080/01418619508242960

Google Scholar

[6] Y. Umakoshi, H.Y. Yasuda, T. Nakano, Plastic anisotropy and fatigue of TiAl PST crystals: a review, Intermetallics 4, (1996), S65–S75.

DOI: 10.1016/0966-9795(96)00012-x

Google Scholar

[7] G. Hénaff, A. -L. Gloanec, Fatigue properties of TiAl alloys, Intermetallics. 13 (2005) 543–558.

DOI: 10.1016/j.intermet.2004.09.007

Google Scholar

[8] T. Kruml, K. Obrtlik, M. Petrenec, J. Polak, Low-cycle fatigue properties of TiAl alloy with high Nb content, Int. J. Mater. Res. 100 (2009) 349–352.

DOI: 10.3139/146.110019

Google Scholar

[9] F. Appel, T.K. Heckel, H. -J. Christ, Electron microscope characterization of low cycle fatigue in a high-strength multiphase titanium aluminide alloy, Int. J. Fatigue 32 (2010) 792–798.

DOI: 10.1016/j.ijfatigue.2009.04.001

Google Scholar
