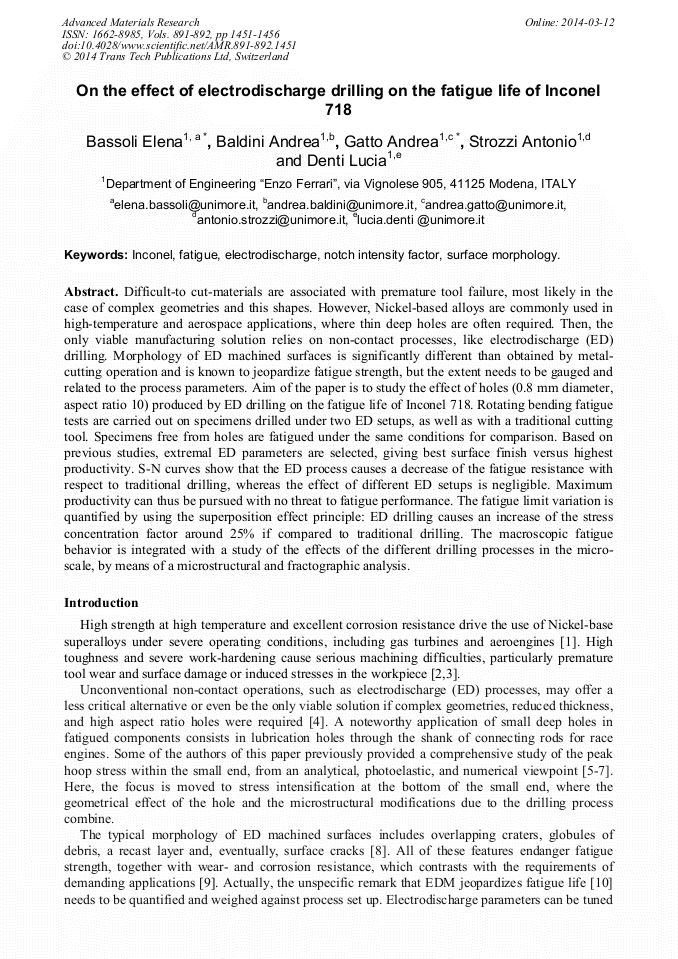

On the Effect of Electrodischarge Drilling on the Fatigue Life of Inconel 718

Abstract:

Difficult-to cut-materials are associated with premature tool failure, most likely in the case of complex geometries and this shapes. However, Nickel-based alloys are commonly used in high-temperature and aerospace applications, where thin deep holes are often required. Then, the only viable manufacturing solution relies on non-contact processes, like electrodischarge (ED) drilling. Morphology of ED machined surfaces is significantly different than obtained by metal-cutting operation and is known to jeopardize fatigue strength, but the extent needs to be gauged and related to the process parameters. Aim of the paper is to study the effect of holes (0.8 mm diameter, aspect ratio 10) produced by ED drilling on the fatigue life of Inconel 718. Rotating bending fatigue tests are carried out on specimens drilled under two ED setups, as well as with a traditional cutting tool. Specimens free from holes are fatigued under the same conditions for comparison. Based on previous studies, extremal ED parameters are selected, giving best surface finish versus highest productivity. S-N curves show that the ED process causes a decrease of the fatigue resistance with respect to traditional drilling, whereas the effect of different ED setups is negligible. Maximum productivity can thus be pursued with no threat to fatigue performance. The fatigue limit variation is quantified by using the superposition effect principle: ED drilling causes an increase of the stress concentration factor around 25% if compared to traditional drilling. The macroscopic fatigue behavior is integrated with a study of the effects of the different drilling processes in the micro-scale, by means of a microstructural and fractographic analysis.

• Periodical: Advanced Materials Research (Volumes 891-892)
• Pages: 1451-1456
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.891-892.1451
• Online since: March 2014
• Authors: Elena Bassoli*, Andrea Baldini, Andrea Gatto, Antonio Strozzi, Lucia Denti
• Keywords: Electrodischarge, Fatigue, Inconel, Notch Intensity Factor, Surface Morphology

References

[1] E. Bassoli, N. Sewell, L. Denti, A. Gatto, Investigation into the failure of Inconel exhaust collector produced by laser consolidation, Eng. Fail. Anal. special issue ICEFA V, in press.

DOI: 10.1016/j.engfailanal.2013.03.025

[2] M. Rahman, W.K.H. Seah, T.T. Teo, The machinability of inconel 718, J. Mater. Process. Tech. 63 (1997) 199-204.

DOI: 10.1016/s0924-0136(96)02624-6

[3] J. Kwong, D.A. Axinte, P.J. Withers, The sensitivity of Ni-based superalloy to hole making operations: Influence of process parameters on subsurface damage and residual stress, J. Mater. Process. Technol. 209 (2009) 3968-3977.

DOI: 10.1016/j.jmatprotec.2008.09.014

[4] F. Calignano, L. Denti, E. Bassoli, A. Gatto, L. Iuliano, Studies on electro discharge drilling of an Al2O3 –TiC composite, Int. J. Adv. Manuf. Tech. 66 (2013) 1757-1768.

DOI: 10.1007/s00170-012-4455-y

[5] A. Strozzi, F. De Bona, Hoop stresses in the con-rod small end, P. I. MECH. ENG. D-J. Aut. 219 (2005) 1331-1345.

DOI: 10.1243/095440705x34973

[6] A. Pioli, A. Strozzi, A. Baldini, M. Giacopini, R. Rosi, Influence of the initial clearance on the peak stress in connecting-rod small ends, P. I. MECH. ENG. D-J. Aut. 223 (2009) 769-782.

DOI: 10.1243/09544070jauto1048

[7] L. Marmorini, A. Baldini, E. Bertocchi, M. Giacopini, R. Rosi, A. Strozzi, On the loosening mechanism of a bush press-fitted in the small end of a connecting rod, P. I. MECH. ENG. D-J. Aut. 226 (2012) 312-324.

DOI: 10.1177/0954407011417498

[8] T.Y. Tai, S.J. Lu, Improving the fatigue life of electro-discharge-machined SDK11 tool steel via the suppression of surface cracks, Int. J. Fatigue 31 (2009) 433-438.

DOI: 10.1016/j.ijfatigue.2008.07.013

[9] M.A. S Torres, H.J. C Voorwald, An evaluation of shot peening, residual stress and stress relaxation on the fatigue life of AISI 4340 steel, Int. J. Fatigue 24 (2002) 877-886.

DOI: 10.1016/s0142-1123(01)00205-5

[10] S. Jeelani, M.R. Collins, Effect of electric discharge machining on the fatigue life of Inconel 718, Int. J. Fatigue 10 (1988) 121–125.

DOI: 10.1016/0142-1123(88)90040-0

[11] O.A. Abu Zeid, On the effect of electrodischarge machining parameters on the fatigue life of AISI D6 tool steel, J. Mater. Process. Technol. 68 (1997) 27–32.

DOI: 10.1016/s0924-0136(96)02523-x

[12] P. Kuppan, A. Rajadurai, S. Narayanan, Influence of EDM process parameters in deep hole drilling of Inconel 718, Int. J. Adv. Manuf. Tech. 38 (2008) 74-84.

DOI: 10.1007/s00170-007-1084-y

[13] E. Bassoli, L. Denti, A. Gatto, L. Iuliano, Influence of electrode size and geometry in EDD of Inconel 718, submitted to J. Mater. Process. Technol.

DOI: 10.1007/s00170-016-8339-4

[14] ISO 1143: 2010 - Metallic materials – Rotating bar bending fatigue testing.

[15] A. Gatto, L. Iuliano, F. Calignano, E. Bassoli, Electro-Discharge Drilling performance on parts produced by DMLS, Int. J. Adv. Manuf. Tech. 58 (2012) 1003-1018.

DOI: 10.1007/s00170-011-3446-8
