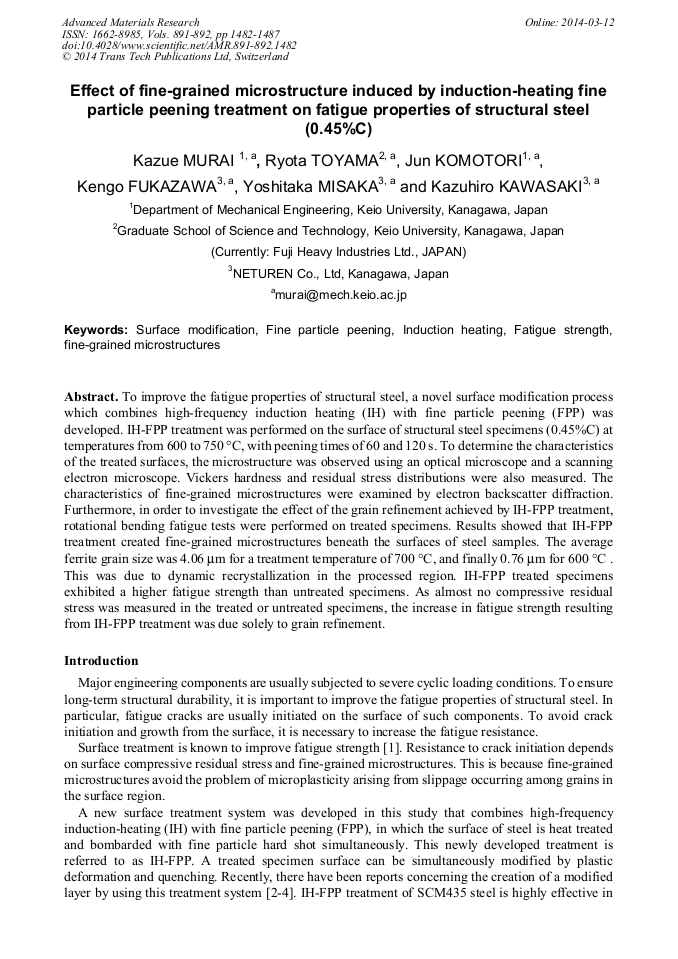

Effect of Fine-Grained Microstructure Induced by Induction-Heating Fine Particle Peening Treatment on Fatigue Properties of Structural Steel (0.45%C)

Abstract:

To improve the fatigue properties of structural steel, a novel surface modification process which combines high-frequency induction heating (IH) with fine particle peening (FPP) was developed. IH-FPP treatment was performed on the surface of structural steel specimens (0.45%C) at temperatures from 600 to 750 °C, with peening times of 60 and 120 s. To determine the characteristics of the treated surfaces, the microstructure was observed using an optical microscope and a scanning electron microscope. Vickers hardness and residual stress distributions were also measured. The characteristics of fine-grained microstructures were examined by electron backscatter diffraction. Furthermore, in order to investigate the effect of the grain refinement achieved by IH-FPP treatment, rotational bending fatigue tests were performed on treated specimens. Results showed that IH-FPP treatment created fine-grained microstructures beneath the surfaces of steel samples. The average ferrite grain size was 4.06 μm for a treatment temperature of 700 °C, and finally 0.76 μm for 600 °C . This was due to dynamic recrystallization in the processed region. IH-FPP treated specimens exhibited a higher fatigue strength than untreated specimens. As almost no compressive residual stress was measured in the treated or untreated specimens, the increase in fatigue strength resulting from IH-FPP treatment was due solely to grain refinement.

• Periodical: Advanced Materials Research (Volumes 891-892)
• Pages: 1482-1487
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.891-892.1482
• Online since: March 2014
• Authors: Kazue Murai, Ryota Toyama, Jun Komotori, Kengo Fukazawa, Yoshitaka Misaka, Kazuhiro Kawasaki
• Keywords: Fatigue Strength, Fine Particle Peening, Fine-Grained Microstructures, Induction Heating, Surface Modification

References

[1] A. Wick, V. Schulze, O. Vohringer, Material Science and Engineering, A293(2000), 191-197.

[2] S. Kikuchi, A. Sasago, J. Komotori, Materials Processing Technology, 209(2009), 6156-6160.

[3] Y. Kameyama, Y. Amano, J. Komotori, K. Fukazawa, Y. Misaka, K. Kawasaki, Journal of Japan Institute of Metals, Vol. 77, No. 1(2013), 7-13.

[4] S. Kikuchi, T. Fukuoka, T. Sasaki, J. Komotori, K. Fukazawa, Y. Misaka, K. Kawasaki, Material Transactions, Vol. 54, No. 3(2013), 344-349.

DOI: 10.2320/matertrans.mbw201205

[5] T. Harada, S. Kikuchi, J. Komotori, K. Fukazawa, Y. Misaka, K. Kawasaki, Journal of the Society of Material Science JAPAN, Vol. 60, No. 12(2011), 1091-1096.
