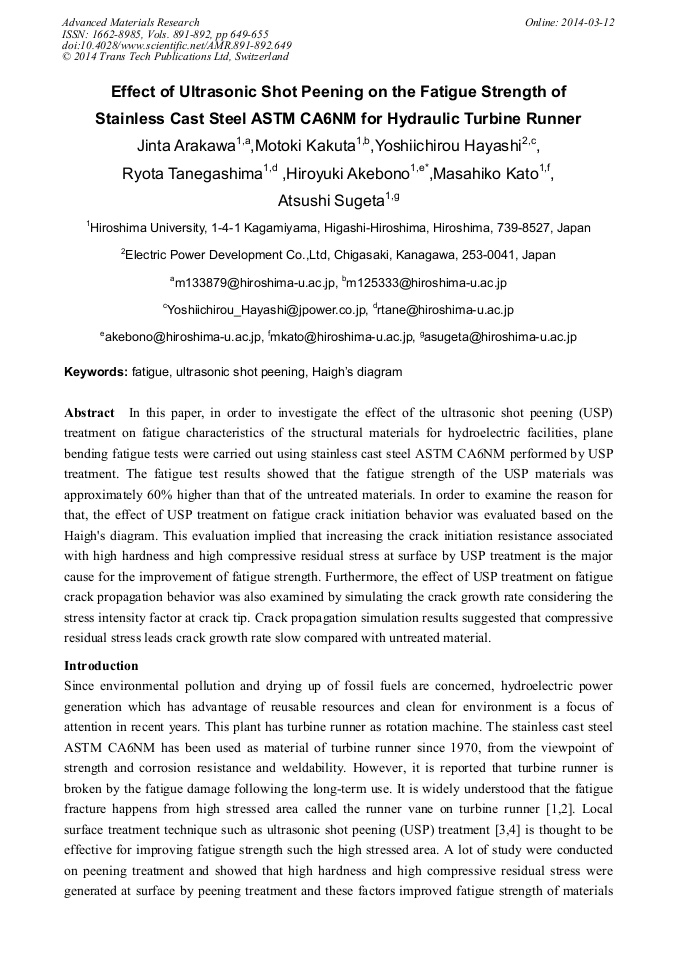

Effect of Ultrasonic Shot Peening on the Fatigue Strength of Stainless Cast Steel ASTM CA6NM for Hydraulic Turbine Runner

Abstract:

In this paper, in order to investigate the effect of the ultrasonic shot peening (USP) treatment on fatigue characteristics of the structural materials for hydroelectric facilities, plane bending fatigue tests were carried out using stainless cast steel ASTM CA6NM performed by USP treatment. The fatigue test results showed that the fatigue strength of the USP materials was approximately 60% higher than that of the untreated materials. In order to examine the reason for that, the effect of USP treatment on fatigue crack initiation behavior was evaluated based on the Haigh's diagram. This evaluation implied that increasing the crack initiation resistance associated with high hardness and high compressive residual stress at surface by USP treatment is the major cause for the improvement of fatigue strength. Furthermore, the effect of USP treatment on fatigue crack propagation behavior was also examined by simulating the crack growth rate considering the stress intensity factor at crack tip. Crack propagation simulation results suggested that compressive residual stress leads crack growth rate slow compared with untreated material.

• Periodical: Advanced Materials Research (Volumes 891-892)
• Pages: 649-655
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.891-892.649
• Online since: March 2014
• Authors: Jinta Arakawa, Motoki Kakuta, Yoshiichirou Hayashi, Ryota Tanegashima, Hiroyuki Akebono, Masahiko Kato, Atsushi Sugeta
• Keywords: Fatigue, Haigh’s Diagram, Ultrasonic Shot Peening

References

[1] John W.H. Price, The failure of the Dartmouth turbine casing, International Journal of Pressure Vessels and Piping, Vol. 75, 1998, pp.559-566.

DOI: 10.1016/s0308-0161(98)00048-9

[2] A. Wickström, Structural analysis of francis turbine runners using ADINA, Computers & Structures, Vol. 64, 1997, pp.1087-1095.

DOI: 10.1016/s0045-7949(97)00019-9

[3] Bohdan N. Mordyuk, Georgiy I. Prokopenko, Ultrasonic impact peening for the surface properties' management, Sound and Vibration, Vol. 308, 2007, pp.855-866.

DOI: 10.1016/j.jsv.2007.03.054

[4] N. R Tao, M. L Sui, J Lu, K Lua, Surface nanocrystallization of iron induced by ultrasonic shot peening, Nanostructured Materials, Vol. 11, 1999, pp.433-440.

DOI: 10.1016/s0965-9773(99)00324-4

[5] Sougata Roy, John W Fisher, Ben T Yen, Fatigue resistance of welded details enhanced by ultrasonic impact treatment (UIT), International Journal of Fatigue, Vol. 25, 2003, pp.1239-1247.

DOI: 10.1016/s0142-1123(03)00151-8

[6] M. Liao, W.R. Chen, N.C. Bellinger, Effects of ultrasonic impact treatment on fatigue behavior of naturally exfoliated aluminum alloys, International Journal of Fatigue, Vol. 30, 2008, pp.717-726.

DOI: 10.1016/j.ijfatigue.2007.05.002

[7] S. Bagherifard, I. Fernandez-Pariente, R. Ghelichi, M. Guagliano, Effect of severe shot peening on microstructure and fatigue strength of cast iron, Fatigue, (2013).

DOI: 10.1016/j.ijfatigue.2013.08.022

[8] Yasuo Ochi, Kiyotaka Masaki, Takashi Matsumura, Takeshi Sekino, Effect of shot-peening treatment on high cycle fatigue property of ductile cast iron, Fatigue, Vol. 23, 2001, pp.441-448.

DOI: 10.1016/s0142-1123(00)00110-9
