Fractographic Study on the Use of Rainflow Counting for Small and Long Cracks in AA7050

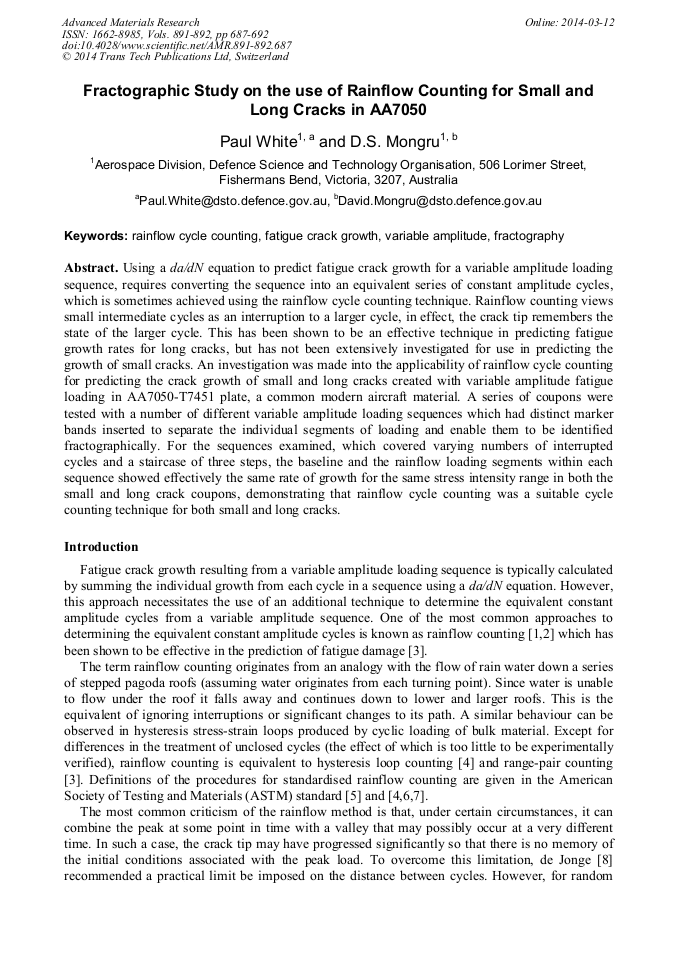

Abstract:

Using a da/dN equation to predict fatigue crack growth for a variable amplitude loading sequence, requires converting the sequence into an equivalent series of constant amplitude cycles, which is sometimes achieved using the rainflow cycle counting technique. Rainflow counting views small intermediate cycles as an interruption to a larger cycle, in effect, the crack tip remembers the state of the larger cycle. This has been shown to be an effective technique in predicting fatigue growth rates for long cracks, but has not been extensively investigated for use in predicting the growth of small cracks. An investigation was made into the applicability of rainflow cycle counting for predicting the crack growth of small and long cracks created with variable amplitude fatigue loading in AA7050-T7451 plate, a common modern aircraft material. A series of coupons were tested with a number of different variable amplitude loading sequences which had distinct marker bands inserted to separate the individual segments of loading and enable them to be identified fractographically. For the sequences examined, which covered varying numbers of interrupted cycles and a staircase of three steps, the baseline and the rainflow loading segments within each sequence showed effectively the same rate of growth for the same stress intensity range in both the small and long crack coupons, demonstrating that rainflow cycle counting was a suitable cycle counting technique for both small and long cracks.

• Periodical: Advanced Materials Research (Volumes 891-892)
• Pages: 687-692
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.891-892.687
• Online since: March 2014
• Authors: Paul White*, David S. Mongru
• Keywords: Fatigue Crack Growth (FCG), Fractography, Rainflow Cycle Counting, Variable Amplitude

References

[1] M. Matsuishi, T. Endo, Fatigue of metals subjected to varying stress-fatigue lives under random loading, Preliminary Proceedings of the Chugoku-Shikoku District Meeting, The Japan Society of Mechanical Engineers (1968) 3740.

[2] T. Endo, K. Mitsunaga, K. Takahasi, K. Kobayashi, M. Matsuishi, Damage evaluation of metals for random or varying loading, Proceedings of the 1974 Symposium on Mechanical Behaviour of Materials (1974) 371–380.

[3] N. Dowling, Fatigue failure predictions for complicated stress-strain histories, J. of Mat. (1972) 71–87.

[4] S. Downing, D. Socie, Simple rainflow counting algorithms, Int J of Fatigue (1982) 31–40.

DOI: 10.1016/0142-1123(82)90018-4

[5] ASTM, Standard Practices for Cycle Counting in Fatigue Analysis, E1049 – 85, (2005).

[6] Y. -L. Lee, T. Tjhung, Rainflow cycle counting techniques, in: Metal Fatigue Analysis Handbook, Elsevier Inc., (2012).

DOI: 10.1016/b978-0-12-385204-5.00003-3

[7] G. Glinka, J. Kam, Rainflow counting algorithm for very long stress histories, Int. J Fat. (1987) 223–8.

DOI: 10.1016/0142-1123(87)90025-9

[8] J.B. de Jonge, The monitoring of fatigue loads, Proceed. of the ICAS Congress in Rome (1970).

[9] C. Amzallag, J. Grey, J. R.J. Bahaud, Standardization of the rainflow counting method for fatigue analysis, International Journal of Fatigue (1994) 287–293.

DOI: 10.1016/0142-1123(94)90343-3

[10] R. Sunder, Engineering analysis of notch root fatigue crack growth under spectrum loading, Internatioanl Journal of Fatigue (1991) 249–262.

DOI: 10.1016/0142-1123(91)90249-x

[11] A.K. Khosrovaneh, N.E. Dowling, Fatigue loading history reconstruction based on the rainflow technique, Internatioanl Journal of Fatigue (1990) 99–106.

DOI: 10.1016/0142-1123(90)90679-9

[12] R. Sunder, S.A. Seetharam, T.A. Bhaskaran, Cycle counting for fatigue crack growth analysis, International Journal of Fatigue (1984) 147–156.

DOI: 10.1016/0142-1123(84)90032-x

[13] M. Krkoska, P. White, S. Barter, R. Alderliesten, R. Benedictus, Fatigue crack paths in AA2024-T3 alloy when loaded with constant amplitude and simple underloads spectra, Eng Fract Mech (2010) 1857–65.

DOI: 10.1016/j.engfracmech.2010.03.030

[14] P. White, S. Barter, C. Wright, Small crack growth rates from simple sequences containing underloads in AA7050-T7451, International Journal of Fatigue (2009) 1865–1874.

DOI: 10.1016/j.ijfatigue.2009.01.014

[15] S. Lynch, Progression markings, striations, and crack-arrest markings on fracture surfaces, Materials Science and Engineering A 74-80 (2007) 468–470.

DOI: 10.1016/j.msea.2006.09.083

[16] J.A. Harter, AFGROW Users Guide and Technical Manual, Wright-Patterson AFB, AFRL, (2006).

[17] M. Burchill, S. Barter, E. Amsterdam, Improved fatigue life predictions for combat aircraft fatigue life from a novel testing program, 15th Australian International Aerospace Congress, (2012).

[18] J. Schubbe, Fatigue crack propagation in 7050-T7451 plate alloy, Engineering Fracture Mechanics (2009) 1037–1048.

DOI: 10.1016/j.engfracmech.2009.01.006

[19] K. Walker, The effect of stress ratio during crack propagation and fatigue for 2024-T3 and 7075-T6 aluminum, ASTM Special Technical Publication 462, ASTM, (1970).

DOI: 10.1520/stp32032s
