Topology Optimization for Constrained Layer Damping Plates Using Evolutionary Structural Optimization Method

Abstract:

The evolutionary structural optimization (ESO) is used to optimize constrained damping layer structure. Considering the vibration and energy dissipation mode of the plate with constrained layer damping treatment, the elements of constrained damping layers and modal loss factor are considered as design variable and objective function, while damping material consumption is considered as a constraint. The sensitivity of modal loss factor to design variable is further derived using modal strain energy analysis method. Numerical example is used to demonstrate the effectiveness of the proposed topology optimization approach. The results show that vibration energy dissipation of the plates can be enhanced by the optimal constrained layer damping layout.

You might also be interested in these eBooks

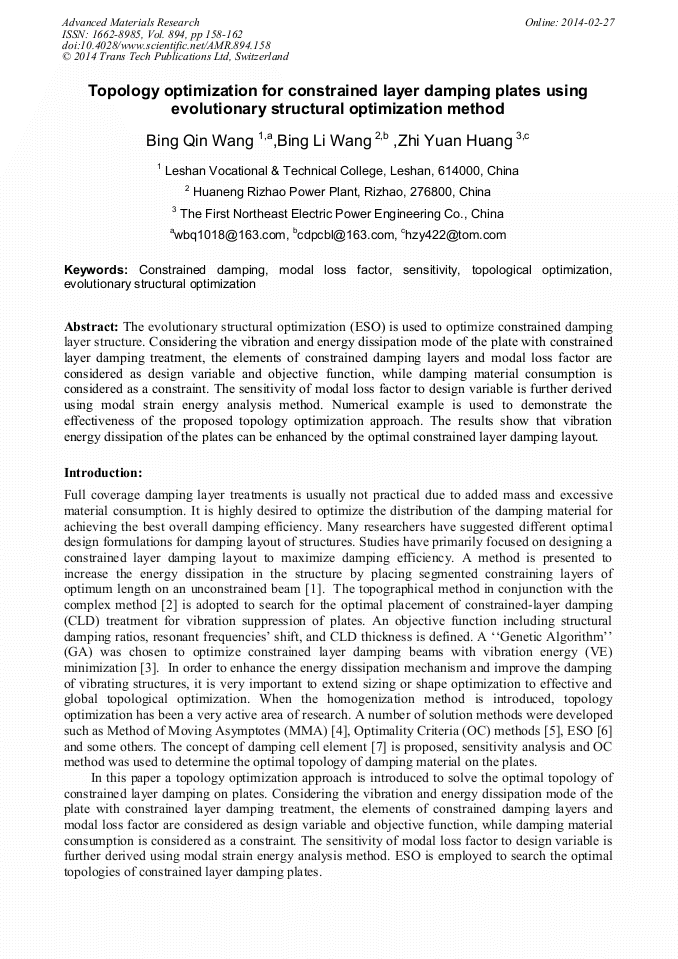

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 894)

Pages:

158-162

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.894.158

Citation:

Cite this paper

Online since:

February 2014

Authors:

Bing Qin Wang, Bing Li Wang, Zhi Yuan Huang

Keywords:

Constrained Damping, Evolutionary Structural Optimization, Modal Loss Factor, Sensitivity, Topological Optimization

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Plunkett, R, and Lee, C. T. Length Optimization of Constrained Viscoelastic Layer Damping [J]. Journal of the Acoustical Society of America, 1970, 48(1), Part 2: 150-161.

DOI: 10.1121/1.1912112

Google Scholar

[2] Chen Y.C. and Huang S.C. An optimal placement of CLD treatment for vibration suppression of plates, International Journal of Mechanical Sciences, 2002, 44: 1801-1821.

DOI: 10.1016/s0020-7403(02)00042-5

Google Scholar

[3] Zheng H, Cai C, and Tan X.M. Optimization of partial constrained layer damping treatment for vibration energy minimization of vibrating beams [J]. Computers and Structures, 2004, 82: 2493-2507.

DOI: 10.1016/j.compstruc.2004.07.002

Google Scholar

[4] SVANBERG K. The method of moving asymptotes-a new method for structural optimization [J]. International Journal for Numerical Method in Engineering, 1987, 24: 359-373.

DOI: 10.1002/nme.1620240207

Google Scholar

[5] Bendsøe M P. Optimization of structural topology, shape and material [M]. Berlin, Springer-Verlag Telos, (1995).

Google Scholar

[6] Xie, Y.M. and Steven G.P. Evolutionary structural optimization [M]. New York, Springer-Verlag Berlin and Heidelberg GmbH & Co. K, (1997).

Google Scholar

[7] Yang De qing. Topological Sensitivity Method for the Optimal Placement of Unconstrained Damping Materials under Dynamic Response Constraints[J]. Journal of Shanghai Jiaotong University, 2003, 37(8): 1109-1212.

Google Scholar

[8] Johnson CD. and KienholzDA. Finite Element Predietion of Damping in Structure with Constrained Viscoelastic Layers [J] . AIAA Journal, 1982, 20(9): 1284-1290.

DOI: 10.2514/3.51190

Google Scholar
