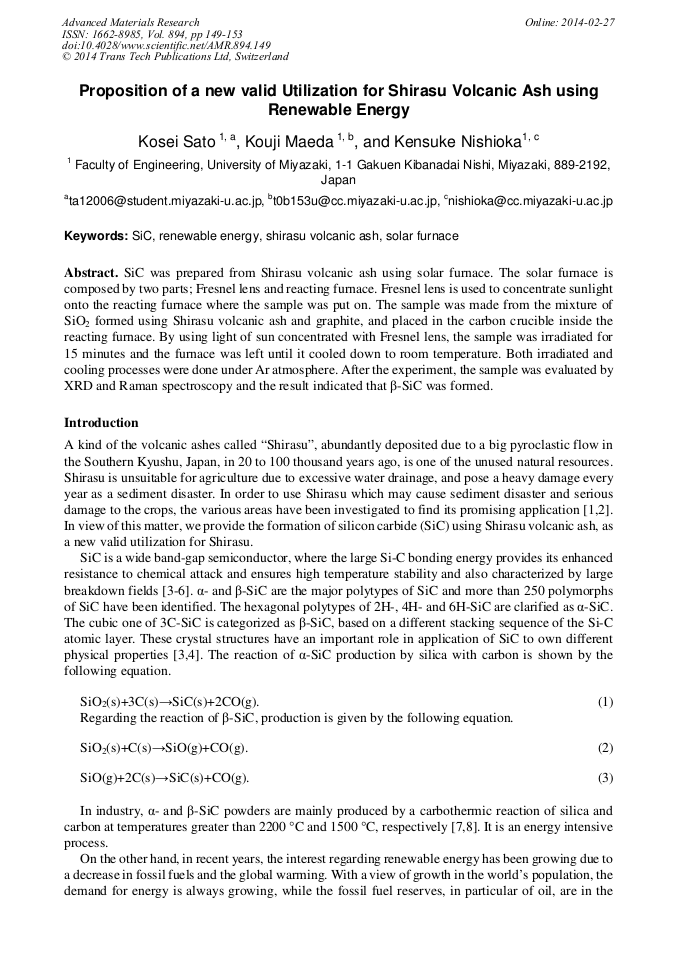

Proposition of a New Valid Utilization for Shirasu Volcanic Ash Using Renewable Energy

Abstract:

SiC was prepared from Shirasu volcanic ash using solar furnace. The solar furnace is composed by two parts; Fresnel lens and reacting furnace. Fresnel lens is used to concentrate sunlight onto the reacting furnace where the sample was put on. The sample was made from the mixture of SiO₂ formed using Shirasu volcanic ash and graphite, and placed in the carbon crucible inside the reacting furnace. By using light of sun concentrated with Fresnel lens, the sample was irradiated for 15 minutes and the furnace was left until it cooled down to room temperature. Both irradiated and cooling processes were done under Ar atmosphere. After the experiment, the sample was evaluated by XRD and Raman spectroscopy and the result indicated that β-SiC was formed.

• Periodical: Advanced Materials Research (Volume 894)
• Pages: 149-153
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.894.149
• Online since: February 2014
• Authors: Kosei Sato*, Kouji Maeda, Kensuke Nishioka
• Keywords: Renewable Energy, Shirasu Volcanic Ash, Silicon Carbide (SiC), Solar Furnace

References

[1] T. Yamaguchi, K. Takewaka and S. Mori, Durability monitoring on RC structures using shirasu concrete, in marine environment, Proceedings of the 6th International Conference on Concrete under Severe Conditions 1 (2010) 209-216.

DOI: 10.1201/b10552-24

[2] M. Kukizaki, Relation between salt rejection and electrokinetic properties on Shirasu porous glass (SPG) membranes with nano-order uniform pores, Separation and Purification Technology 69 (2009) 87-96.

DOI: 10.1016/j.seppur.2009.07.006

[3] H. Morkoc, S. Strite, G.B. Gao, M.E. Lin, B. Sverdlov, M. Burns, Large-band-gap SiC, III-V nitride, and II-VI ZnSe-based semiconductor device technologies, J. Appl. Phys. 76 (1994) 1363 -1398.

DOI: 10.1063/1.358463

[4] R.J. Iwanowski, K. Fronc, W. Paszkowicz, M. Heinonen, XPS and XRD study of crystalline 3C-SiC grown by sublimation method, J Alloys Compd. 286 (1999) 143-147.

DOI: 10.1016/s0925-8388(98)00994-3

[5] G.A. Slack, S.F. Bartram, Thermal expansion of some diamond like crystals, J. Appl. Phys. 46 (1975) 89-98.

[6] R.I. Scace, G.A. Slack, Nitrogen incorporation in SiC, Journal of Chemical Physics 42 (1965) 805-806.

DOI: 10.1063/1.1696022

[7] B. Zhao, et al., Nanocarbon-dependent synthesis of one-dimensional bead-chain-like β-SiC, Powder Technology 246 (2013) 487-491.

DOI: 10.1016/j.powtec.2013.06.003

[8] S. Sugiyama, M. Togaya, Phase Relationship between 3C- and 6H- Silicon Carbide at High Pressure and High Temperature, J. Am. Ceram. Soc. 84 (2001) 3013-3016.

DOI: 10.1111/j.1151-2916.2001.tb01129.x

[9] A.A. Abdurakhmanov, Kh.K. Zainutdinova, M.A. Mamatkosimov, M.S. Paizullakhanov, G. Saragoza, Solar Technologies in Uzbekistan: State, Priorities, and Perspectives of Development, Applied Solar Energy 48 (2012) 84-91.

DOI: 10.3103/s0003701x1202003x

[10] A.A. Abdurakhmanov, U.F. Turaeva, Sh. I, Klychev, Methodology of determining integral radiant emittance of solar radiation receivers, Applied Solar Energy 45 (2009) 114-115.

DOI: 10.3103/s0003701x0902011x

[11] T.P. Salikhov, V.V. Kan, E.M. Urazaeva, T.V. Savatyugina, G.M. Arushanov, Prospects for application of superdispersed powders obtained in small solar furnaces to form ceramic membranes, Applied Solar Energy 47 (2011) 146-148.

DOI: 10.3103/s0003701x11020186

[12] R. Kh. Rakhimov, R. A. Muminov, T. T. Riskiev, Application of Functional Ceramics Synthesized in a Large Solar Furnace for the Synthesis of Complex Compounds, Applied Solar Energy 48 (2012) 47-50.

DOI: 10.3103/s0003701x12010124

[13] Sh.A. Faiziev, M.S. Paizullakhanov, E.Z. Nodirmatov, R. Yu. Akbarov, M.A. Zufarov, Synthesis of pyroxene pyroceramics in large solar furnace with ZrO 2 crystallization nucleator, Applied Solar Energy 44 (2008) 139-141.

DOI: 10.3103/s0003701x08020175

[14] K. Sato, T. Kokubu, K. Nishioka, Effect of Heat Treatment on High Purity Nanoporous Silica Formed from Volcanic Ash Deposit Shirasu, Advanced Materials Research 747 (2013) 547-550.

DOI: 10.4028/www.scientific.net/amr.747.547

[15] K. Sato, T. Kokubu, K. Nishioka, Control of Pore Size of High Purity Nanoporous Silica Formed from Volcanic Ash Deposit Shirasu, Advanced Materials Research 622-623 (2013) 970-974.

DOI: 10.4028/www.scientific.net/amr.622-623.970

[16] T. Takeshita, Y. Kurata, S. Hasegawa, Bonding properties of glow-discharge polycrystalline and amorphous Si-C films studied by x-ray diffraction and x-ray photoelectron spectroscopy, J. Appl. Phys. 71 (1992) 5395-5400.

DOI: 10.1063/1.350561

[17] C.J. Lee, G. Pezzotti, Y. Okui, S. Nishino, Raman microprobe mapping of residual microstresses in 3C-SiC film epitaxial lateral grown on patterned Si (1 1 1), Appl. Surf. Sci. 228 (2004) 10-16.

DOI: 10.1016/j.apsusc.2004.01.052
