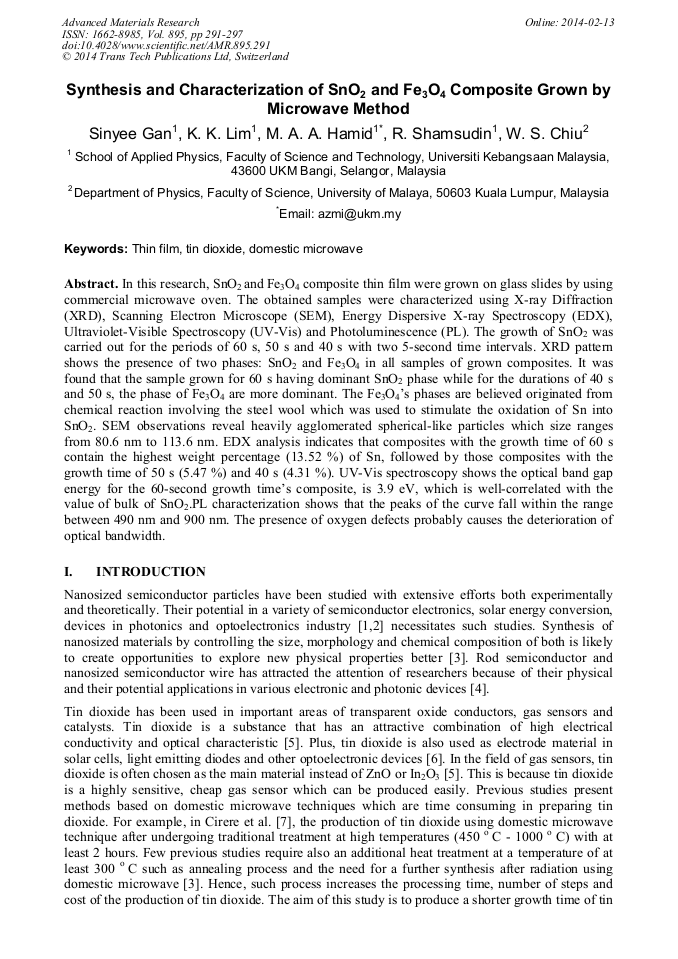

Synthesis and Characterization of SnO₂ and Fe₃O₄ Composite Grown by Microwave Method

Abstract:

In this research, SnO₂ and Fe₃O₄ composite thin film were grown on glass slides by using commercial microwave oven. The obtained samples were characterized using X-ray Diffraction (XRD), Scanning Electron Microscope (SEM), Energy Dispersive X-ray Spectroscopy (EDX), Ultraviolet-Visible Spectroscopy (UV-Vis) and Photoluminescence (PL). The growth of SnO₂ was carried out for the periods of 60 s, 50 s and 40 s with two 5-second time intervals. XRD pattern shows the presence of two phases: SnO₂ and Fe₃O₄ in all samples of grown composites. It was found that the sample grown for 60 s having dominant SnO₂ phase while for the durations of 40 s and 50 s, the phase of Fe₃O₄ are more dominant. The Fe₃O₄s phases are believed originated from chemical reaction involving the steel wool which was used to stimulate the oxidation of Sn into SnO₂. SEM observations reveal heavily agglomerated spherical-like particles which size ranges from 80.6 nm to 113.6 nm. EDX analysis indicates that composites with the growth time of 60 s contain the highest weight percentage (13.52 %) of Sn, followed by those composites with the growth time of 50 s (5.47 %) and 40 s (4.31 %). UV-Vis spectroscopy shows the optical band gap energy for the 60-second growth times composite, is 3.9 eV, which is well-correlated with the value of bulk of SnO₂.PL characterization shows that the peaks of the curve fall within the range between 490 nm and 900 nm. The presence of oxygen defects probably causes the deterioration of optical bandwidth. Keywords: Thin film, tin dioxide, domestic microwave

• Periodical: Advanced Materials Research (Volume 895)
• Pages: 291-297
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.895.291
• Online since: February 2014
• Authors: Sin Yee Gan, K.K. Lim, M.A.A. Hamid*, R. Shamsudin, W.S. Chiu
• Keywords: Domestic Microwave, Thin Film, TiN Dioxide

References

[1] J.J. Zhu, M.Z. Zhu, X.H. Liao, J.L. Fang, M.G. Zhou & H.Y. Chen, Rapid synthesis of nanocrystalline SnO2 powders by microwave heating method. Materials Letters 53(1-2) (2002)12-19.

DOI: 10.1016/s0167-577x(01)00445-1

[2] M. Krishna & S. Komameni, Conventional-vs microwave-hydrothermal synthesis of tin oxide, SnO2 nanoparticles. Ceramic International 35(8) (2009) 3375-3379.

DOI: 10.1016/j.ceramint.2009.06.010

[3] T. Krishnakumar, N. Pinna, K.P. Kumari, K. Perumal & R. Jayaprakash, Microwave-assisted synthesis and characterization of tin oxide nanoparticles. Materials Letters62(19) (2008) 3437-3440.

DOI: 10.1016/j.matlet.2008.02.062

[4] N. Takahashi, Simple and rapid synthesis of MgO with nano-cube shape by means of adomestic microwave oven. Solid State Sciences9(8) (2007) 722-724.

DOI: 10.1016/j.solidstatesciences.2007.05.007

[5] M. Batzill & U. Diebold. The surface and materials science of tin oxide. Progress in Surface Science 79(2-4) (2005) 47-154.

DOI: 10.1016/j.progsurf.2005.09.002

[6] N.A. Razana, 2007. Penyediaandanpencirianzarahnano SnO2dannikeltersokong SnO2sertakajianaktivitipemangkinnyaterhadappenghidrogenanstirena. TesisSarjana: Universiti Sains Malaysia.

[7] A. Cirere, A. Vila, A. Cornet & J.R. Morante, Properties of nanocrystalline SnO2 obtained by means of a microwave process. Materials Letters and Engineering C 15(1-2) (2001) 203-305.

DOI: 10.1016/s0928-4931(01)00243-0

[8] G. Dai, X. Jiang & Y. Zhang, Excimer laser deposition and characteristics of tin oxide thin films. Thin Solid Films 320(2) (1998) 216-219.

DOI: 10.1016/s0040-6090(97)01006-7

[9] Jagriti & Chuhan. Investigation of structural and optical properties of tin oxide. Applied Science Innovations Private Limited, India (2009) 160-168.

[10] X.J. Wang, B. Dong, & Z. Zhou, Preparation and photoluminescence of high density SiOx nanowires with Fe3O4 nanoparticles catalyst. Materials Letters 63(13-14) (2009) 1149-1152.

DOI: 10.1016/j.matlet.2009.01.084

[11] H. Yuan & J. Xu, Preparation, characterization and photocatalytic activity of nanometer SnO2. International Journal of Chemical Engineering and Applications 1(3) (2010) 241-246.

DOI: 10.7763/ijcea.2010.v1.41

[12] K. Murakami, K. Nakajima & S. Kaneko, Initial growth of SnO2 thin film on glass substrate deposited by the spray pyrolysis technique. Thin Solid Films 515(24) (2007) 8632-8636.

DOI: 10.1016/j.tsf.2007.03.128

[13] Q. Yan, S. Tao & H. Toghiani, Optical fiber evanescent wave absorption spectrometry of nanocrystalline tin oxide thin films for selective hydrogen sensing in high temperatures gas samples. Talanta77(3) (2009) 953-961.

DOI: 10.1016/j.talanta.2008.07.066

[14] Z. Othaman, K.B. Lim, S. Sakrani, & S. Muhammad, The stranski-krastanov three dimensional island growth prediction on finite size model. Jurnal Fizik UTM 3 (2008) 1-5.

[15] P.S. Raghupathi, J. George, & C.S. Menon, Effect of substrate temperature on the electrical and optical properties of respectively evaporated tin oxide thin films. Indian Journal of Pure & Applied Physics43 (2005) 620-623.

[16] S.S. Pan, C. Ye, X.M. Teng, L. Li, & G.H. Li, 2006. Localized exciton luminescence in nitrogen-incorporated SnO2 thin films. Applied Physics Letters 89 (2006) 291511(1)-291511(3).

DOI: 10.1063/1.2416070

[17] M.R. Hall, & P.H. Ribbe, An electron microprobe study of luminescence centers in cassiterite. The American Mineralogist 56 (1971) 31-45.
