HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 895Effect of Pressing Force on the Physical...

Effect of Pressing Force on the Physical Properties of CaMgTiO₃ Ceramic Prepared by HEBM

Abstract:

CaMgTiO₃ ceramics were synthesized by using the high energy ball-milling method (HEBM) at different pressing forces. The raw materials were ball milled for 20 hours and sintered at 1000°C. Ceramics surfaces morphologies and particle sizes were measured using SEM analysis. Archimedes’ method was adapted to obtain their densities and porosities. It was found that pressing forces influenced both morphologies and particle sizes. As pressing forces increased, the particle sizes decreased as shown in SEM observation. However, the particle sizes increased at 200 kN due to agglomerated grain growth. The densities were almost constant with increasing of pressing forces while porosities were reduced.

You might also be interested in these eBooks

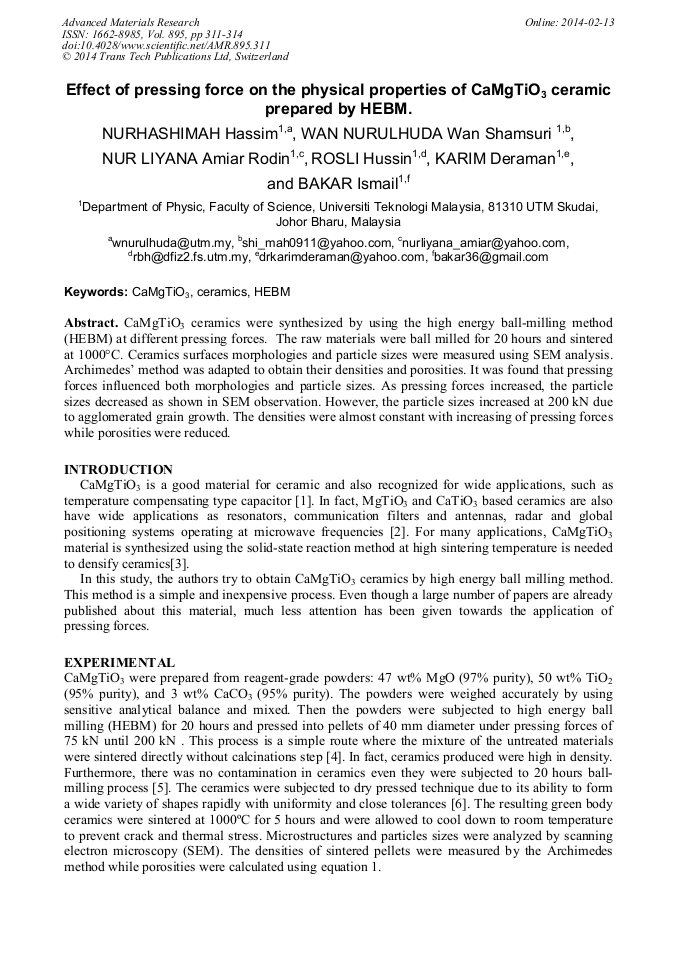

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 895)

Pages:

311-314

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.895.311

Citation:

Cite this paper

Online since:

February 2014

Authors:

Nurhashimah Hassim, Wan Nurulhuda Wan Shamsuri, Nur Liyana Amiar Rodin, Rosli Hussin, Karim Deraman, Bakar Ismail

Keywords:

CaMgTiO₃, Ceramic, High Energy Ball-Milling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Huang, C. L., & Weng, M. H. (2001). Improved high Q value of MgTiO3–CaTiO3 microwave dielectric ceramics at low sintering temperature. National Cheng Kung University, Department of Electrical Engineering. Tainan: Materials Research Bulletin.

DOI: 10.1016/s0025-5408(01)00752-8

Google Scholar

[2] Lee, B. D., Lee, H. R., Yoon, K. H., & Cho, Y. S. (2005). Microwave dielectric properties of magnesium calcium titanate thin ﬁlms. Ceramics International , 143–146.

DOI: 10.1016/j.ceramint.2004.04.001

Google Scholar

[3] Suresh, M. K., Thomas, J. K., John, A., Solomon, S., Koshy, J., Sreemoolanadhan, H., et al. (2011).

Google Scholar

[4] Smith, W. F., & Hashemi, J. (2006). Foundations of Materials Science and Engineering (4th Edition ed. ). New York, United States of America: McGraw-Hill.

Google Scholar

[5] Liou, Y. C., and Yang, S. L (2007). Calcium-doped MgTiO3-MgTi2O5 ceramics prepared. Materials Science and Engineering B, 116-120.

DOI: 10.1016/j.mseb.2007.06.027

Google Scholar

[6] Sanoj, M. A., Reshmi, C. P., Sreena, K. P., & Varma, M. R. (2011).

Google Scholar

[7] Wong, B., & Pask, J. A. (1979). J. Am. Ceram. Soc. (62), 141.

Google Scholar

[8] German, R. M. (1996). Sintering Theory and Practice. John Wiley & Sons Inc.

Google Scholar
