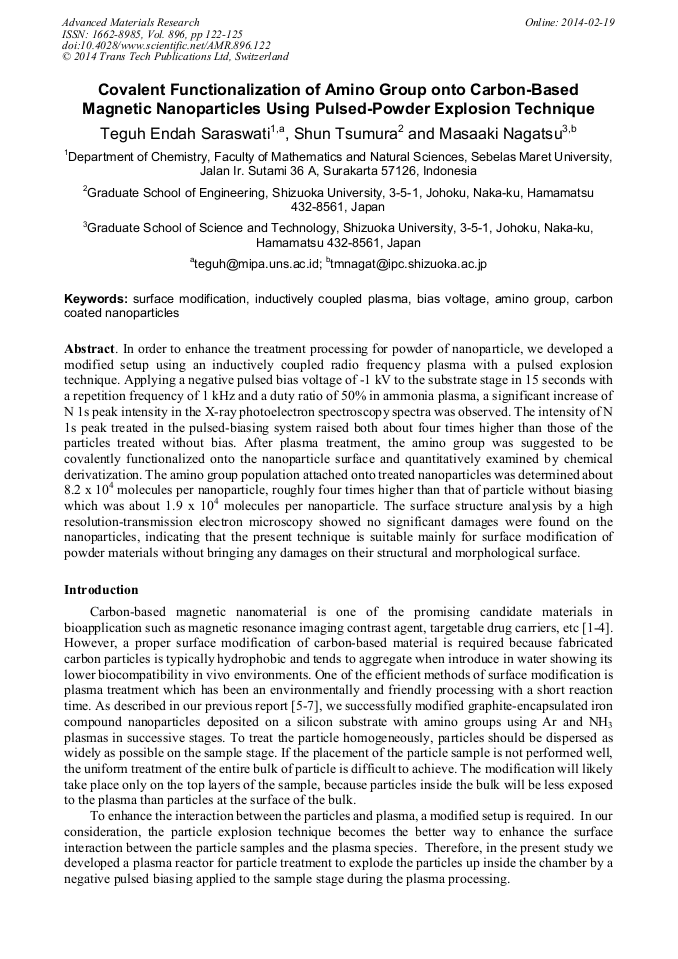

Covalent Functionalization of Amino Group onto Carbon-Based Magnetic Nanoparticles Using Pulsed-Powder Explosion Technique

Abstract:

In order to enhance the treatment processing for powder of nanoparticle, we developed a modified setup using an inductively coupled radio frequency plasma with a pulsed explosion technique. Applying a negative pulsed bias voltage of -1 kV to the substrate stage in 15 seconds with a repetition frequency of 1 kHz and a duty ratio of 50 % in ammonia plasma, a significant increase of N 1s peak intensity in the X-ray photoelectron spectroscopy spectra was observed. The intensity of N 1s peak treated in the pulsed-biasing system raised both about four times higher than those of the particles treated without bias. After plasma treatment, the amino group was suggested to be covalently functionalized onto the nanoparticle surface and quantitatively examined by chemical derivatization. The amino group population attached onto treated nanoparticles was determined about 8.2 x 10⁴ molecules per nanoparticle, roughly four times higher than that of particle without biasing which was about 1.9 x 10⁴ molecules per nanoparticle. The surface structure analysis by a high resolution-transmission electron microscopy showed no significant damages were found on the nanoparticles, indicating that the present technique is suitable mainly for surface modification of powder materials without bringing any damages on their structural and morphological surface.

• Periodical: Advanced Materials Research (Volume 896)
• Pages: 122-125
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.896.122
• Online since: February 2014
• Authors: Teguh Endah Saraswati*, Shun Tsumura, Masaaki Nagatsu
• Keywords: Amino Group, Bias Voltage, Carbon Coated Nanoparticles, Inductively Coupled Plasma, Surface Modification

References

[1] C.C. Berry, Progress in functionalization of magnetic nanoparticles for applications in biomedicine, J. Phys. D: Appl. Phys. 42 (2009) 224003-224011.

DOI: 10.1088/0022-3727/42/22/224003

[2] S. Kim, E. Shibata, R. Sergiienko, T. Nakamura, Purification and separation of carbon nanocapsules as a magnetic carrier for drug delivery systems, Carbon 46 (2008) 1523-1529.

DOI: 10.1016/j.carbon.2008.05.027

[3] A. Ito, M. Shinkai, H. Honda, T. Kobayashi, Medical application of functionalized magnetic nanoparticles, J. Biosci. Bioeng. 100 (2005) 1-11.

[4] A. -H. Lu, E.L. Salabas, F. Schuth, Magnetic Nanoparticles: Synthesis, Protection, Functionalization, and Application, Angew. Chem., Int. Ed. 46 (2007) 1222-1244.

DOI: 10.1002/anie.200602866

[5] T.E. Saraswati, A. Ogino, M. Nagatsu, Plasma-activated immobilization of biomolecules onto graphite-encapsulated magnetic nanoparticles, Carbon 50 (2012) 1253-1261.

DOI: 10.1016/j.carbon.2011.10.044

[6] T.E. Saraswati, T. Matsuda, A. Ogino, M. Nagatsu, Surface modification of graphite encapsulated iron nanoparticles by plasma processing, Diam. Relat. Mater. 20 (2011) 359-363.

DOI: 10.1016/j.diamond.2011.01.027

[7] M. Nagatsu, Teguh E. Saraswati, A. Ogino, Surface Functionalization of Graphene Layer-Encapsulated Magnetic Nanoparticles by Inductively Coupled Plasma, Adv. Mat. Res. 222 (2011) 134-137.

DOI: 10.4028/www.scientific.net/amr.222.134

[8] M. Nagatsu, T. Yoshida, M. Mesko, A. Ogino, T. Matsuda, T. Tanaka, H. Tatsuoka, K. Murakami, Narrow multi-walled carbon nanotubes produced by chemical vapor deposition using graphene layer encapsulated catalytic metal particles, Carbon 44 (2006).

DOI: 10.1016/j.carbon.2006.06.005

[9] Y. Saito, T. Yoshikawa, M. Okuda, N. Fujimoto, S. Yamamuro, K. Wakoh, K. Sumiyama, K. Suzuki, A. Kasuya, Y. Nishina, Iron particles nesting in carbon cages grown by arc discharge, Chem. Phys. Lett. 212 (1993) 379-383.

DOI: 10.1016/0009-2614(93)89341-e

[10] J. Carlsson, H. Drevin, R. Axén, Protein thiolation and reversible protein-protein conjugation. N-Succinimidyl 3-(2-pyridyldithio)propionate, a new heterobifunctional reagent, Biochem. J. 173 (1978) 723-737.

DOI: 10.1042/bj1730723

[11] G. Hermanson, Bioconjugate Techniques, Academic Press Elsevier Inc., New York, (2008).

[12] X. -Y. Gong, X.R. Duan, H. Lange, A.A. Meyer-Path, Detection of NH2 Radical in Ammonia Radio-Frequency Plasmas by Laser-Induced Resonance Fluorescence, Chin. Phys. Lett. 18 (2001) 939-941.
