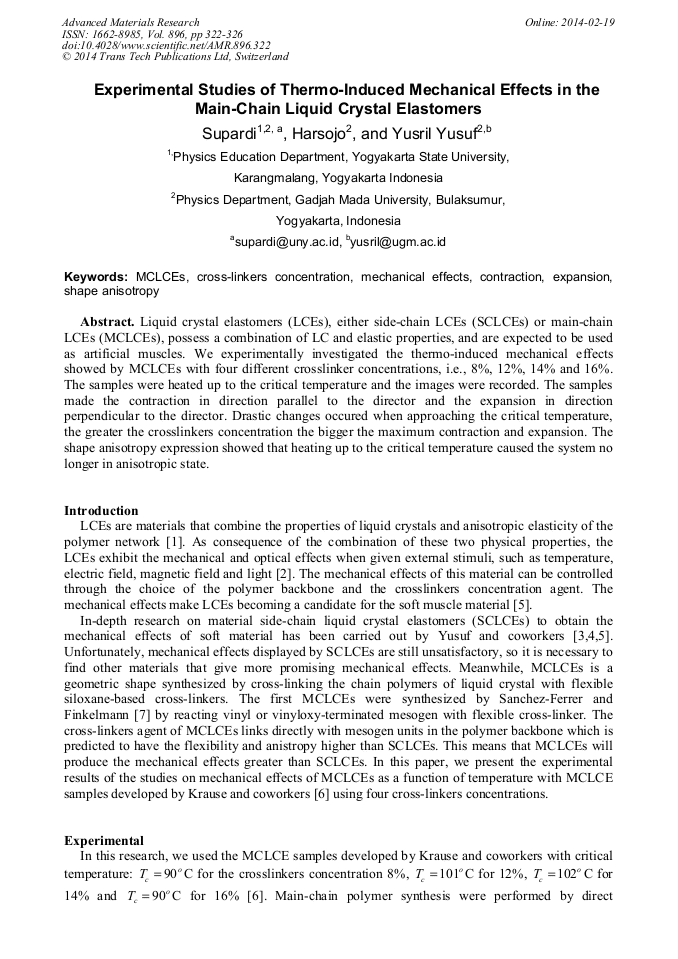

Experimental Studies of Thermo-Induced Mechanical Effects in the Main-Chain Liquid Crystal Elastomers

Abstract:

Liquid crystal elastomers (LCEs), either side-chain LCEs (SCLCEs) or main-chain LCEs (MCLCEs), possess a combination of LC and elastic properties, and are expected to be used as artificial muscles. We experimentally investigated the thermo-induced mechanical effects showed by MCLCEs with four different crosslinker concentrations, i.e., 8%, 12%, 14% and 16%. The samples were heated up to the critical temperature and the images were recorded. The samples made the contraction in direction parallel to the director and the expansion in direction perpendicular to the director. Drastic changes occured when approaching the critical temperature, the greater the crosslinkers concentration the bigger the maximum contraction and expansion. The shape anisotropy expression showed that heating up to the critical temperature caused the system no longer in anisotropic state.

You might also be interested in these eBooks

Advanced Materials Science and Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 896)

Pages:

322-326

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.896.322

Citation:

Cite this paper

Online since:

February 2014

Authors:

Supardi Supardi*, Harsojo Harsojo, Yusril Yusuf

Keywords:

Contraction, Cross-Linkers Concentration, Expansion, MCLCEs, Mechanical Effects, Shape Anisotropy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] C. Ohm, M. Brehmer, and R. Zentel, Applications of Liquid Crystalline Elastomers, Adv. Polym. Sci. 250 (2012) 49–94.

Google Scholar

[2] Hongrui Jiang, Chensha Li and Xuezhen Huang, Actuators based on liquid crystalline elastomer materials, Nanoscale 5 (2013) 5225-5240.

DOI: 10.1039/c3nr00037k

Google Scholar

[3] J. H. Huh, J. Xin, Y. Yusuf, and S. Kai, J. Phys. Soc. Jpn. 74 (2005) 242-245.

Google Scholar

[4] Y. Yusuf, J. H. Huh, P. E. Cladis, H. R. Brand, H. Finkelmann, and S. Kai, Phys. Rev. E 71 (2005) 1-9.

Google Scholar

[5] D. U. Cho, Y. Yusuf, S. Hashimoto, P. E. Cladis, H. R. Brand, H. Finkelmann, and S. Kai, J. Phys. Soc. Jpn. 75 (2006) 217-222.

Google Scholar

[6] Krause S., Zander F., Bergmann G., Brandt H., Wertmer H., and Finkelmann H., Nematic Main Chain Elastomers: Coupling and Orientational Behavior, C.R. Chemie 12 (2008) 85-104.

DOI: 10.1016/j.crci.2008.08.003

Google Scholar

[7] S. Hashimoto, Y. Yusuf, S. Krause, H. Finkelmann, P. E Cladis, Helmut R. Brand, Shoichi Kai, Applied Physics Letter 92 (2008) 1-3.

Google Scholar

[8] Y. Yusuf, N. Minami, S. Yamaguchi, Dong-Uk Cho, P. E Cladis, H. R Brand, H. Finkelman, and S. Kai, J. Phys. Soc. Jpn. 76 (2007) 1-4.

Google Scholar
