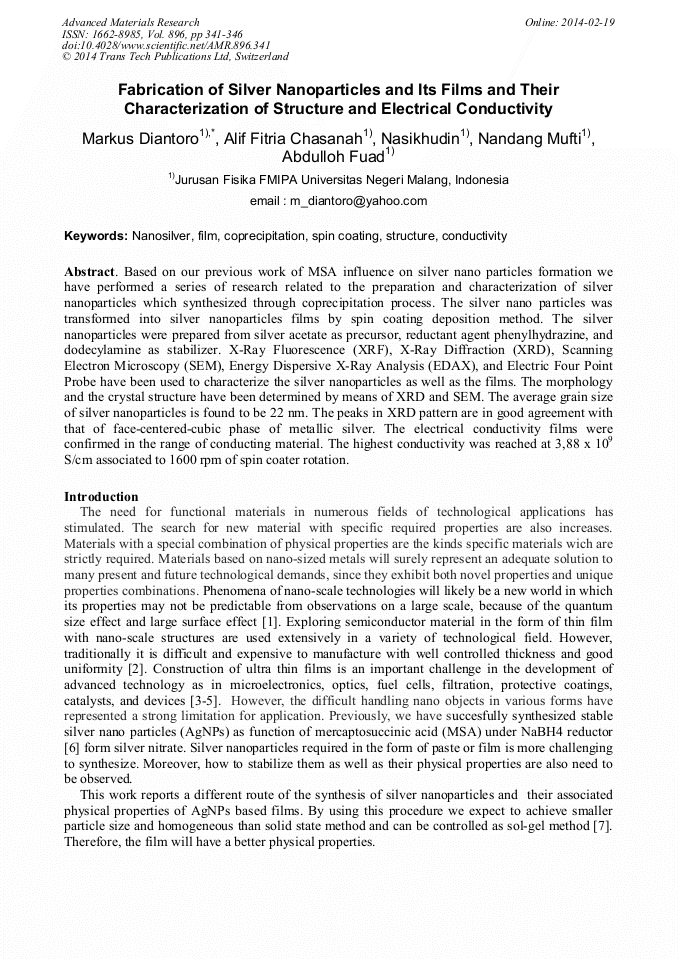

Fabrication of Silver Nanoparticles and its Films and their Characterization of Structure and Electrical Conductivity

Abstract:

Based on our previous work of MSA influence on silver nano particles formation we have performed a series of research related to the preparation and characterization of silver nanoparticles which synthesized through coprecipitation process. The silver nano particles was transformed into silver nanoparticles films by spin coating deposition method. The silver nanoparticles were prepared from silver acetate as precursor, reductant agent phenylhydrazine, and dodecylamine as stabilizer. X-Ray Fluorescence (XRF), X-Ray Diffraction (XRD), Scanning Electron Microscopy (SEM), Energy Dispersive X-Ray Analysis (EDAX), and Electric Four Point Probe have been used to characterize the silver nanoparticles as well as the films. The morphology and the crystal structure have been determined by means of XRD and SEM. The average grain size of silver nanoparticles is found to be 22 nm. The peaks in XRD pattern are in good agreement with that of face-centered-cubic phase of metallic silver. The electrical conductivity films were confirmed in the range of conducting material. The highest conductivity was reached at 3,88 x 10⁹ S/cm associated to 1600 rpm of spin coater rotation.

• Periodical: Advanced Materials Research (Volume 896)
• Pages: 341-346
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.896.341
• Online since: February 2014
• Authors: Markus Diantoro*, Alif Fitria Chasanah, Nasikhudin Nasikhudin, Nandang Mufti, Abdulloh Fuad
• Keywords: Conductivity, Coprecipitation, Film, Nanosilver, Spin Coating, Structure

References

[1] M. A. Khan, K. Majeed, S. Kumar, M. Ahamed, S. A. Alrokayan, and M. AlSalhi. Structural And Thermal Studies of Silver Nanoparticles And Electrical Transport Strudy Of Their Thin Films. Journal Nanoscale Research Letters, 6 (2011) 434.

DOI: 10.1186/1556-276x-6-434

[2] P. Singh, and R. B. Raja. Biological Synthesis and Characterization of Silver Nanoparticles Using the Fungus Trichoderma Harzianum. Asian J. Exp. Biol. Sci. Vol 2(4) 2011: 600-605.

[3] D. Basak, S. Karan, B. Mallik. Significant modifications in the electrical properties of poly(methyl methacrylate) thin films upon dispersion of silver nanoparticles. Solid State Communication, 141 (2007) 483.

DOI: 10.1016/j.ssc.2006.12.014

[4] T. M. Tolaymat, M. Amro A. G. El Badawy, G. S. Kirk, P. L. Todd, S. Makram. An evidence based environmental perspective of manufactured silver nanoparticle in syntheses and applications: A systematic review and critical appraisal of peer reviewed scientific papers. Journal of Science of the Total Environment 408 (2010).

DOI: 10.1016/j.scitotenv.2009.11.003

[5] S. Q. Zhu, T. Zhang, X. L. Guo, Q. L. Wang, X. Liu and X. Y. Zhang. Gold nanoparticle thin films fabricated by electrophoretic deposition method for highly sensitive SERS application. Nanoscale Research Letters 7 (2012) 613.

DOI: 10.1186/1556-276x-7-613

[6] M. Diantoro, R. Fitrianingsih, N. Mufti, A. Fuad. Synthesis of Silver Nanoparticles by Chemical Reduction at Various Fraction of MSA and Their Structure Characterization, American Institute of Physics Proceeding Series, (2012) in press.

DOI: 10.1063/1.4868795

[7] A. Chibac, V. Melinte, T. Buruiana, L. Balan, E. Buruiana. One-spot synthesis of photocrosslinked sol-gel hybrid composites containing silver nanoparticles in urethane-acrylic matrices, Chemical Engineering Journal, 200-202 (2012) 577-588.

DOI: 10.1016/j.cej.2012.06.110

[8] Y. Li. 2009. Stabilized silver nanoparticle compositions. United States Patent No. 7, 737, 497 2B.

[9] L. Vegard, ICSD for WWW on http: /icsd. iqfr. csic. es/icsd/index. php.

[10] H. Y. Koo, J. H. Yi, J. H. Kim, Y. N. Ko, D. S. Jung, Y. C. Kang, J. H. Lee, Conductive silver films formed from nano-sized silver powders prepared by flame spray pyrolysis, Materials Chemistry and Physics, 124 (2010) 959-963.

DOI: 10.1016/j.matchemphys.2010.07.072
