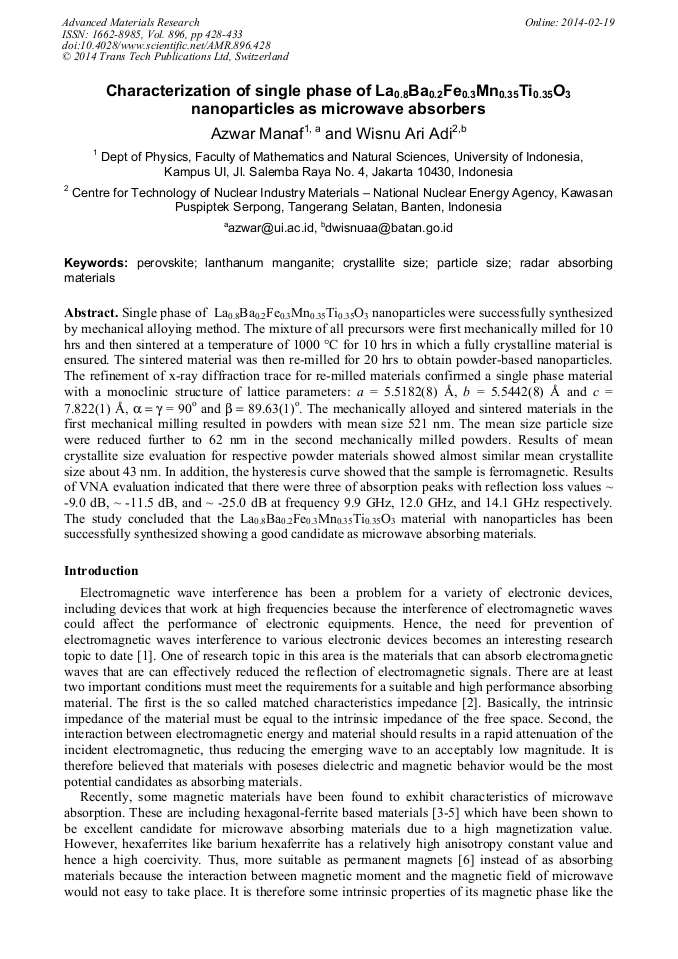

Characterization of Single Phase of La_0.8Ba_0.2Fe_0.3Mn_0.35Ti_0.35O₃ Nanoparticles as Microwave Absorbers

Abstract:

1024x768 Single phase of La_0.8Ba_0.2Fe_0.3Mn_0.35Ti_0.35O₃ nanoparticles were successfully synthesized by mechanical alloying method. The mixture of all precursors were first mechanically milled for 10 hrs and then sintered at a temperature of 1000 °C for 10 hrs in which a fully crystalline material is ensured. The sintered material was then re-milled for 20 hrs to obtain powder-based nanoparticles. The refinement of x-ray diffraction trace for re-milled materials confirmed a single phase material with a monoclinic structure of lattice parameters: a = 5.5182(8) Å, b = 5.5442(8) Å and c = 7.822(1) Å, a = g = 90^o and b = 89.63(1)^o. The mechanically alloyed and sintered materials in the first mechanical milling resulted in powders with mean size 521 nm. The mean size particle size were reduced further to 62 nm in the second mechanically milled powders. Results of mean crystallite size evaluation for respective powder materials showed almost similar mean crystallite size about 43 nm. In addition, the hysteresis curve showed that the sample is ferromagnetic. Results of VNA evaluation indicated that there were three of absorption peaks with reflection loss values ~ -9.0 dB, ~ -11.5 dB, and ~ -25.0 dB at frequency 9.9 GHz, 12.0 GHz, and 14.1 GHz respectively. The study concluded that the La_0.8Ba_0.2Fe_0.3Mn_0.35Ti_0.35O₃ material with nanoparticles has been successfully synthesized showing a good candidate as microwave absorbing materials. Normal 0 false false false /* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-parent:""; mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin:0cm; mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-size:10.0pt; font-family:"Times New Roman"; mso-ansi-language:#0400; mso-fareast-language:#0400; mso-bidi-language:#0400;}

• Periodical: Advanced Materials Research (Volume 896)
• Pages: 428-433
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.896.428
• Online since: February 2014
• Authors: Azwar Manaf*, Ari Adi Wisnu
• Keywords: Lanthanum Manganite, Mirowave Absorber, Nanoparticle, Perovskite, Single Domain

References

[1] M. Matsumoto, Y. Miyata, A Gigahertz-range Electromagnetic Wave Absorber with Bandwidth Made of Hexagonal Ferrite, J. Appl. Phys. 79 8 (1996) 5486-5488.

DOI: 10.1063/1.362284

[2] Y. Nie, H.H. He, R.Z. Gong, X.C. Zhang, The electromagnetic characteristics and design of mechanically alloyed Fe–Co particles for electromagnetic-wave absorber, Journal of Magnetism and Magnetic Materials 310 (2007) 13–16.

DOI: 10.1016/j.jmmm.2006.07.021

[3] A. González-Angeles, A. Grusková, J. Lipka, J. Sláma and V. Jančárik. Magnetic and Structural Studies of Ba0. 5Sr0. 5(ZnTi)xFe12-2xO19 Prepared by Ball Milling, Jordan Journal of Phys. 1 1 (2008) 37-42.

[4] M.K. Tehrania, A. Ghasemi, M. Moradi, R.S. Alam, Wideband electromagnetic wave absorber using doped barium hexaferrite in Ku-band, Journal of Alloys and Compounds 509 (2011) 8398– 8400.

DOI: 10.1016/j.jallcom.2011.05.091

[5] M.H. Shams, S.M.A. Salehi, A. Ghasemi, Electromagnetic wave absorption characteristics of Mg–Ti substituted Ba-hexaferrite, Materials Letters 62 (2008) 1731–1733.

DOI: 10.1016/j.matlet.2007.09.073

[6] K.H. Muller, G. Krabbes, J. Fink, S. Gru, A. Kirchner, G. Fuchs, L. Schultz, Journal of Magnetism and Magnetic Materials (2001) 226-230, 1370-1376.

DOI: 10.1016/s0304-8853(00)00913-6

[7] Priyono and A. Manaf, Magnetic and Absorption Characteristics of Mn and Ti Subsituted Barium Hexaferrite For Microwave Absorber, Instrumenetation, Communications, Information Technology, and Biomedical Enggineering, ICICI-BME (2009).

DOI: 10.1109/icici-bme.2009.5417213

[8] K.S. Zhou, D. Jia, L.S. Yin, M.A. Shi-hong, S.H. Gao, Microwave absorbing properties of La0. 8 Ba0. 2Mn0. 3 nano-particles, Trans. Nonferrous Met. Soc. China 17 (2007) 947-950.

DOI: 10.1016/s1003-6326(07)60205-2

[9] Y.L. Cheng, J.M. Dai, D.J. Wu, Y.P. Sun, Electromagnetic and microwave absorption properties of carbonyl iron/La0. 6Sr0. 4MnO3 composites, Journal of Magnetism and Magnetic Materials 322 (2010) 97–101.

DOI: 10.1016/j.jmmm.2009.08.037

[10] K.S. Zhou, H. Xia, K.L. Huang, L.W. Deng, D. Wang, Y.P. Zhou, S.H. Gao, Physica B 404 (2009) 175–179.

[11] K.S. Zhou, D. Wang, K. Huang, L.S. Yin, Y.P. Zhou, S.H. Gao, Characteristics of permittivity and permeability spectra in range of 2-1 8 GHz microwave frequency for La1-xSrx Mn1-yByO3 (B=Fe, Co, Ni), Trans. Nonferrous Met. Soc. China 17(2007).

DOI: 10.1016/s1003-6326(07)60265-9

[12] B.D. Cullity, Elements of X-ray Diffraction. Addison-Wesly Publishing Co. Inc. (1976).

[13] Suryanarayana, G. Norton, X-ray diffraction a practical approach, Plenum press, New York (1998).
