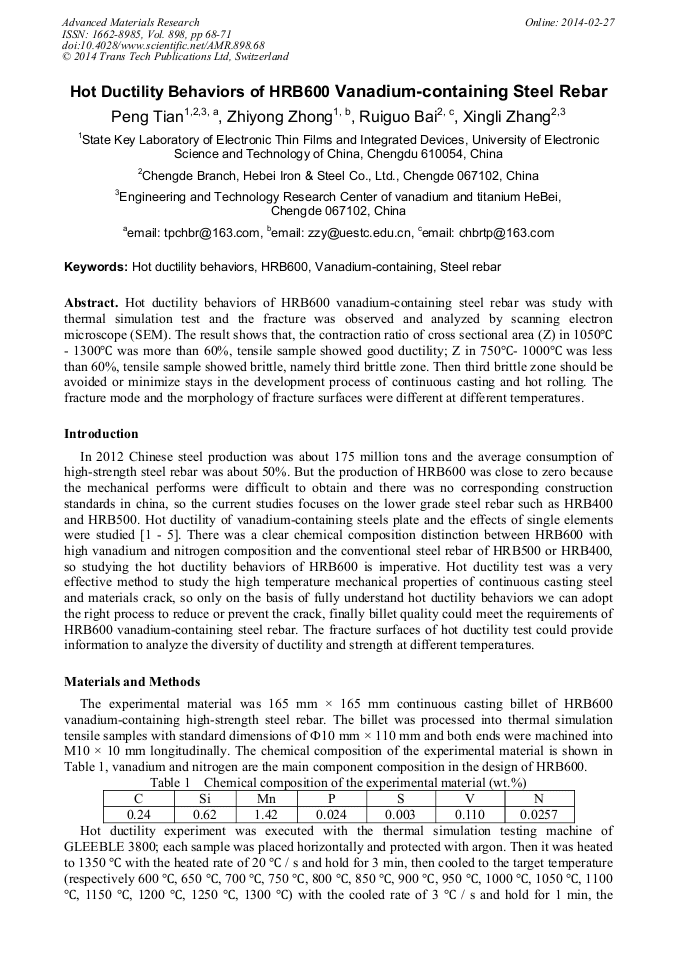

Hot Ductility Behaviors of HRB600 Vanadium-Containing Steel Rebar

Abstract:

Hot ductility behaviors of HRB600 vanadium-containing steel rebar was study with thermal simulation test and the fracture was observed and analyzed by scanning electron microscope (SEM). The result shows that, the contraction ratio of cross sectional area (Z) in 1050°C - 1300°C was more than 60%, tensile sample showed good ductility; Z in 750°C-1000°C was less than 60%, tensile sample showed brittle, namely third brittle zone. Then third brittle zone should be avoided or minimize stays in the development process of continuous casting and hot rolling. The fracture mode and the morphology of fracture surfaces were different at different temperatures.

• Periodical: Advanced Materials Research (Volume 898)
• Pages: 68-71
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.898.68
• Online since: February 2014
• Authors: Peng Tian*, Zhi Yong Zhong, Rui Guo Bai, Xing Li Zhang
• Keywords: Hot Ductility Behaviors, HRB600, Steel Rebar, Vanadium-Containing

References

[1] Z. Mohamed: Materials Science and Engineering: A, Vol. 326(2002) No. 2: p.255.

[2] B. Mintz, R. Abushosha: Ironmaking and Steelmaking, Vol. 20 (1993): p.445.

[3] R. Abushosha, R. Vipond, B. Mintz: Materials Science and Technology, Vol. 7(1991) No. 7: p.613.

[4] B. Mintz, Z. Mohamed, R. Abu-shosha: Materials Science and Technology, Vol. 5(1989) No. 7: p.682.

[5] D. N. Crowther, B. Mintz: Materials Science and Technology, Vol. 2(1986) No. 7: p.671.

[6] H.G. Suzuki, S. Nishimura: Transactions of the Iron and Steel Institute of Japan, Vol. 22(1982) No. 1: p.48.

[7] D. N. Crowther, B. Mintz: Materials Science and Technology, Vol. 2(1986) No. 9: p.951.

[8] Ahmad Rezaeian, Faramarz Zarandi, Steve Yue: Metallurgical and Materials Transactions A, Vol. 39(2008), No. 11: p.2635.
