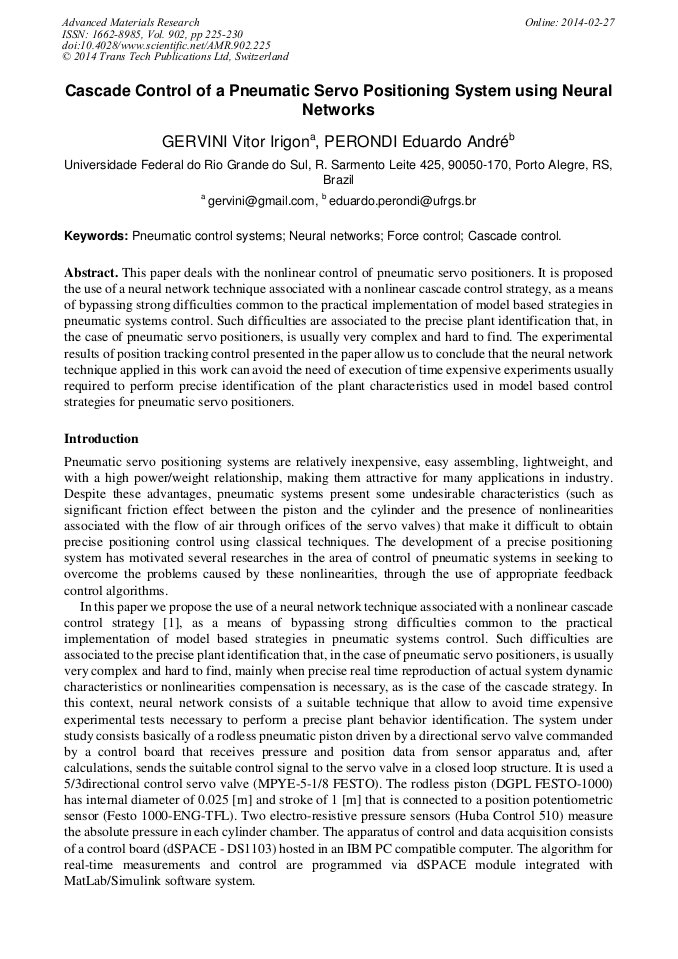

Cascade Control of a Pneumatic Servo Positioning System Using Neural Networks

Abstract:

This paper deals with the nonlinear control of pneumatic servo positioners. It is proposed the use of a neural network technique associated with a nonlinear cascade control strategy, as a means of bypassing strong difficulties common to the practical implementation of model based strategies in pneumatic systems control. Such difficulties are associated to the precise plant identification that, in the case of pneumatic servo positioners, is usually very complex and hard to find. The experimental results of position tracking control presented in the paper allow us to conclude that the neural network technique applied in this work can avoid the need of execution of time expensive experiments usually required to perform precise identification of the plant characteristics used in model based control strategies for pneumatic servo positioners.

• Periodical: Advanced Materials Research (Volume 902)
• Pages: 225-230
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.902.225
• Online since: February 2014
• Authors: Vitor Irigon Gervini, Eduardo André Perondi
• Keywords: Cascade Control, Force Control, Neural Network (NN), Pneumatic Control Systems

References

[1] Guenther, R.; Perondi, E.A., DePieri, E.R., Valdiero, A.C.: Cascade controlled pneumatic positioning system with LuGre model based friction compensation. J. Braz. Soc. Mech. Sci. & Eng., Vol. 28, n. 1, pp.48-57 (2006).

DOI: 10.1590/s1678-58782006000100006

[2] Virvalo, T., Modeling and Design of a Pneumatic Position Servo System Realized with Commercial Components. PhD Thesis, Tampere, Finland (1995).

[3] Utkin, V. I.: Discontinuous Control Systems: State of Art in Theory and Applications, IFAC World Congress on Automatic Control. Preprints, Vol. 1, pp.75-94 (1987).

[4] Slotine, J-J.E. and Li, W.: Adaptive Manipulator Control: A Case Study, IEEE Transactions on Automatic Control, Vol. 33, n. 11, pp.995-1003 (1988).

DOI: 10.1109/9.14411

[5] Haykin, S.: Neural Networks: A Comprehensive Foundation, 2nd edition, Prentice-Hall (1999).

[6] Hornik, K.: Multilayer Feedforward Networks are Universal Approximators, Neural Networks, Vol. 2, n. 5, p.359–366 (1989).

DOI: 10.1016/0893-6080(89)90020-8

[7] J.F. Carneiro, F.G. de Almeida: A Neural Network Based Nonlinear Model of a Servopneumatic System, J. Dyn. Sys., Meas. and Control. 134(2): 024502-024502-8 (2011).

[8] Carneiro, J.F., Almeida, F.G.: A high-accuracy trajectory following controller for pneumatic devices, The Int. Journal of Advanced Manufacturing Technology, Vol. 61, pp.253-267 (2012).

DOI: 10.1007/s00170-011-3695-6
