Effect of Substrate Temperature on Structural and Optical Properties of Un-Doped Diamond Thin Film

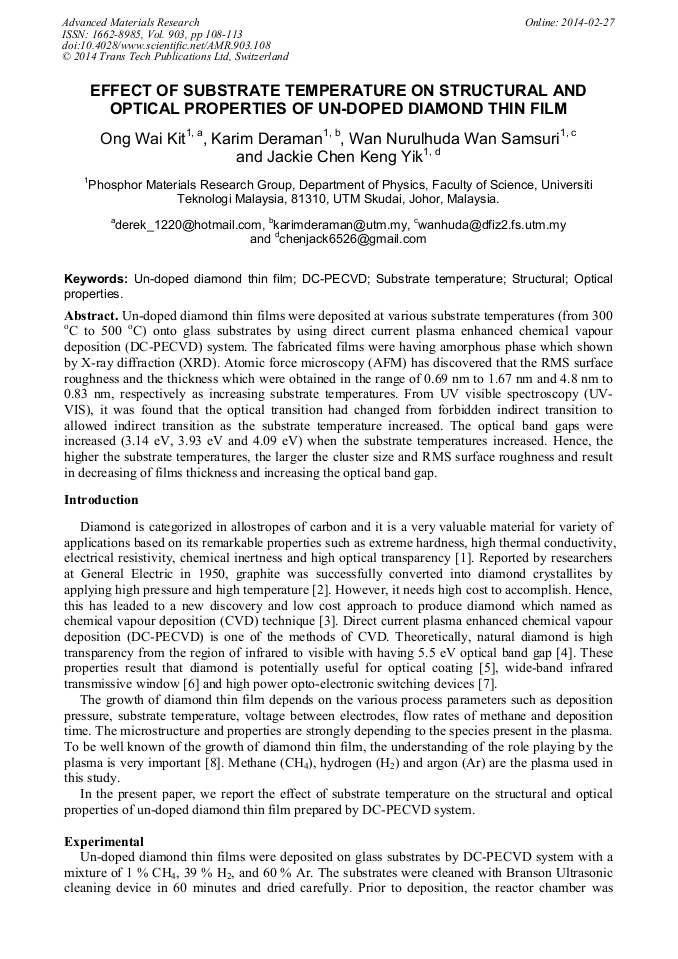

Article Preview

Abstract:

Un-doped diamond thin films were deposited at various substrate temperatures (from 300 °C to 500 °C) onto glass substrates by using direct current plasma enhanced chemical vapour deposition (DC-PECVD) system. The fabricated films were having amorphous phase which shown by X-ray diffraction (XRD). Atomic force microscopy (AFM) has discovered that the RMS surface roughness and the thickness which were obtained in the range of 0.69 nm to 1.67 nm and 4.8 nm to 0.83 nm, respectively as increasing substrate temperatures. From UV visible spectroscopy (UV-VIS), it was found that the optical transition had changed from forbidden indirect transition to allowed indirect transition as the substrate temperature increased. The optical band gaps were increased (3.14 eV, 3.93 eV and 4.09 eV) when the substrate temperatures increased. Hence, the higher the substrate temperatures, the larger the cluster size and RMS surface roughness and result in decreasing of films thickness and increasing the optical band gap.

You might also be interested in these eBooks

Manufacturing Engineering

Info:

Periodical:

Advanced Materials Research (Volume 903)

Pages:

108-113

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.903.108

Citation:

Cite this paper

Online since:

February 2014

Authors:

Ong Wai Kit*, Karim bin Deraman, Wan Nurulhuda Wan Shamsuri, Jackie Chen Keng Yik

Keywords:

DC-PECVD, Optical Property, Structural, Substrate Temperature, UN-Doped Diamond Thin Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] R.J. WEDLAKE, in Properties of diamond, edited by J.E. Field (Academic Press, London).

[2] F.P. BUNDY, H.T. HALL, H.M. STRONG and R.H. WENTORF, Nature 176 (1995) 51.

[3] R.C. DE VERIS, General Electric Corporate Research and Development Technical Report (1987).

[4] Z. Yin, Z. Akkerman, B.X. Yang and F.W. Smith, Optical Properties and Microstructure of CVD Diamond Films, Diamond and Related Materials 6 (1997) 153-158.

DOI: 10.1016/s0925-9635(96)00740-6

[5] M. Seal and W.J.P. Van Enckevort, Diamond Optics, 969 (1988) 144-152.

[6] M. Seal, Phil, Trans. Roy. Soc. Ser. A (Phys. Sci. Eng), 342 (1993) 313-322.

[7] D.G.K. Jeng, H.S. Tuan, R.F. Slat and G. J Fricano, in R. Messier, J.T. Glass, J.E. Butler and R. Roy (eds), Pro. of 2nd Int. Conf. New Diamond Science and Technology, Materials Research Society, Pittsburgh, PA, 1991, pp.963-968.

[8] H.C. Barshilia, B.R. Mehta and V.D. Vankar, Growth of diamond thin films by microwave plasma chemical vapor deposition process, Journal of Material Research (1995).

DOI: 10.1557/jmr.1996.0127

[9] Information on http: /en. wikipedia. org/wiki/Amorphous_solid.

[10] Lifshitz, Y. Lempert, G.D. Grossman, E. Avigal, I. Uzan-Saguy, C. Kalish, R. Kulik, J. Marton, and Rabalais, Growth of Mechanisms of Dlc Films From C+ Ions: Experiments, Diamond and Related Materials, 4, (1995) 318-323.

DOI: 10.1016/0925-9635(94)05205-0

[11] Aliff Rohaizad, Bakar Ismail, Bibi Aishah, N.A. Syaqilah Aziz, R. Hussin, N.E. Ahmad, I.H. Hashim, Nurul Huda Abu Bakar, Karim Deraman, W. Nurulhuda W. Shamsuri and Zuhairi Ibrahim, Surface Roughness and Infrared Study of Diamond Like Carbon Thin Films, UMTAS, (2011).

[12] Ladwig, A.M. Koch, R.D. Wenski and Hicks, RF Atmospheric Plasma Deposition of Diamond Loke Carbon Coatings, Diamond And Related Materials, 18, (2009) 1129-1133.

DOI: 10.1016/j.diamond.2009.02.026

[13] Aryal, H. R, Adhikari, S. Ghimire, D.C. kalita and Umeno, Preparation of Diamond Like Carbon Thin Films Above Room Temperature and Their Properties, Diamond And Related Materials, 17, (2008) 680-683.

DOI: 10.1016/j.diamond.2007.10.007

[14] S. Tshomo, B. Ismail, R. Hussin, M.N. Md. Yusuf, W.N. Wan. Shamsuri, K. Deraman, S. Sholehah Hussien, A.K. Mohsin, Oprical Properties of Diamond Like Carbon Films Prepared by DC-PECVD, Journal of Fundamental Sciences Vol. 6, No. 1 (2010) 9-14.

DOI: 10.11113/mjfas.v8n2.129

[15] Tauc, Optical Properties of Solids, Abeles, F., Editors, North-Holland, Amsterdam, (1970).

[16] Satoshi Koizumi, Kenji Watanabe, Masataka Hasegawa and Hisao Kanda, Ultraviolet Emission from A Diamond Pn Junction, (2001).

DOI: 10.1126/science.1060258

[17] Robertson, Diamond and Related Materials, 12(2003)79-84.
