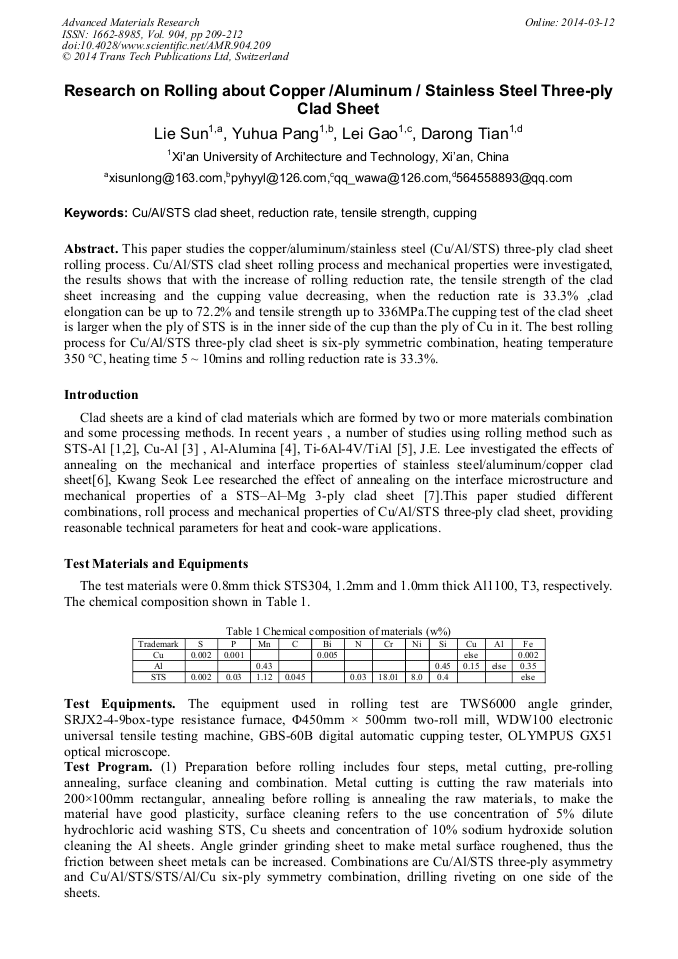

Research on Rolling about Copper/Aluminum/Stainless Steel Three-Ply Clad Sheet

Abstract:

This paper studies the copper/aluminum/stainless steel (Cu/Al/STS) three-ply clad sheet rolling process. Cu/Al/STS clad sheet rolling process and mechanical properties were investigated , the results shows that with the increase of rolling reduction rate, the tensile strength of the clad sheet increasing and the cupping value decreasing, when the reduction rate is 33.3% ,clad elongation can be up to 72.2% and tensile strength up to 336MPa.The cupping test of the clad sheet is larger when the ply of STS is in the inner side of the cup than the ply of Cu in it. The best rolling process for Cu/Al/STS three-ply clad sheet is six-ply symmetric combination, heating temperature 350 ° C, heating time 5 ~ 10mins and rolling reduction rate is 33.3%.

• Periodical: Advanced Materials Research (Volume 904)
• Pages: 209-212
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.904.209
• Online since: March 2014
• Authors: Lie Sun, Yu Hua Pang, Lei Gao*, Da Rong Tian
• Keywords: Cu/Al/STS Clad Sheet, Cupping, Reduction Rate, Tensile Strength

References

[1] Wang Qiang. Studies on Properties and Process Optimization of Stainless Steel/ Aluminum/ Stainless Steel Laminated Sheet [D]. Taiyuan University of Technology, (2011).

[2] Ji Xiaopeng. FEM simulation of Hot-rolling Process for Multi-ply Stainless steel/Aluminum (aluminum alloy) Plates [D]. Xi'an University of Architecture and Technology, (2008).

[3] M. Eizadjou, A. Kazemi Talachi, H. Danesh Manesh, H. Shakur Shahabi, K. Jangorban. Investigation of structure and mechanical properties of multi-plyed Al/Cu clad produced by accumulative roll bonding (ARB) process [J]. clads Science and Technology, 2008, 68: 2003-(2009).

DOI: 10.1016/j.compscitech.2008.02.029

[4] Roohollah Jamaati, Mohammad Reza Toroghinejad. Manufaturing of high-strength aluminum/alumina clad by accumulative roll bonding [J]. Material Science and Engineering A, 2010, 527: 4146-4151.

DOI: 10.1016/j.msea.2010.03.070

[5] Fantao Kong, Yuyong Chen, Deliang Zhang. Interfacial microstructure and shear strength of Ti-6Al-4V/TiAl laminate clad sheet fabricated by hot packed rolling [J]. Materials and Design, 2011, 32: 3167-3172.

DOI: 10.1016/j.matdes.2011.02.052

[6] J. E. Lee, D. H. Bae, W. S. Chung, K. H. Kim, J. H. Lee, Y. R. Cho. Effects of annealing on the mechanical and interface properties of stainless steel/aluminum/copper clad-metal sheets [J]. Materials Processing Technology, 2007, 187: 546-549.

DOI: 10.1016/j.jmatprotec.2006.11.121

[7] Kwang Seok Lee, Dong Hyun Yoon, Hye Kyoung Kim, Yong-Nam Kwon, Young-Seon Lee. Effect of annealing on the interface microstructure and mechanical properties of a STS–Al–Mg 3-ply clad sheet [J]. Materials Science & Engineering A, 2012, 556: 319-330.

DOI: 10.1016/j.msea.2012.06.094
