Influence of Predeformation Temperature on Recovery Performance of Ni47Ti44Nb9 Alloy Φ16mm Pipe Joint

Gui Fa Li; Shi Qiang Lu; Ke Lu Wang; Jun Wei Liu; Er Min Wang

doi:10.4028/www.scientific.net/AMR.904.41

Paper Titles

Preparation and Microstructural Properties of Gallium Doped Zinc Oxide Thin Films for Organic Solar Cells
p.25

Influence of SiH₄ Flow Rate on GaN Films with In Situ SiNx Mask on Sapphire Surface
p.29

Synthesis of CaAlSiN₃:Eu²⁺ Phosphor via the Self-Propagating High Temperature Synthesis Method and its Optical Properties
p.33

Investigation on Finite Element Simulation of ECAE with Variable Back Pressure for 7075 Aluminum Alloy
p.36

Influence of Predeformation Temperature on Recovery Performance of Ni₄₇Ti₄₄Nb₉ Alloy Φ16mm Pipe Joint
p.41

Study on the Effect of Calender on Coating surface structure and Printability of Coated Paper
p.46

Effect Sedimentation of TiB₂ Particles on the Microstructure of 7075 Al Alloy
p.50

The Drug Loading Kinetics Mechanism of Ion Exchange Fiber as a Novel Kind of Drug Carrier Material
p.54

Characterizing the Influence of Drying on Ink Absorption Using Reconstructed Images by Laser Scanning Confocal Microscopy
p.59

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 904Influence of Predeformation Temperature on...

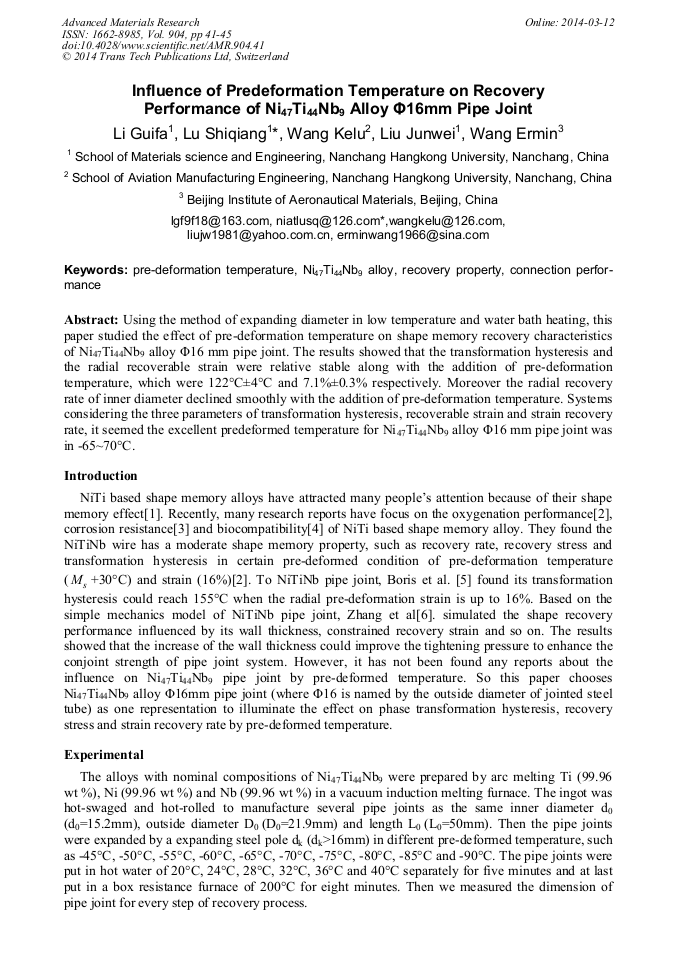

Influence of Predeformation Temperature on Recovery Performance of Ni₄₇Ti₄₄Nb₉ Alloy Φ16mm Pipe Joint

Abstract:

Using the method of expanding diameter in low temperature and water bath heating, this paper studied the effect of pre-deformation temperature on shape memory recovery characteristics of Ni₄₇Ti₄₄Nb₉ alloy Φ16 mm pipe joint. The results showed that the transformation hysteresis and the radial recoverable strain were relative stable along with the addition of pre-deformation temperature, which were 122°C±4°C and 7.1%±0.3% respectively. Moreover the radial recovery rate of inner diameter declined smoothly with the addition of pre-deformation temperature. Systems considering the three parameters of transformation hysteresis, recoverable strain and strain recovery rate, it seemed the excellent predeformed temperature for Ni₄₇Ti₄₄Nb₉ alloy Φ16 mm pipe joint was in-65~-70°C.
