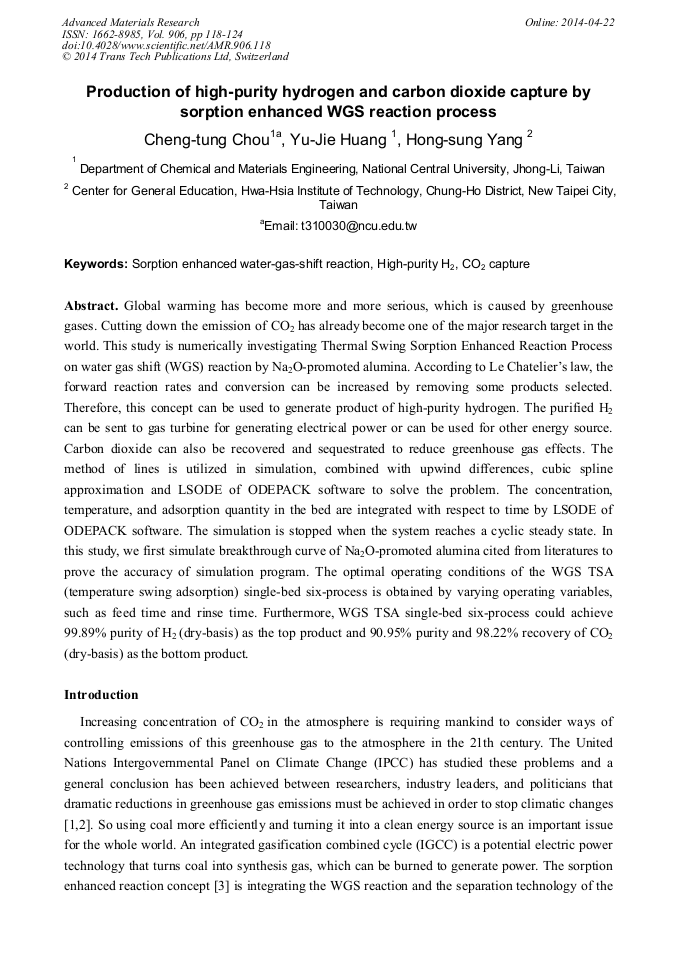

Production of High-Purity Hydrogen and Carbon Dioxide Capture by Sorption Enhanced WGS Reaction Process

Abstract:

Global warming has become more and more serious, which is caused by greenhouse gases. Cutting down the emission of CO₂ has already become one of the major research target in the world. This study is numerically investigating Thermal Swing Sorption Enhanced Reaction Process on water gas shift (WGS) reaction by Na₂O-promoted alumina. According to Le Chateliers law, the forward reaction rates and conversion can be increased by removing some products selected. Therefore, this concept can be used to generate product of high-purity hydrogen. The purified H₂ can be sent to gas turbine for generating electrical power or can be used for other energy source. Carbon dioxide can also be recovered and sequestrated to reduce greenhouse gas effects. The method of lines is utilized in simulation, combined with upwind differences, cubic spline approximation and LSODE of ODEPACK software to solve the problem. The concentration, temperature, and adsorption quantity in the bed are integrated with respect to time by LSODE of ODEPACK software. The simulation is stopped when the system reaches a cyclic steady state. In this study, we first simulate breakthrough curve of Na₂O-promoted alumina cited from literatures to prove the accuracy of simulation program. The optimal operating conditions of the WGS TSA (temperature swing adsorption) single-bed six-process is obtained by varying operating variables, such as feed time and rinse time. Furthermore, WGS TSA single-bed six-process could achieve 99.89% purity of H₂ (dry-basis) as the top product and 90.95% purity and 98.22% recovery of CO₂ (dry-basis) as the bottom product.

• Periodical: Advanced Materials Research (Volume 906)
• Pages: 118-124
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.906.118
• Online since: April 2014
• Authors: Cheng Tung Chou*, Yu Jie Huang, Hong Sung Yang
• Keywords: CO₂ Capture, High-Purity H₂, Sorption Enhanced Water-Gas-Shift Reaction

References

[1] M.R.M. Abu-Zahra, P.H.M. Feron, P.J. Jansens, E.L.V. Goetheer, New Process Concepts for CO2 Post-Combustion Capture Process Integrated With Co-Production of Hydrogen, Int. J. Hydrogen Energy, 34 (2009) 3992-4004.

DOI: 10.1016/j.ijhydene.2009.02.056

[2] IPCC (Intergovernmental　Panel on Climate Change), Carbon Dioxide Capture and Storage, Cambridge University Press (2005).

[3] H.M. Jang, K.B. Lee, H.S. Caram, S. Sircar, High-purity hydrogen production through sorption enhanced water gas shift reaction using K2CO3-promoted hydrotalcite, J. Chem. Eng., 73 (2012) 431–438.

DOI: 10.1016/j.ces.2012.02.015

[4] NETL (The United States Department of Energy, National Energy Technology Laboratory), 2009, Evaluation of Alternate Water Gas Shift Configurations for IGCC Systems, DOE/NETL-401/080509.

DOI: 10.2172/1173293

[5] K.B. Lee, M.G. Beaver, H.S. Caram, S. Sircar, Effect of Reaction Temperature on the Performance of Thermal Swing Sorption-Enhanced Reaction Process for Simultaneous Production of Fuel-Cell-Grade H2 and Compressed CO2 from Synthesis Gas, Ind. Eng. Chem. Res., 47 (2008).

DOI: 10.1021/ie071372k

[6] M.G. Beaver, H.S. Caram, S. Sircar, Selction of CO2 Chemisorbent for Fuel-Cell Grade H2 Production by Sorption-Enhanced Water Gas Shift Reaction, Int. J. Hydrogen Energy, 34 (2009) 2972-2978.

DOI: 10.1016/j.ijhydene.2009.01.065

[7] K.B. Lee, M.G. Beaver, H.S. Caram, S. Sircar, Chemisorption of Carbon Dioxide on Sodium Oxide Promoted Alumina, AIChE J., 53 (2007) 2824-2831.

DOI: 10.1002/aic.11312
