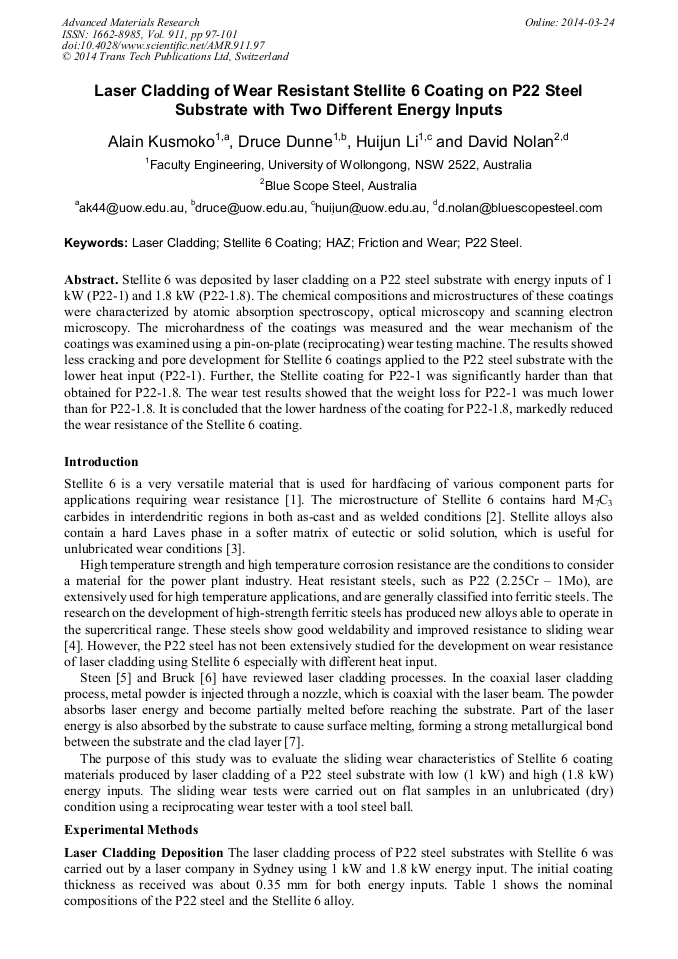

Laser Cladding of Wear Resistant Stellite 6 Coating on P22 Steel Substrate with Two Different Energy Inputs

Abstract:

Stellite 6 was deposited by laser cladding on a P22 steel substrate with energy inputs of 1 kW (P22-1) and 1.8 kW (P22-1.8). The chemical compositions and microstructures of these coatings were characterized by atomic absorption spectroscopy, optical microscopy and scanning electron microscopy. The microhardness of the coatings was measured and the wear mechanism of the coatings was examined using a pin-on-plate (reciprocating) wear testing machine. The results showed less cracking and pore development for Stellite 6 coatings applied to the P22 steel substrate with the lower heat input (P22-1). Further, the Stellite coating for P22-1 was significantly harder than that obtained for P22-1.8. The wear test results showed that the weight loss for P22-1 was much lower than for P22-1.8. It is concluded that the lower hardness of the coating for P22-1.8, markedly reduced the wear resistance of the Stellite 6 coating.

• Periodical: Advanced Materials Research (Volume 911)
• Pages: 97-101
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.911.97
• Online since: March 2014
• Authors: Alain Kusmoko*, Druce Dunne, Hui Jun Li, David Nolan
• Keywords: Friction, HAZ, Laser Cladding, P22 Steel, Stellite 6 Coating, Wear

References

[1] Cobalt-Base Rods, Electrodes and Wires (W-207), Stellite Wear Technology, Cabot Corporation, Kokomo, Indiana (1982).

[2] Tribology Wear Resistance Intermettalic Materials (W-152), Wear Technology Division, Cabot Corporation, Kokomo, Indiana (1980).

[3] Tribology T-900 Technical Data, Stellite Coating Division, Deloro Stellite Company, Goshen, Indiana (2002).

[4] A. Polar, Electromagnetic Detection and Monitoring of Creep Induced Damage in High Temperature Resistant Steels, PhD Thesis, The University of Illionis (2009).

[5] W.M. Steen, The Industrial Laser Annual Handbook, in: D. Belforte, M. Levitt (Eds. ), Laser in Surface Engineering, SPIE, Pennwell, Tulsa, OK (1986), pp.158-174.

[6] G.J. Bruck: JOM Vol. 39 (1987), pp.10-23.

[7] P.J.E. Monson and W.M. Steen: Surf. Eng Vol. 6 (1990), p.185.

[8] A. Kusmoko, Dry Sliding Wear Behaviour of Induction Hardened 4140 and Carburised 8617H Steels on 1040 Steel, MSc Thesis, The University of New South Wales (2000).

DOI: 10.4028/www.scientific.net/msf.773-774.851

[9] XW. Qiu, YP. Zhang and CG. Liu: Rare Metal Materials and Engineering Vol. 41 (2012), pp.182-185.

[10] R. Vilar: Journal of Laser Applications Vol. 11 (1999), pp.64-79.

[11] Ming-Chang. Jeng, Li-Yung. Yan and Ji-Liang. Doong: Surface and Coatings Technology Vol. 48 (1991), p.225 – 231.

[12] A. Yakovlev, Ph. Bertrand and I. Smurov: submitted to Journal of Thin Solid Films (2003).
