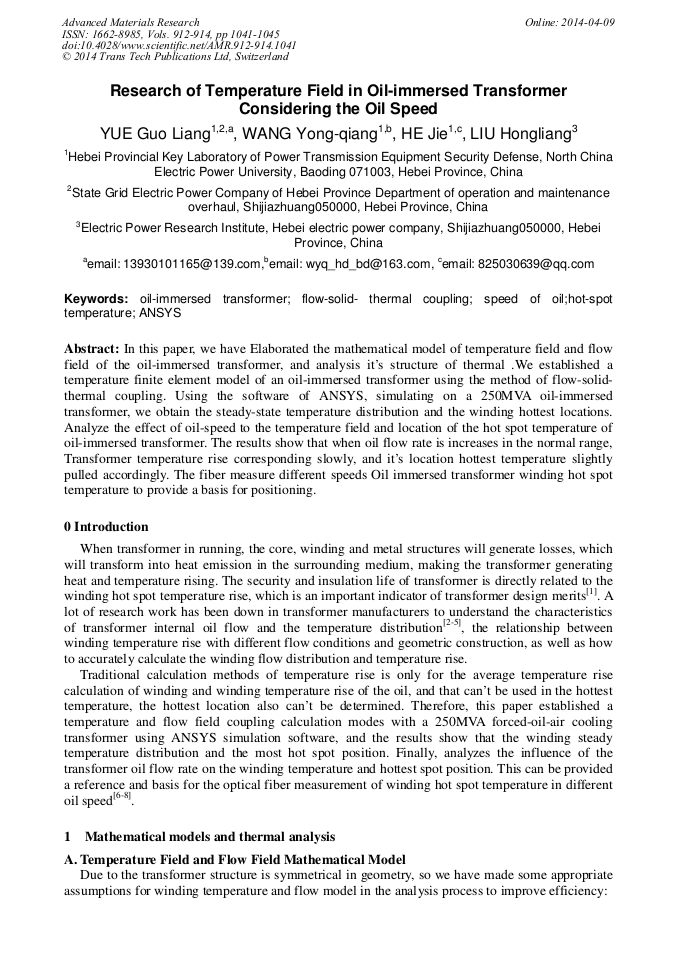

Research of Temperature Field in Oil-Immersed Transformer Considering the Oil Speed

Abstract:

In this paper, we have Elaborated the mathematical model of temperature field and flow field of the oil-immersed transformer, and analysis its structure of thermal .We established a temperature finite element model of an oil-immersed transformer using the method of flow-solid-thermal coupling. Using the software of ANSYS, simulating on a 250MVA oil-immersed transformer, we obtain the steady-state temperature distribution and the winding hottest locations. Analyze the effect of oil-speed to the temperature field and location of the hot spot temperature of oil-immersed transformer. The results show that when oil flow rate is increases in the normal range, Transformer temperature rise corresponding slowly, and its location hottest temperature slightly pulled accordingly. The fiber measure different speeds Oil immersed transformer winding hot spot temperature to provide a basis for positioning.

• Periodical: Advanced Materials Research (Volumes 912-914)
• Pages: 1041-1045
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.912-914.1041
• Online since: April 2014
• Authors: Guo Liang Yue*, Yong Qiang Wang, Jie He, Hong Liang Liu
• Keywords: ANSYS, Flow-Solid-Thermal Coupling, Hot-Spot Temperature, Oil-Immersed Transformer, Speed of Oil

References

[1] GB/T 15164-1994 Loading Guide for Oil-immersed Power Transformer[S]．(1994).

[2] CHEN Weigen, SU Xiaoping, SUN Caixin, PAN Chong, et al．Temperature distribution calculation based on FVM for oil-immersed power transformer windings[J]．Electric Power Automation Equipment, 2011, 31(6): 23-27.

[3] CHEN Weigen, XI Hongjuan, SUN Xiaoping, LIU Wen．Application of Generalized Regression Neural Network to Transformer Winding Hot Spot Temperature Forecasing[J]．High Voltage Engineering, 2012, 38(1): 16-21.

[4] WANG Mingqian, JIANG Liquan, XIAO Quan．Measurement Error Analysis of Load Loss of Large Transformer[J]．TRANSFORMER, 2004, 41(1): 21-25.

[5] CHEN Weigen, ZHAO Tao, JIANG Taosha, SUN Caixin．Improved Method for Calculation of Hot-spot Temperature in Power Transformer[J]．High Voltage Apparatus, 2009, 45(1): 53-56.

[6] ZHU Hengxuan．Prediction of Hottest Spot Temperature and Temperature Measurement with Optical Fiber in Oil-immersed Transformer Windings[D]．Heibei, Heibei University of Technology, (2010).

[7] WANG Jianmin, JING Chongyou, ZHANG Wenfeng, FAN Yana．Engineering Research on 3D Eddy Current Field and Stray Loss of Structural Parts in Large Transformer[J]．2012, 49(2): 28-32.

[8] SU Xiaoping．Investigation into the Calculation Modes and Prediction Method of Hot-spot Temperature for Oil-immersed Transformers[D]．Chongqing, Chongqing University, (2012).

[9] HAN Peng．The Calculation Research of Temperature Field of Large Natural Oil Circulation Power Transformer With Oriented[D]．Heibei: Hebei University of Technology, (2005).

[10] Pierce L W．An Investigation of the Thermal Performance of an Oil filled Transformer Winding[J]．IEEE Transactions on Power Delivery, 1992, 7(3): 1347-1358.

DOI: 10.1109/61.141852

[11] AMOIRALIS E I, TSILI M A, KLADAS A．Transformer Design and Optimization: A Literature Survey[J]．IEEE Transformer on Power Delivery, 2009, 24(4): 999-(2024).

DOI: 10.1109/tpwrd.2009.2028763

[12] JIANG Taosha, LI Jian, CHEN Weigen, SUN Caixin, et al．Thermal Model for Hot Spot Temperature Calculation in Oil-immersed Transformer[J]．High Voltage Engineering, 2009, 35(7): 1635-1640.

DOI: 10.1109/cmd.2008.4580452
