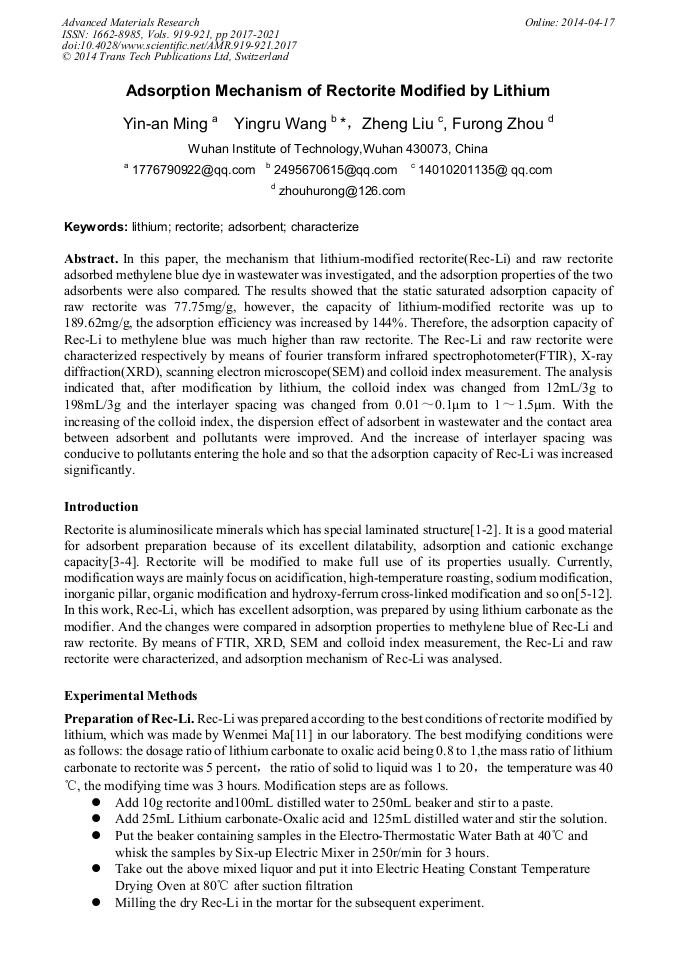

Adsorption Mechanism of Rectorite Modified by Lithium

Abstract:

In this paper, the mechanism that lithium-modified rectorite (Rec-Li) and raw rectorite adsorbed methylene blue dye in wastewater was investigated, and the adsorption properties of the two adsorbents were also compared. The results showed that the static saturated adsorption capacity of raw rectorite was 77.75mg/g, however, the capacity of lithium-modified rectorite was up to 189.62mg/g, the adsorption efficiency was increased by 144%. Therefore, the adsorption capacity of Rec-Li to methylene blue was much higher than raw rectorite. The Rec-Li and raw rectorite were characterized respectively by means of fourier transform infrared spectrophotometer (FTIR), X-ray diffraction (XRD), scanning electron microscope (SEM) and colloid index measurement. The analysis indicated that, after modification by lithium, the colloid index was changed from 12mL/3g to 198mL/3g and the interlayer spacing was changed from 0.01~0.1μm to 1~1.5μm. With the increasing of the colloid index, the dispersion effect of adsorbent in wastewater and the contact area between adsorbent and pollutants were improved. And the increase of interlayer spacing was conducive to pollutants entering the hole and so that the adsorption capacity of Rec-Li was increased significantly.

• Periodical: Advanced Materials Research (Volumes 919-921)
• Pages: 2017-2021
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.919-921.2017
• Online since: April 2014
• Authors: Yin An Ming, Ying Ru Wang*, Zheng Liu, Fu Rong Zhou
• Keywords: Adsorbent, Characterize, Lithium, Rectorite

References

[1] Baily S W. Amer Mineral, Vol. 61(1982), p.394.

[2] Rongying Zhang, Fangqi Wu, Daihong Zhang. Acta Mineralogica Sinica, Vol. 7-2(1987), p.113.

[3] Li Han, Yong Peng, Shu-en Hou. Multipurpose Utilization of Mineral Resources, Vol. 20-4(2003), pp.20-22. In Chinese.

[4] Jimei Chen. Mineralogy And Petrology , Vol. 12-1(1992), pp.96-101.

[5] Jingjie Guan, Enze Min and Zhiqing Yu. US Patent 4, 757, 040. (1988).

[6] Xiaoyan Ma, Xiaohong Qu, Qilu Zhang, et al. Polymer, Vol. 49-16(2008), pp.3590-3600.

[7] Yun Chen, Yingru Wang, Jiashou Sun. J. Wuhan Inst. Tech , Vol. 33-8(2011), pp.82-85. In Chinese.

[8] Jie Zhang, Wenxiang Hu, Zeqiang Zhang. J. Wuhan Inst. Chem. Tech, Vol. 27-2(2005), pp.35-37. In Chinese.

[9] Junfang Guan, Jishun Yu, Qi Lu. Journal of Wuhan University of Technology, Vol. 28-7(2006), pp.33-35. In Chinese.

[10] Sun Kou M R，Mendioroz S and Guijarro M I. Thermochimica Acta, Vol. 323(1998), pp.145-157.

DOI: 10.1016/s0040-6031(98)00540-1

[11] Wenmei Ma, Yingru Wang, Yin-An Ming. J. Wuhan Inst. Tech, Vol. 34-2(2012), pp.19-22. In Chinese.

[12] Yingru Wang, Ji-Kai Yuan, Yanhong Dai. J. Wuhan Inst. Tech, Vol. 34-12(2012), pp.28-31. In Chinese.

[13] Hongxi Wang. Geological Publishing House(1980).

[14] Jiashou Sun, Jinyi Chen, Maorong Chen. China Non-Metallic Mining Industry Herald, Vol. 1(2010), pp.22-26.
