Research on Mechanical Behavior of Box Girder with Corrugated Steel Webs of Cable Stayed Bridge

Abstract:

Mechanical behavior of box girder with corrugated steel webs in completion status of bridge was studied. Based on the cable stayed bridge of box girder with corrugated steel webs on Zhenshui Road in Xinmi City, finite element method (FEM) was applied to calculate and analyze vertical displacement of box girder, shearing stress of corrugated steel webs, normal stress and vertical deflection of concrete plates, longitudinal strain of box girder in completion status of bridge. The results show that vertical shearing stress of corrugated steel webs is approximately uniformly distributed along the height of box girder. Vertical deformations of corrugated steel webs play the dominant role in the whole box girder. Longitudinal strain of corrugated steel webs is smaller than that of concrete plate. Structural design method based on traditional theory that corrugated steel webs bear all the shear force is conservative. Keywords: box girder with corrugated steel webs; cable stayed bridge; deflection; stress; strain

You might also be interested in these eBooks

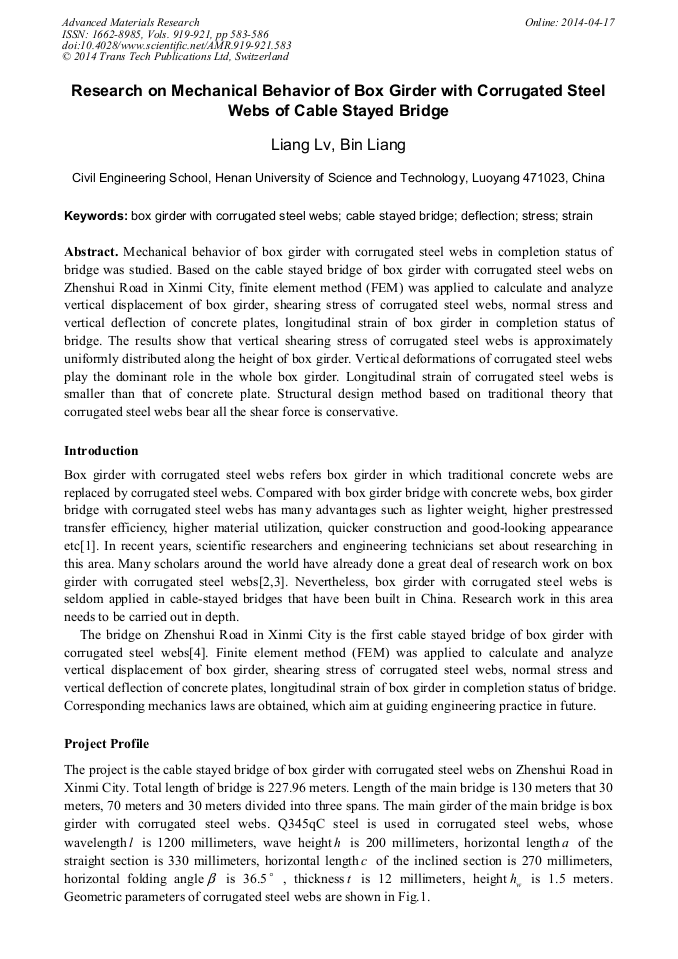

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 919-921)

Pages:

583-586

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.919-921.583

Citation:

Cite this paper

Online since:

April 2014

Authors:

Liang Lv, Bin Liang*

Keywords:

Box Girder with Corrugated Steel Webs, Cable-Stayed Bridge, Deflection, Strain, Stress

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B.C. Chen, Q.W. Huang, A summary of application of prestressed concrete box-girder bridges with corrugated steel webs, J. Highway. 7 (2005) 45-53. (in Chinese).

Google Scholar

[2] Sayed-Ahmed E Y, Plate girders with corrugated steel webs, J. Engineering Journal. 42 (2005) 1-13.

Google Scholar

[3] H.J. Li, J.S. Ye, S. Wan, Experimental research on prestressed concrete box girder with corrugated steel webs, J. China Journal of Highway and Transport. 17 (2004) 31-36. (in Chinese).

Google Scholar

[4] J.F. Wu, Design on cable-stayed bridge without backstays of PC composite box-girder with corrugated steel webs, J. Highway. 2 (2011) 54-58. (in Chinese).

Google Scholar
