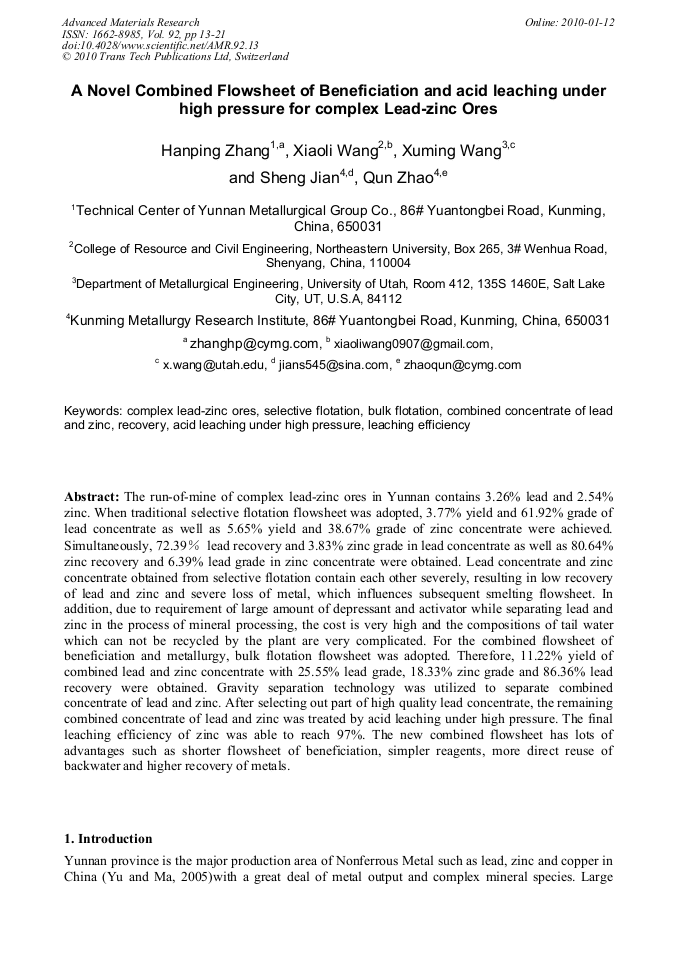

A Novel Combined Flowsheet of Beneficiation and Acid Leaching under High Pressure for Complex Lead-Zinc Ores

Abstract:

The run-of-mine of complex lead-zinc ores in Yunnan contains 3.26% lead and 2.54% zinc. When traditional selective flotation flowsheet was adopted, 3.77% yield and 61.92% grade of lead concentrate as well as 5.65% yield and 38.67% grade of zinc concentrate were achieved. Simultaneously, 72.39％ lead recovery and 3.83% zinc grade in lead concentrate as well as 80.64% zinc recovery and 6.39% lead grade in zinc concentrate were obtained. Lead concentrate and zinc concentrate obtained from selective flotation contain each other severely, resulting in low recovery of lead and zinc and severe loss of metal, which influences subsequent smelting flowsheet. In addition, due to requirement of large amount of depressant and activator while separating lead and zinc in the process of mineral processing, the cost is very high and the compositions of tail water which can not be recycled by the plant are very complicated. For the combined flowsheet of beneficiation and metallurgy, bulk flotation flowsheet was adopted. Therefore, 11.22% yield of combined lead and zinc concentrate with 25.55% lead grade, 18.33% zinc grade and 86.36% lead recovery were obtained. Gravity separation technology was utilized to separate combined concentrate of lead and zinc. After selecting out part of high quality lead concentrate, the remaining combined concentrate of lead and zinc was treated by acid leaching under high pressure. The final leaching efficiency of zinc was able to reach 97%. The new combined flowsheet has lots of advantages such as shorter flowsheet of beneficiation, simpler reagents, more direct reuse of backwater and higher recovery of metals.

• Periodical: Advanced Materials Research (Volume 92)
• Pages: 13-21
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.92.13
• Online since: January 2010
• Authors: Han Ping Zhang, Xiao Li Wang, Xu Ming Wang, Sheng Jian, Qun Zhao
• Keywords: Acid Leaching under High Pressure, Combined Concentrate of Lead and Zinc, Complex Lead-Zinc Ores, Leaching Efficiency, Recovery, Selective Flotation

References

[1] Yu L, Ma M.X. China Engineering Science Vol. 7 (2005), pp.15-18.

[2] Huang Z.Q. Nonferrous Metal of the World Vol. 7 (1996), pp.21-24.

[3] Lei T., Feng G.L. Yunnan Metallurgy Vol. 34 (2005), pp.57-60.

[4] Rao T.L. China Mining Magazine Vol. 17 (2008), pp.107-110.

[5] Xiong W.L., Tong X. Mineral Processing of Metal Mine Abroad Vol. 8 (2003), pp.9-14 Acknowledgement The research project is financially supported by Ministry of Science and Technology and Ministry of Education, P. R. China.
