Determination of Preferred Morphology of Self-Accommodating Martensite in Ti-Nb-Al Shape Memory Alloy Using Optical Microscopy

Masatoshi Ii; Masaki Tahara; Hideki Hosoda; Shuichi Miyazaki; Tomonari Inamura

doi:10.4028/www.scientific.net/AMR.922.260

Paper Titles

Preparatory Electrodeposition Process for High Purity Bulk Aluminum
p.237

Microstructure of Oxide Scale on Hot-Rolled Iron
p.242

Structural Analysis of Shape Memory Gel
p.248

Optimization of a Closed Die Forging Process to Manufacture a Gear Wheel by the Use of a Response Surface Model
p.254

Determination of Preferred Morphology of Self-Accommodating Martensite in Ti-Nb-Al Shape Memory Alloy Using Optical Microscopy
p.260

Compression of Single-Crystal Micropillars of the Γ Intermetallic Phase in the Fe-Zn System
p.264

Polymer/Metal Joining with Carbon Fibers with High Resistance to Pull-Out Induced by Huge Friction Force Generated by Extremely Broad Total Interface Area
p.270

X-Ray Residual Stress Analysis of Nickel Base Alloys
p.274

Effect of Process Parameters on Friction Surfaced Coating Dimensions
p.280

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 922Determination of Preferred Morphology of...

Determination of Preferred Morphology of Self-Accommodating Martensite in Ti-Nb-Al Shape Memory Alloy Using Optical Microscopy

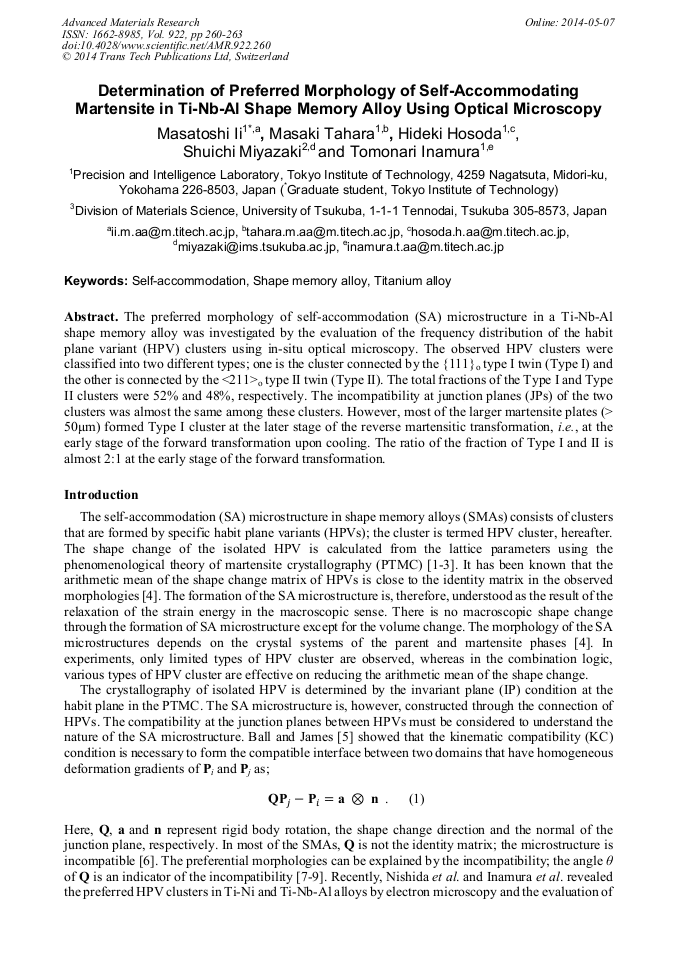

Abstract:

The preferred morphology of self-accommodation (SA) microstructure in a Ti-Nb-Al shape memory alloy was investigated by the evaluation of the frequency distribution of the habit plane variant (HPV) clusters using in-situ optical microscopy. The observed HPV clusters were classified into two different types; one is the cluster connected by the {111}_o type I twin (Type I) and the other is connected by the <211>_o type II twin (Type II). The total fractions of the Type I and Type II clusters were 52% and 48%, respectively. The incompatibility at junction planes (JPs) of the two clusters was almost the same among these clusters. However, most of the larger martensite plates (> 50μm) formed Type I cluster at the later stage of the reverse martensitic transformation, i.e., at the early stage of the forward transformation upon cooling. The ratio of the fraction of Type I and II is almost 2:1 at the early stage of the forward transformation.
