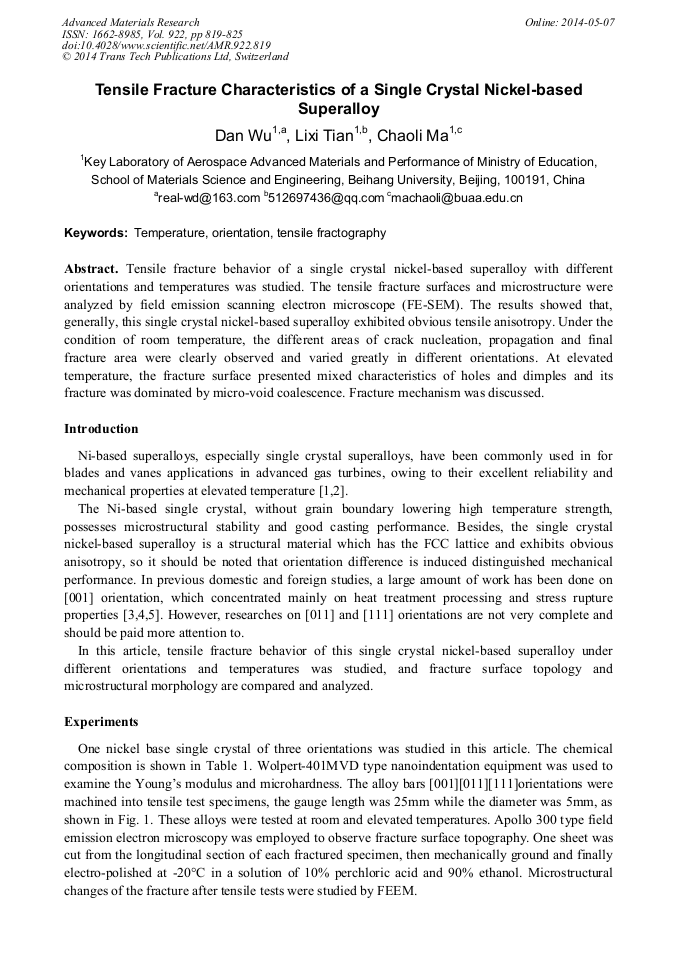

Tensile Fracture Characteristics of a Single Crystal Nickel-Based Superalloy

Abstract:

Tensile fracture behavior of a single crystal nickel-based superalloy with different orientations and temperatures was studied. The tensile fracture surfaces and microstructure were analyzed by field emission scanning electron microscope (FE-SEM). The results showed that, generally, this single crystal nickel-based superalloy exhibited obvious tensile anisotropy. Under the condition of room temperature, the different areas of crack nucleation, propagation and final fracture area were clearly observed and varied greatly in different orientations. At elevated temperature, the fracture surface presented mixed characteristics of holes and dimples and its fracture was dominated by micro-void coalescence. Fracture mechanism was discussed.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 922)

Pages:

819-825

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.922.819

Citation:

Cite this paper

Online since:

May 2014

Authors:

Dan Wu*, Li Xi Tian, Chao Li Ma

Keywords:

Orientation, Temperature, Tensile Fractography

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. Caron, T. Khan, Evolution of Ni-based Superalloys for Single Crystal Gas Turbine Blade Applications, Aerospace Science and Technology 3 (1999), 513–523.

DOI: 10.1016/s1270-9638(99)00108-x

Google Scholar

[2] B. SETH, Superalloys the Utility Gas Turbine Perspective, Superalloys, ed. T. M. Pollock, R. D. Kissnger, R. R. Bowman, et al., (Warrendale, PA: TMS, 2000), 3-16.

DOI: 10.7449/2000/superalloys_2000_3_16

Google Scholar

[3] F. Ebrahimi, J. Yanevich, and D.P. Deluca, Development and Fracture of the PWA 1472 Superalloy Single Crystal, Acta Mater, 48(2000)469-479.

DOI: 10.1016/s1359-6454(99)00355-9

Google Scholar

[4] W. W. Illigan, S. D. Antolovich, Yielding and deformation Behavior of the Single Crystal Superalloy PWA 1480, Metal Trans A, 1 (18) (1987),85-95.

DOI: 10.1007/bf02646225

Google Scholar

[5] Z. Q. Hu, L. R. Liu, T. Jin, et al., Development of Ni-based Single Crystal Superalloy, Aeroengine, 3 (31) (2005), 1-7.

Google Scholar

[6] W. W. Milligan, S. D. Antolovich, Deformation Modeling and Constitutive Modeling for Anisotropic Superalloys, (Report 4215, NASA, Lewis Research Cent, Cleveland, OH, 1989).

Google Scholar

[7] A. Itz, U. Lagerpusch, E. Nembach, CRSS Anisotropy and Tension/Compression Asymmetry of a Commercial Superalloy, Acta Mater, 13 (46) (1998), 4769-4779．

DOI: 10.1016/s1359-6454(98)00126-8

Google Scholar

[8] K. Kakehi, Effect of Plastic Anisotropy on Tensile Strength of Single Crystals of an Ni-based Superalloy., Scripta Mater, 42 (2000), 197–202.

DOI: 10.1016/s1359-6462(99)00313-9

Google Scholar

[9] William F. Smith, Javad Hashemi, Foundations of Materials Science and Engineering, (China Machine Press, 2011), 242-247.

Google Scholar

[10] J.V. Pellegrino, R. F. McCArney, Analysis of failures Asociated with Intergranular Fracture. Mecholsky, Powell ed., Fractography of Ceramic and Metal Failures,(1984)

DOI: 10.1520/stp827-eb

Google Scholar

[11] Z. P. Luo, Z. T. Wu, D. J. Miller, The Dislocation Microstructure of a Nickel-base Single-Crystal Superalloy after Tensile Fracture, Mater Sci Eng A, 1 (354) (2003),358-368.

DOI: 10.1016/s0921-5093(03)00039-x

Google Scholar
